1 Product Introduction

1.1 General Introductions

The SARAMONIC SR-PAX2 is a two-channel active audio mixer with preampliﬁer and

phantom power, specially designed for mirrorless digital camera, Blackmagic Design

pocket cinema camera and DSLR camera with a microphone jack. It is a compact and

lightweight mixer ideal for recording professional-quality audio from two sources and

mixing them into your camera. It attaches to the base of a camera, and a threaded

socket on its base allows for mounting on a tripod or case.

With two sets of inputs, the SR-PAX2 accepts signals from a wide variety of mic or line

level sources such as balanced XLR microphones, 3.5mm microphones, wireless

microphones and external audio mixers. The 3.5mm inputs are also ideal for connecting

audio devices with a 3.5mm output such as a smart phone or an MP3 player. The input

levels of each channel can be easily controlled with the dual gain control knobs. The

cold shoe on the side gives you space to mount and move other equipment. A phone

jack allows you to monitor the audio in real time. The SR-PAX2 makes your recording

work much easier.

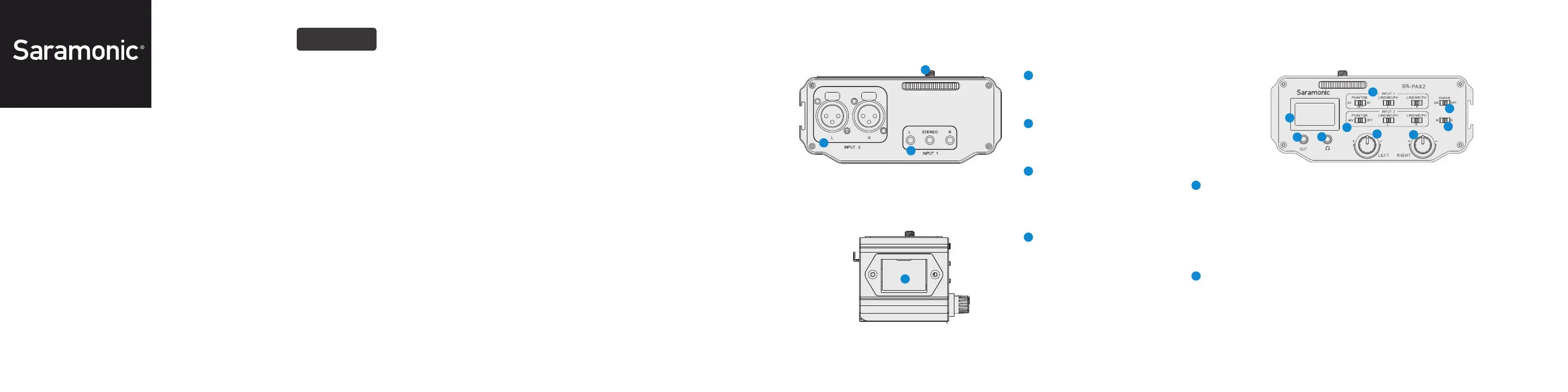

1.2 Product Structure

User Manual

SR-PAX2

INPUT 1: 3.5mm Inputs

One stereo input

LEFT and RIGHT mono inputs

INPUT 2: XLR Inputs

Balanced LEFT and RIGHT

XLR inputs

1/4” Screw Thread

INPUT 1 Switch Group

Control the 3.5mm inputs.

• LINE/MIC/PH L, select LINE or MIC or Phantom level for the left channel

• LINE/MIC/PH R, select LINE or MIC or Phantom level for the right channel

• PHANTOM 5V/OFF/3V Switch

Optional 5 volt or 3 volt phantom power for microphones that require phantom power.

INPUT 2 Switch Group

Control the XLR inputs.

• LINE/MIC/PH L, select LINE or MIC or Phantom level for the left channel

• LINE/MIC/PH R, select LINE or MIC or Phantom level for the right channel

• PHANTOM 48V/OFF Switch

Select 48 volt phantom power for XLR microphones that require phantom power.

Battery Compartment

Operates on a 9 volt battery

(not included). You could use

a lithium type battery for

longer operating time.

Audio Mixer

The SARAMONIC SR-PAX2 is a two-channel active audio mixer with

preampliﬁer and phantom power, specially designed for mirrorless

digital camera, Blackmagic Design pocket cinema camera and DSLR

camera with a microphone jack.

Produktspecifikationer

Varumärke:	Saramonic
Kategori:	blandningskonsoler
Modell:	SR-PAX2
Vikt:	385 g
Bredd:	136 mm
Djup:	80.5 mm
Höjd:	62.5 mm
Rackmontering:	Nej
Antal kanaler:	2 kanaler
Total harmonisk distorsion (THD):	0.1 %
Produktens färg:	Black, Red
Frekvensområde:	20 - 20000 hz
XLR-ingång:	Ja
Digital ljudbehandling:	- bit
