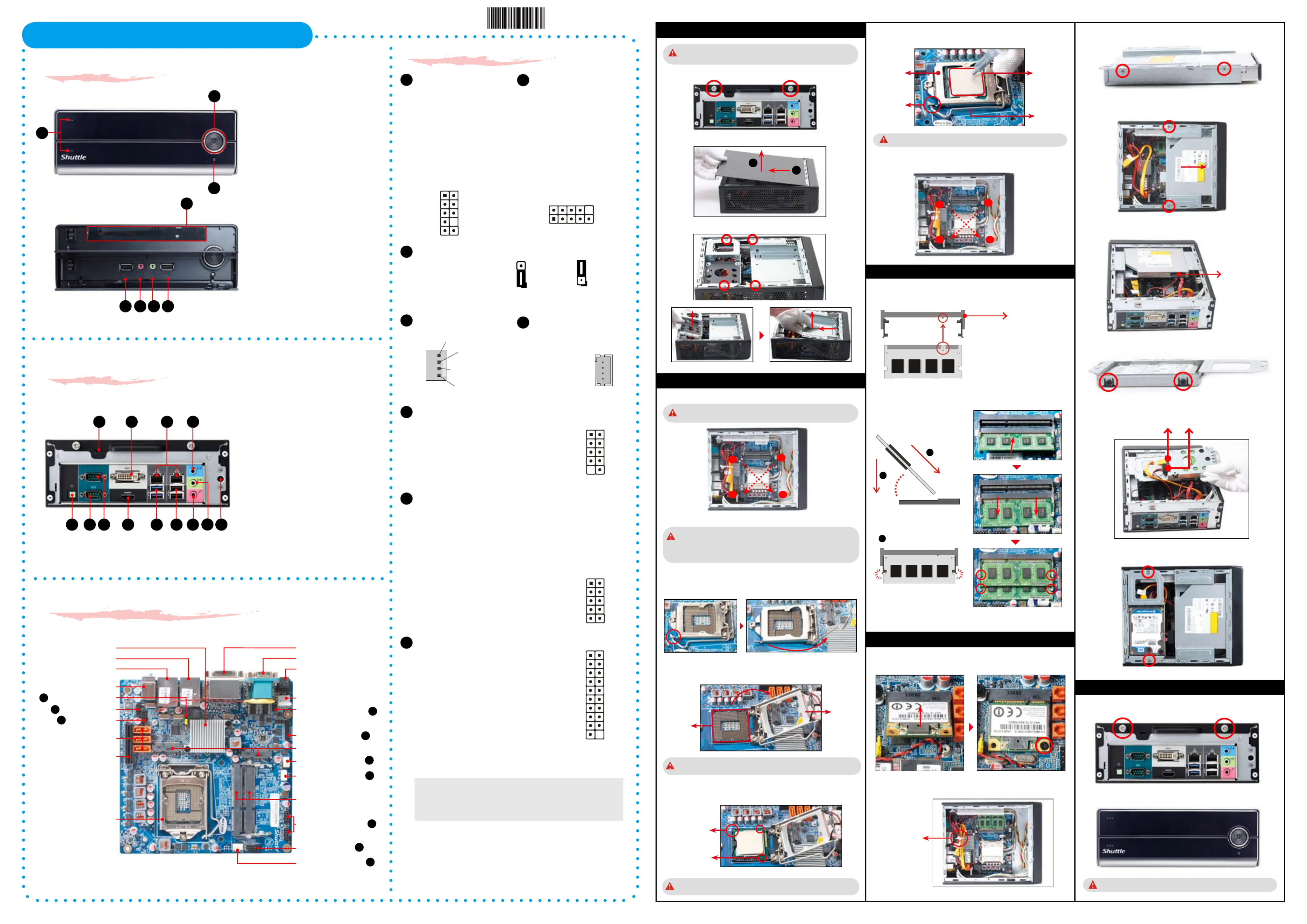

XH61V Quick Guide

【

English

】

Jumper Settings

Motherboard Illustration

C. Memory Module Installation

53R-XH61V3-2001

Front Panel

Back Panel

F1. Power Switch / Power LED

F2. HDD LED

F3. ODD and Front I/O Bay

F4. Slim ODD Bay

F5. USB2.0 Ports

F6. Mic-In

F7. Headphone

B1. S/PDIF Out Port

B2. Kensington® Lock Port

B3. COM1 Port

(RS232/RS422/RS485)

B4. COM2 Port (RS232)

B5. DVI-I Port

B6. HDMI Port

B7. LAN Ports

B8. USB3.0 Ports

B9. USB2.0 Ports

B10. Mic-In Port

B11. Line-Out Port

B12. Line-In Port

B13. DC Power Port

The product’s color and specification will depend on the actual shipping product.

Safety Information

Read the following precautions before setting up a Shuttle XPC.

Laser compliance statement

The optical disc drive in this PC is a laser product.

The drive's classication label is located on the drive.

CLASS 1 LASER PRODUCT

CAUTION INVISIBLE LASER RADIATION WHEN OPEN.：

AVOID EXPOSURE TO BEAM.

CAUTION

Incorrectly replacing the battery may damage this computer.

Replace only with the same or equivalent as recommended by Shuttle.

Dispose of used batteries according to the manufacturer's instructions.

LGA1155 Package CPU Socket

DDR3 SODIMM slots

Power Connector-JP6

USB Header-USB4

Mic-In/ Line-Out/ Line-In Ports

LAN (x1) & USB2.0 (x2) Ports

Serial ATA Connectors-SATA1,2,3

Intel H61 Chipset

COM (x2) Ports

Fan Connector-SYS_FAN

Audio Connector-JP4

DVI-I & HDMI Ports

Audio Connector

Pin Assignments (JP4):

1=MIC2_L

2=AGND

3=MIC2_R

4=FRONT-JD

5=LINE2-R

6=SENSE1_RETURN

7=FRONT_SENSE

8=KEY

9=LINE2-L

10=SENSE2_RETURN

Clear CMOS Jumper

Pin Assignments (JP10):

1=UL_BAT_PWR

2=-RTCRST

3=-RTCBTN

Pin1-2

(BAT_POWER Mode)

Pin2-3

(Clear CMOS Mode)

USB Headers

Pin Assignments (USB1/USB2/USB4):

1=5V_USB 2=5V_USB

3=USB A- 4=USB B-

5=USB A+ 6=USB B+

7=GND 8=GND

9=NC 10=NC

A. Begin Installation

1. Unscrew the two thumbscrews of the chassis cover.

For safety reasons, please ensure that the power cord is discon-

nected before opening the case.

2. Untie all cables for easier installation.

D. Component Installation

1. Install the Mini PCIE card into the Mini PCIE slot and

secure with

screws

7. Connect the Serial ATA and power cables to the HDD.

Serial ATA Cable

Serial ATA Power Cable

5. Connect the ODD cable and power cable to optical drive.

1. Replace the cover and refasten the thumbscrews.

E. Complete

Slimline SATA Cable

Please load the optimized BIOS settings.

2 . Complete.

F5F7

B4 B6

B13

B12

Pin Assignments (JP6):

1=+HD_LED

2=PWR_LED

3=-HD_LED

4=GND

5=RST_SW

6=PWR_SW

7=GND

8=GND

9=NC

10=KEY

Power Connector

FAN Connectors

ATX Power Connector-CN8

S/PDIF Out Port

Support RS232 Back panel

Independent External Power

12V/5V-JP3

PCI-Express X4 Slot

1 3 5 7 9

Support RS232 Back panel

Independent External Power 12V / 5V

JUMP1 Connector Pin 1 and Pin 2 = RI1 Signal.

JUMP2 Connector Pin 3 and Pin 4 = RI2 Signal.

IF JUMP1 Connector Pin 5 and Pin 7 = RI1 is +5V

IF JUMP2 Connector Pin 6 and Pin 8 = RI2 is +5V

IF JUMP1 Connector Pin 7 and Pin 9 = RI1 is 12V

IF JUMP2 Connector Pin 8 and Pin 10 = RI2 is 12V

Pin Assignments (JP3):

1=-XRI1 2=COM_-XRI1

3=-XRI2 4=COM_-XRI2

5=+5V 6=+5V

7=COM1_PWR 8=COM2_PWR

9=+12V 10=+12V

2. Slide the cover backwards and upwards.

3. Unfasten the racks mount screws and remove the racks.

Rotating the fastener along the direction of arrow is to remove

the ICE module, on the contrary, is to install.

1. Unfasten the four ICE module attachment screws.

B. CPU and ICE Module Installation

2. Remove the ICE module from the chassis and put it aside.

8. Screw the ICE module to the mainboard. Note to press down on the

opposite diagonal corner while tightening each screw.

6. Place the HDD in the rack and secure with the four screws from the side.

8. Slide the rack in the chassis and refasten the two screws.

4. Slide the rack downward and forward and refasten it using the two

screws.

Purse lock

HDD Rack

ODD Rack

B11

3. Place the slimline DVD drive in the rack and fasten it with the four

screws from the sides.

B10

USB Headers-USB1,USB2

LAN (x1) & USB3.0 (x2) Ports

TPM Header (LPC)-JP1

SATA Power Connector-J1

Fan Connector-CPU_FAN

Mini PCIE Slot

Clear CMOS Jumper-JP10

TPM Header (LPC)

Pin Assignments (JP1):

1=+12V 11=NC

2=5V 12=3VSB

3=5VSB 13=RI

4=SERIRQ 14=LDRQ

5=CLK-48M 15=PME

6=CLK-33M 16=LAD1

7=SIORST# 17=LAD0

8=LFRAME 18=+3.3V

9=LAD3 19=GND

10=LAD2 20=NC

2 4 6 8 10

Ground

SPEED_SENSE

+12V

PWM_CTRL

CUP_FAN/SYS_FAN

SATA Power Connector

Pin Assignments (J1):

1=GND

2=GND

3=+5V

4=+5V

Please note this 1155 pin socket bends easily. Always apply

extreme care and little force when installing a CPU and limit the

number of times you remove or exchange it. Before installation,

make sure to turn off the computer and unplug the power cord

from the mains to avoid damage.

3. First unlock and raise the socket lever.

Follow the steps below to correctly install the CPU into the

motherboard CPU socket.

5. Orientate the CPU and socket and please align the CPU notches with

the socket alignment keys. Make sure the CPU is perfectly horizontal,

insert it into the socket.

DO NOT touch socket contacts. To protect the CPU socket, always

replace the protective socket cover when the CPU is not installed.

4. Lift the metal load plate on the CPU socket. Tear off the protective

membrane from the bottom of ICE module. Remove the protective

socket mylar from the CPU socket.

Please be aware of the CPU orientation, DO NOT force the CPU into

the socket to avoid bending of pins on the socket and damage of CPU!

Socket

1155

CPU

Triangle Pin1

Marking on the CPU

Notch on the CPU/

Alignment Key of the

CPU Socket

6. Close the metal load plate, lower the CPU socket lever and lock in place.

7. Spread thermal paste evenly on the CPU surface.

Please do not apply excess amount of thermal paste.

1. Locate the SODIMM slot on the mainboard.

2. Align the notch of the memory module with the one of the memory slot.

notch

SODIMM slot

3. Gently insert the module into the slot in a 45-degree angle.

4. Carefully push down the memory module until it snaps into the locking

mechanism.

45-degree

angle

5. Repeat the above steps to install additional memory modules, if required.

Latch

Metal load

plate

Remove the

protective

membrane

Retention tab

Metal load plate

Thermal Paste

application area

Load lever

62R-XH61V0-0601 XH61V

English.Spanish.Korean.

Traditional Chinese.Japanese.

French. German Quick Guide

Produktspecifikationer

Varumärke:	Shuttle
Kategori:	Skrivbord
Modell:	X 6110BA
Produkttyp:	PC
Vikt:	2200 g
Bredd:	200 mm
Djup:	240 mm
Höjd:	72 mm
Strömförsörjning:	90 W
Processorfrekvens:	3.3 GHz
Processorfamilj:	Intel® Core™ i3
Wi-Fi:	Ja
Wi-Fi-standarder:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antal HDMI-portar:	1
DVI-port:	Ja
Hörlursutgångar:	1
Certifiering:	FCC, CE, BSMI, C-Tick, CB, BSMI, ETL, EuP Lot 6
Internminne:	4 GB
HDMI-version:	1.4
Kabelteknik:	10/100/1000Base-T(X)
Processor:	i3-3220
Intel® Wireless Display (Intel® WiDi):	Ja
Processorns driftlägen:	64-bit
Processorns cache:	3 MB
Busstyp:	DMI
Maximalt internminne:	- GB
Total lagringskapacitet:	320 GB
Intel® My WiFi Technology (Intel® MWT):	Ja
Intel® Hyper Threading Technology (Intel® HT Technology):	Ja
Intel® InTru™ 3D-teknik:	Ja
Intel® Insider™:	Ja
Intel® AES nya instruktioner (Intel® AES-NI):	Nej
Idle stater:	Ja
Intel® Small Business Advantage (Intel® SBA):	Nej
Intel® Secure Key:	Nej
Intel® 64:	Ja
Intel® Virtualization Technology for Directed I/O (VT-d):	Nej
Intel® Identity Protection Technology (Intel® IPT):	Ja
Intel® Trusted Execution Technology:	Nej
Minnestyper som stöds av processorn:	DDR3-SDRAM
Minneslayout:	- GB
Minnesbandbredd som stöds av processorn (max):	25.6 GB/s
Antalet installerade hårddiskar:	1
FSB-paritet:	Nej
Tcase:	65.3 ° C
Processorserie:	Intel Core i3-3200 Desktop Series
S/PDIF-utgång:	Ja
Intel® FDI-teknik:	Ja
Intel® Rapid Storage Technology:	Nej
Antal Thunderbolt-portar:	1
Processorgenerering:	3:e generationens Intel® Core™ i3
Produktens färg:	Svart
bruksanvisning:	Ja
processortillverkare:	Intel
Installerat operativsystem:	Windows 7 Professional
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	2
processorsockel:	LGA 1155 (Socket H2)
Processorns kodnamn:	Ivy Bridge
Intel® Clear Video Technology för MID (Intel® CVT för MID):	Nej
Processorns cachetyp:	Smart Cache
Seriella portar:	2
Hållbarhetscertifiering:	RoHS, ENERGY STAR
Hårddiskkapacitet:	320 GB
Typ av internminne:	DDR3-SDRAM
Placeringar som kan användas:	Horisontell / Vertikal
Nätverksansluten (Ethernet):	Ja
Linje ut:	Ja
Intel Clear Video Technology:	Nej
Antal USB 2.0 anslutningar:	4
Minneskanaler:	Dubbla kanaler
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar:	2
Moderkortets chipset:	Intel® H61 Express
Processorkärnor:	2
Produktvikt (oz):	Ja
Typ av kabellåsanslutning:	Kensington
Wi-Fi-standard:	Wi-Fi 4 (802.11n)
Processor främre buss:	- MHz
Systembuss, hastighet:	5 GT/s
Processortrådar:	4
Processorlitografi:	22 nm
Processor med ECC-stöd:	Ja
Värmeavledningseffekt (TDP):	55 W
PCI Express-kortplatser version:	2.0
PCI Express konfigurationer:	1x16, 2x8
CPU multiplikatorn (buss / core-förhållande):	33
Lagringsmedia:	HDD
Optisk enhetstyp:	Nej
Ombord grafikkort modell:	Intel® HD Graphics 2500
Diskret grafikkortsmodell:	Ej tillgänglig
Basfrekvens för inbyggt grafikkort:	650 MHz
Högsta dynamiska frekvens för inbyggt grafikkort:	1050 MHz
Grafik enhets-ID:	0x152
Ombord grafikkort:	Ja
Familj av inbyggda grafikkort:	Intel® HD Graphics
Uttag för mikrofon/linje in:	Ja
Operativsystemets systemarkitektur:	64-bit
Intel® Stöldskydd Teknik (Intel® AT):	Ja
Intel® Turbo Boost Technology:	Nej
Förstärkt Intel Speedstep Technology:	Ja
Intel® Clear Video HD Technology (Intel® CVT HD):	Ja
Intel® Quick Sync Video Technology:	Ja
Intel® Flex minnesåtkomst:	Ja
Intel® Förbättrad Halt State:	Ja
Intel® VT-x med utökad Sida Tabeller (EPT):	Ja
Intel® Efterfrågan Baserad Växla:	Nej
Execute Disable Bit-säkerhet:	Ja
Termiska övervakningsteknik:	Ja
Processorns förpackningsstorlek:	37.5 x 37.5 mm
Stödda instruktionsset:	AVX, SSE4.1, SSE4.2
CPU konfiguration (max):	1
Inbäddade alternativ:	Ja
Intel Identity Protection Technology-version:	1.00
Intel Secure Key Technology-version:	0.00
Intel Virtualization Technology (VT-x):	Ja
Etisk processor (Conflict Free):	Ja
Intel® Dual Display Kan Teknik:	Nej
Intel® Snabb Memory Access:	Ja
ARK-ID för processor:	65693
Minnesklockfrekvens som stöds av processorn:	1333,1600 MHz
Högsta internminne som stöds av processorn:	32 GB
Hårddiskens gränssnitt:	SATA
Antal skärmar som stöds (inbyggt grafikkort):	3
Mus inkluderad:	Nej
Tangentbord inkluderat:	Nej
Specifikation för kylningslösning:	PCG 2011C
Hårddiskens storlek:	2.5 "
Strömförsörjning ingångsspänning:	100 - 240 V
Linje in:	Ja
Display inkluderad:	Nej
Drivrutiner medföljer:	Ja
Kylning typ:	Aktiv
Antal processorer installerade:	1
Strömförsörjning ingångsfrekvens:	50 - 60 hz
