Sida 1/47
1

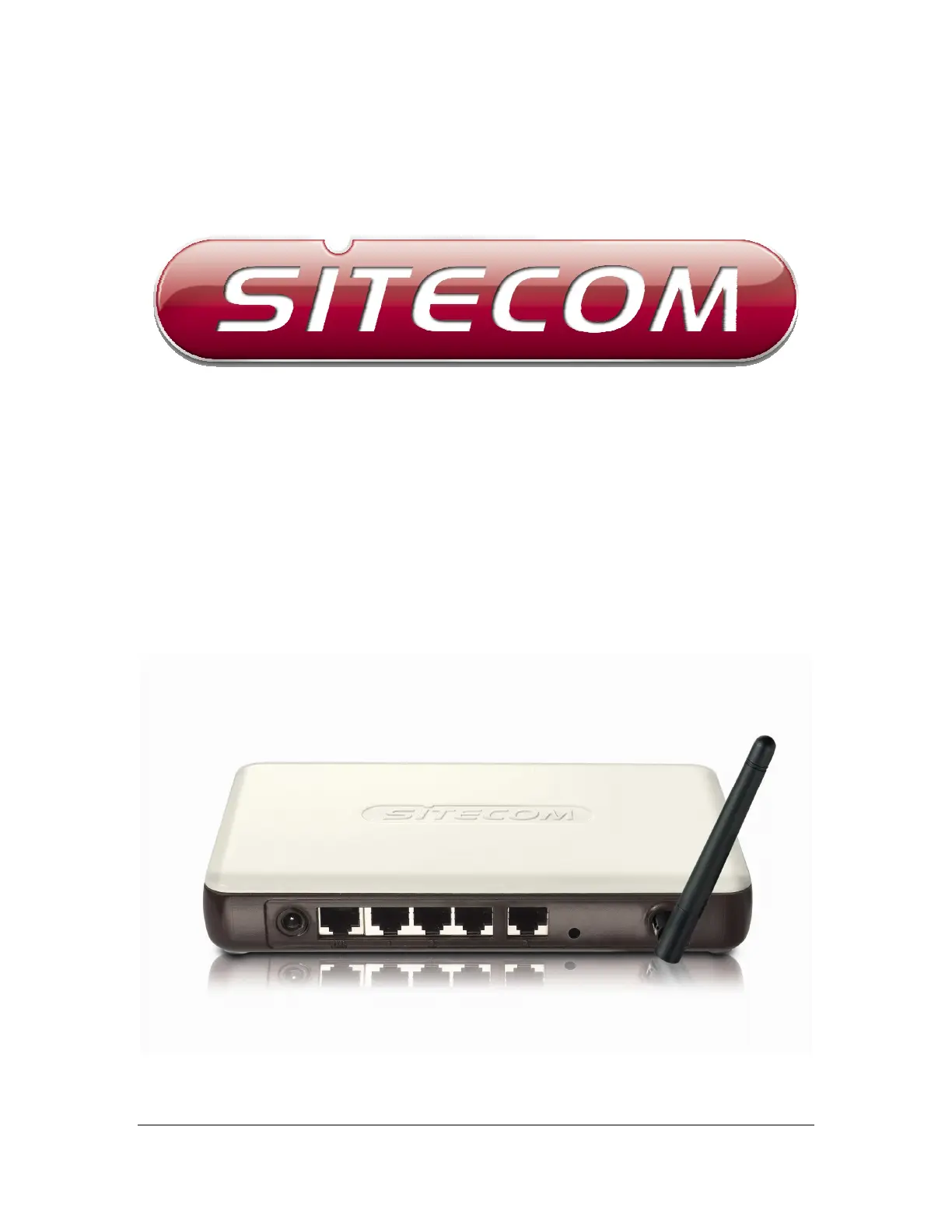

WL-600/607
Wireless Broadband Router
(802.11bg)
2
Introduction
Congratulations on purchasing this Wireless Broadband Router. This Wireless
Broadband Router is a cost-effective IP Sharing Router that enables multiple users to
share the Internet through an ADSL or cable modem. Simply configure your Internet
connection settings in the Wireless Broadband Router and plug your PC to the LAN
port and you're ready to share files and access the Internet. As your network grows,
you can connect another hub or switch to the router’s LAN ports, allowing you to
easily expand your network. The Wireless Broadband Router is embedded with a
IEEE 802.11g/b access point that allows you to build up a wireless LAN. The Wireless
Broadband Router provides a total solution for the Small and Medium-sized Business
(SMB) and the Small Office/Home Office (SOHO) markets, giving you an instant
network today, and the flexibility to handle tomorrow's expansion and speed.
Features
• High Internet Access throughput (50M)
• Allow multiple users to share a single Internet line
• Supports up to 253 users
• Internet Access via Cable or xDSL modem
• Access Private LAN Servers from the Public Network
• Equipped with four LAN ports (10/100M) and one WAN port (10/100M)
• Provides IEEE 802.11g/b wireless LAN access point
• Support DHCP (Server/Client) for easy setup
• Support advance features such as: Special Applications, DMZ, Virtual Servers,
Access Control, Firewall.
• Allow you to monitor the router’s status such as: DHCP Client Log, System
Log, Security Log and Device/Connection Status
• Easy to use Web-based GUI for configuration and management purposes
•
Remote Management allows configuration and upgrades from a remote site
(over the Internet)
Minimum Requirements
• One External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45)
• Network Interface Card (NIC) for each Personal Computer (PC)
•
PCs with a Web-Browser (Internet Explorer 4.0 or higher, or Netscape
Navigator 4.7 or higher)
Package Content
• One 4-port Broadband router unit
• One Quick Installation Guide
• One User Manual CD
• One Power Adapter
•
Accessories
Note
The WAN “idle timeout” auto-disconnect function may not work due to abnormal
activities of some network application software, computer virus or hacker attacks
from the Internet. For example, some software sends network packets to the
Internet in the background, even when you are not using the Internet. So please
turn off your computer when you are not using it. This function also may not work
with some ISP. So please make sure this function can work properly when you use
this function in the first time, especially your ISP charge you by time used.
3
Get to know the Broadband Router
Back Panel
The diagram (fig1.0) below shows the broadband router’s back panel. The router’s
back panel is divided into three sections, , and : LAN WAN Reset
Figure 1.0
1) Local Area Network (LAN)
The Broadband router’s 4 LAN ports are where you connect your LAN’s PCs, printer
servers, hubs and switches etc.
2) Wide Area Network (WAN)
The WAN port is the segment connected to your xDSL or Cable modem and is
linked to the Internet.
3) Reset
The Reset button allows you to do one of two things.
1) If problems occur with your router, press the router’s reset button with a
pencil tip (for less than 4 seconds) and the router will re-boot itself,
keeping your original configurations.
2)
If problems persist or you experience extreme problems or you forgot
your password, press the reset button for longer than 4 seconds and the
router will reset itself to the factory default settings ( : your warning
original configurations will be replaced with the factory default settings)
