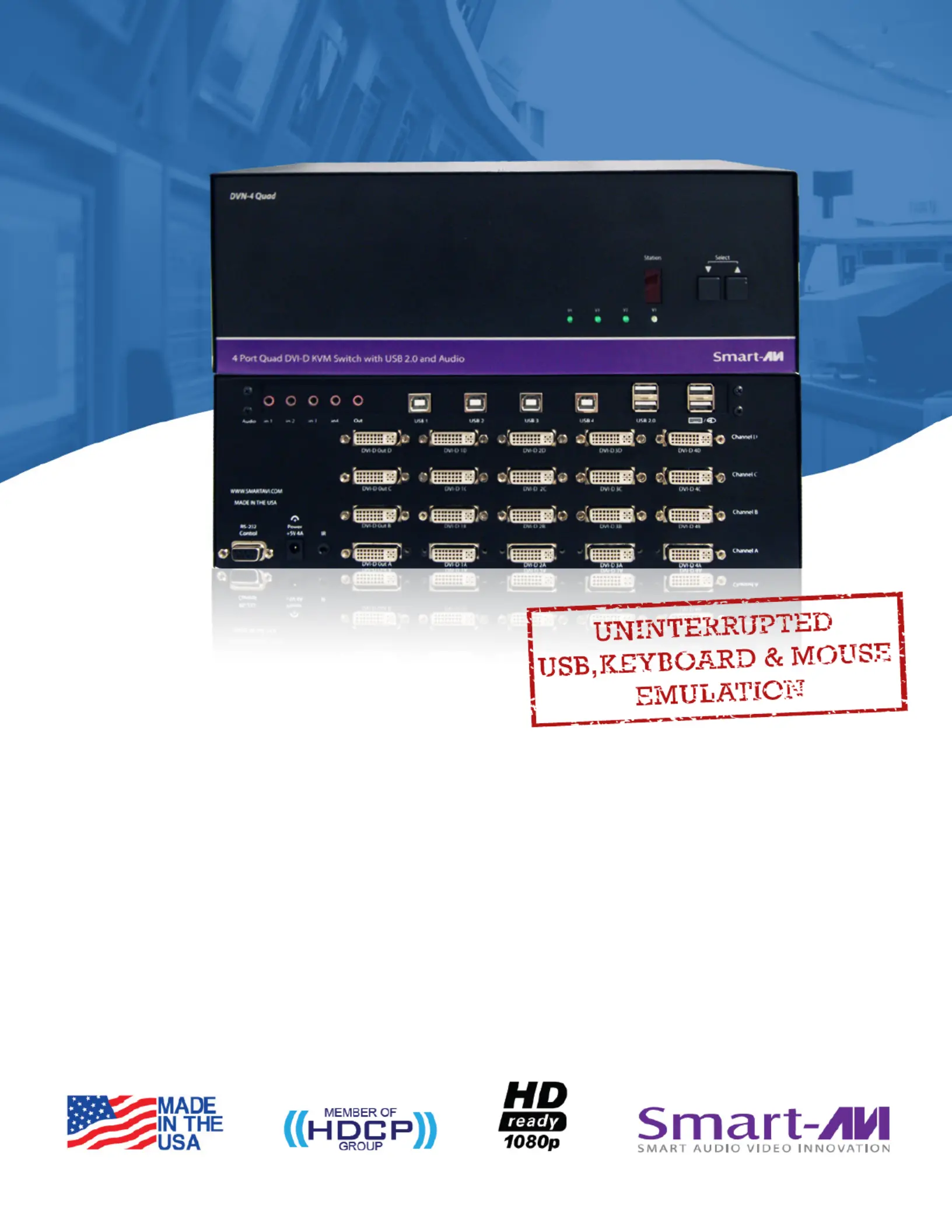

4-Port Quad Display DVI-D KVM Switch with

USB 2.0 Sharing

Access and Control 4 Quad Display Computers Using Only One USB

Keyboard and One USB Mouse

DVN-4Quad

REAL-WORLD APPLICATIONS

FEATURES

• SupportsMac,PC,LinuxandSunMacOS,SunOS,Unix

• SupportsHighResolution1920x120060HzWUXGA

• UsesuniversalDVISingleLinkconnectors

• ZeropixellosswithTMDSsignalcorrection

• SupportsallUSB2.0Devices

• ControlSun,MacorPCcomputersfromacommonKVMconsole

• CompatiblewithallmajorsoftwareincludingWindows,Linux,

MacOS,SunOS,Unix

• Rackmountableinastandard19inchrack

• Flashupgradeablermware

• Frontpanelkeysforselectingusersandchannelsmanually

• SupportsUSBkeyboardandmouse

• Balancedstereoaudiooutput

• RS-232controlforremotecontrol

• OptionalTCP/IPcontrol

• Hot-keycommandsforquickchannelselection.

• Independent(asynchronous)switchingofKVMand

peripheralUSB/audioports.Userscanlistentoaudio

fromonecomputerwhileworkingontheotheror

scanadocumentandsaveinanothercomputer.

• Completekeyboardemulationforerrorfreebooting

• Superiorvideoquality-1920x1200@60Hz

SOURCESWITCHINGMADEEASY

TheDVN-4Quadprovidesasimpliedmanagementapproachtoup4computerswithDVI-D,audio,andUSB2.0outputs.This

dynamicKVMconsolecanbecontrolledremotelyfromeasilyaccessiblekeyboardhotkeysorRS-232commands,aswellas

directlythroughtheconsole’seasytoreadfrontpanel.

EDIDLEARNING&PROGRAMMING

DetectionofDDCsignalsforallattacheddevicesiseffortlesswithDVN-4QuadduetoitsrealEDIDlearningandprogramming.

Thisisvitalinoptimizingtheresolutionoftheselectedgraphicscardtoproperlydisplayontheremotemonitor.Furthermore,the

EDIDlearningfeaturecontinuestoreplicatetherightDDCforthecomputertoenablethedisplaycardtoeffectivelyworkwhen

unusedportsarenotselected.

FULLUSBKEYBOARDANDMOUSEEMULATION

TheUSBkeyboardandmouseemulationutilizedbyDVN-4Quadprovidesaccurateandquicksourceswitchingbymeansof

keyboardhotkeysandmouseactions.DVN-4Quadimitatesthepresenceofakeyboardandmouseforeveryattachedcomputer

throughaUSBcable.Thisisessentialasitsimulatestheexistenceofthekeyboardandmousetoallthecomputerswhileswitching

withoutinterruptions.

DVN-4Quadisadedicatedmulti-platformKVMswitchcapableofmanagingupto4differentcomputersthroughfourDVI-D

monitors,oneUSBkeyboard&mouse,asinglesetofspeakersandaUSB2.0Device.

TheUSBemulationtechnologyutilizedbyDVN-4QuadenablesimmediatehotkeysourceswitchingthrougharemoteUSB

keyboardandmouse.DVN-4Quadusessinglelinkconnectorsprovidinghighresolutionsofupto1920x1200withzeropixelloss

fromTMDSsignalcorrection.

• ControlRooms

• Audio/VisualPresentations

• ShoppingCenters

• Hotels/Resorts

• KVMSwitches

TheDVN-4Quadhasabroadrangeofapplications,butthemainfunctionofthisKVMswitchistocentralizetheaccessofseveral

computersintoonecomprehensivePC.NotonlydoesitfunctionasaKVMconsole,italsosupportsUSB2.0functionality.This

allowsauserattheconsoletouseUSBdevicesthatwouldotherwisebeunavailablewithconventionalKVMdevices.Forexample,

itallowsausertouseaashmemorydriveorcamerawithouthavingtoplugitdirectlyintotheremotecomputer.DVN-4Quad

isaperfectsolutionforthemedicalorindustrialeld,whereitmaynotbepracticalorsafetohaveoneormoreCPUsin

thegeneralvicinity.

• ServerCollocation

• DigitalSignage

• Education

• Airports

• DealerRooms

OVERVIEW

INDEPENDENTSIMULTANEOUSDEVICESELECTION:FlexibilityiskeywiththeDVN-4Quad.ItenablestheuseofaUSB

keyboardandmouseofonecomputerwhileotherUSBperipheralssuchasspeakers,scannersandprintersareconnectedto

othercomputersources.DVN-4Quadmaintainstheabilitytoswitchallconnecteddevicestoanyoneofthecomputersourcesas

withanyotherKVMswitches.

FLEXIBLE CONTROL

FLEXIBLE SHARING

RS-232:AnyexternaldeviceorprogramsupportingRS-232cancontroltheDVN-4Quad.TheDVN-4Quadusesverysimple

protocol,thatenableseasyintegrationwithotherdevices.

USB/KEYBOARD:HotkeysenabletheusertoswitchandcontrolallthedifferentfunctionsoftheKVMsystem.

TCP/IP:SMTCP-2isaSmartAVIoptionalTCP/IPconverterthatenablesuserstoswitchandcontroltheDVN-4Quadcontrolfrom

anywhereintheworldusingaLANorWANconnection.

DVI 4

DVI 3

DVI 2

DVI 1

4 Computers

DVN-4 Quad

4 Port Quad DVI-D KVM Switch with USB 2 .0 and Audio
