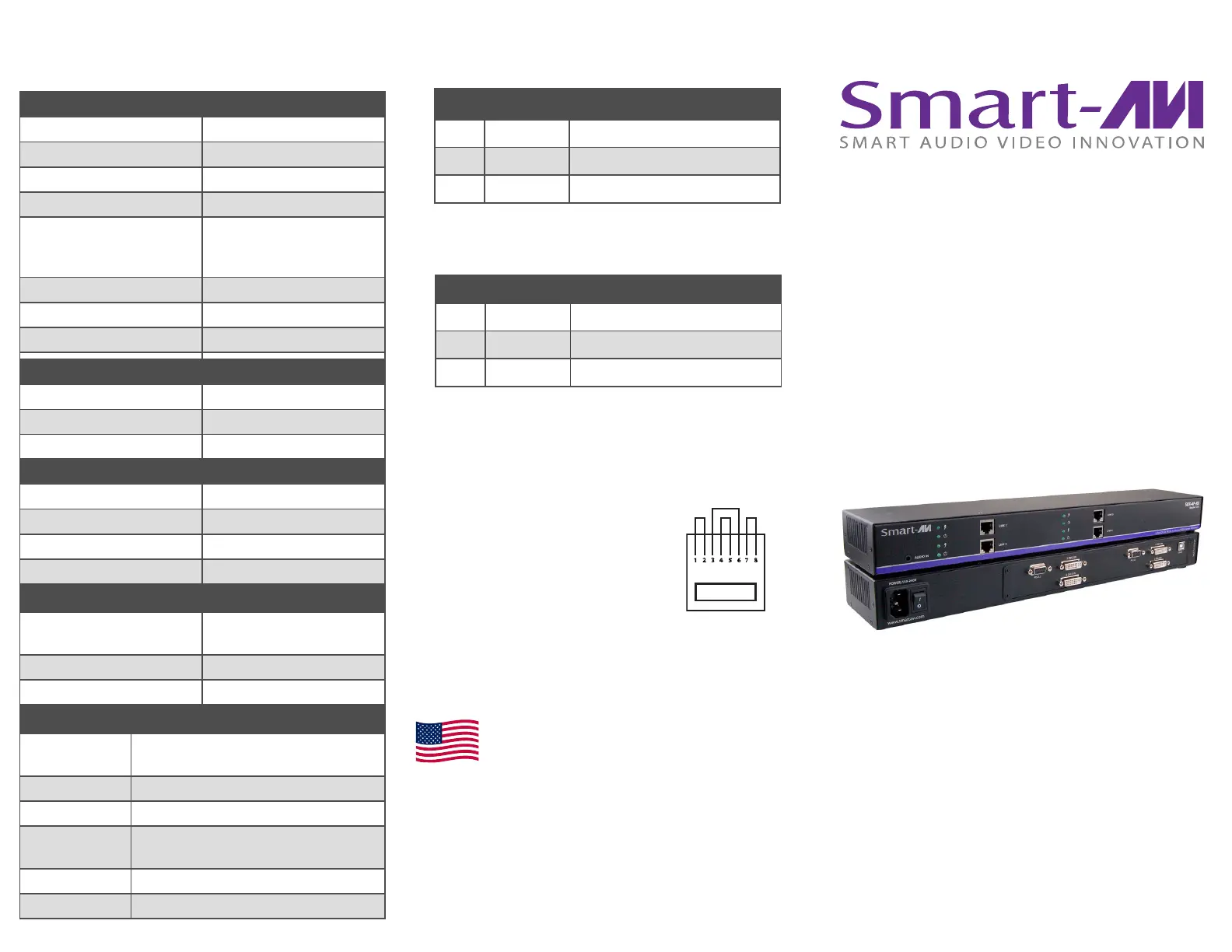

USER MANUAL

SDX-4P

EXTEND QUAD DVI-D, QUAD RS232,

USB KEYBOARD, MOUSE AND AUDIO

UP TO 400 FEET OVER FOUR

CAT5/5E/6 CABLE

VIDEO

Format (4) DVI-D Single Link

Maximum Pixel Clock 165 MHz

Input Interface (TX) (4) DVI-D 29-pin (Female)

Output Interface (RX) (4) DVI-D 29-pin (Female)

Resolution Up to 1920x1200 @60Hz

and

3840x2160 @30Hz

DDC 5 volts p-p (TTL)

Input Equalization Automatic

DVI-D Cable Max Length Up to 20 ft.

Output DVI-D Cable Length Up to 20 ft.

RS232

Input Interface (2) DB9 (Female)

Output Interface (2) DB9 (Male)

Speed Up to 115 Kbps

OTHER

Power Internal 100-240 VAC/5VDC4A

@20W

Dimensions 17 in W x 1.7 in H x 3.2 in D

Weight 4 lbs.

Operating

Temp.

0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

Signal Type Stereo Audio

Bandwidth 15MHz, 0dB

Impedance 100 Ohm

Connector 3.5 mm jack, Female

AUDIO

TECHNICAL SPECIFICATIONS

SUPER RANGE HDBaseT

QUAD DVI-D, DUAL RS232,

AUDIO, AND USB

KEYBOARD AND MOUSE

EXTENDER

USB

Signal Type USB 1.1 (Keyboard and

Mouse Only)

Input Interface (TX) (1) USB Type B (Female)

Output Interface (RX) (2) USB Type A (Female)

RECEIVE ON DB9 MALE

PIN # NAME DESCRIPTION

2 RxD Receive Data on DB9 Male

3 TxD Transmit Data on DB9 Male

5 SGND Ground

PIN # NAME DESCRIPTION

2 TxD Transmit Data on DB9 Female

3 RxD Receive Data on DB9 Female

5 SGND Ground

TRANSMIT ON DB9 FEMALE

PREPARING AND CONNECTING SYSTEM

CAT5 CABLE

Following is the wiring standard for terminating CAT 5

cable using RJ-45 connector:

Pair 1 Pins 1 & 2

Pair 2 Pins 3 & 6

Pair 3 Pins 4 & 5

Pair 4 Pins 7 & 8

Connectors: RJ-45

Capacitance: 14 pf/ft (46.2 pf/m)

Conductor Gauge: 24 AWG

Impedance: 100 +/- 15 ohms

800.AVI.2131

Tel: (818) 503-6200 Fax: (818) 503-6208

11651 Vanowen St. North Hollywood, CA 91605

SmartAVI.com

Designed and Manufactured in the USA
