Sida 1/4

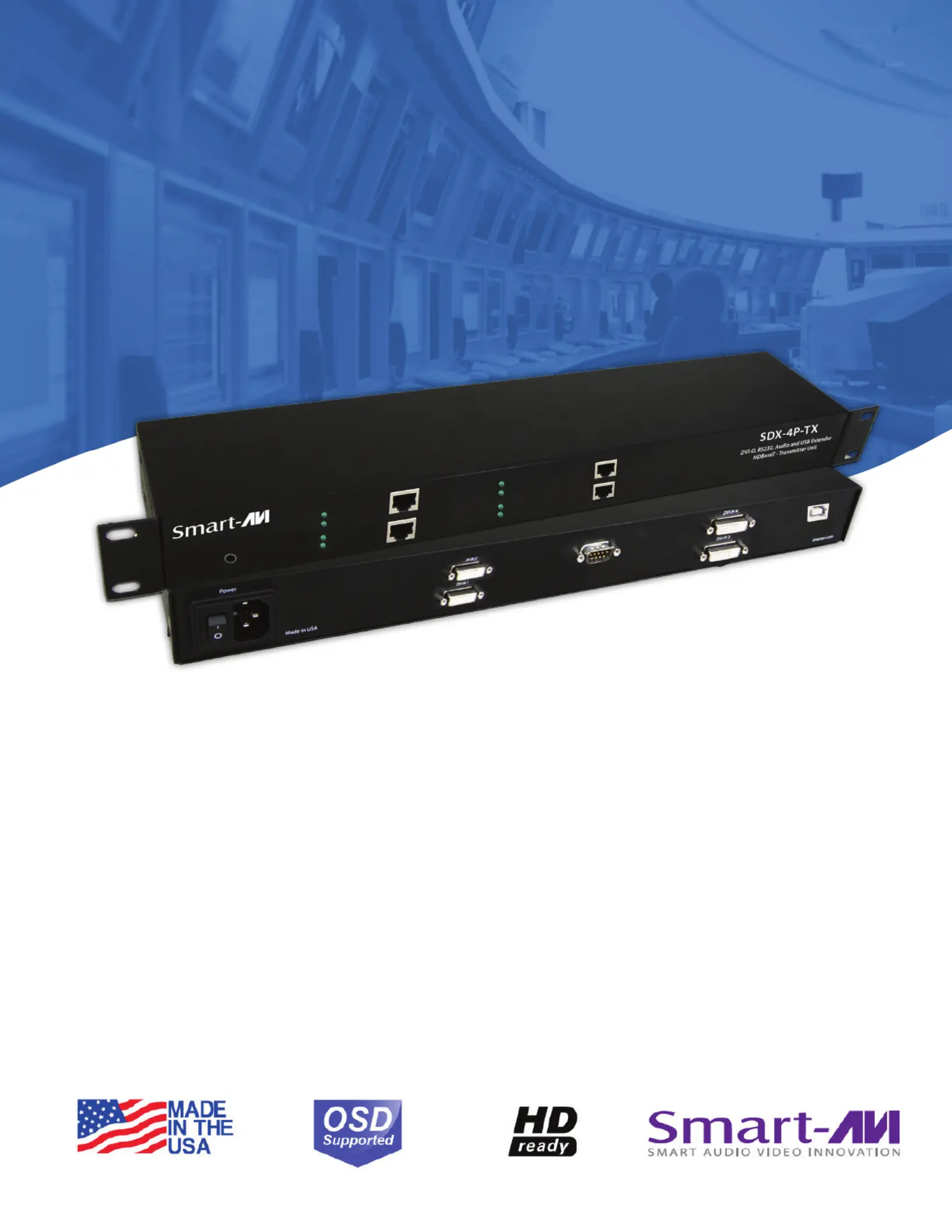

Quad Head DVI-D, USB

Keyboard and Mouse

Extender Over Cat5e/6

Quad DVI-D, Dual RS-232, Audio and USB

Keyboard and Mouse Extender

Extend Quad DVI-D, Dual RS-232, USB and Audio up to 400

Feet Over Four Cat5/5E/6 Cables.

SDX-4P

APPLICATION DIAGRAM

FEATURES

APPLICATIONS

• ExtendsquadDVI-Dupto400feet(120m)fromthe

source

• HDCPSupport

• Supportsupto1920x1200digitalvideoresolution@

60Hz

• Supports4K/2K(3840x2160)videoresolution@

30Hz

• AutomaticDDCLearning

• USBKeyboardandMouseextension

• UncompressedVideousingHDBaseT

• DigitalSignage

• Security

• PCNetworking

• ConferenceCenterSystems

• PointofSale

UsingHDBaseTtechnology,theSDX-4PDVIextenderiscapableofsendingquadDVI-Dsignalsupto400

feetoverfourconventionalandinexpensiveCAT5/5e/6cables.HDBaseTtechnologyissuperiortoolderDVI

extendersthatrequireaspecialCAT6shieldedcabletogoashortdistance.TheSDX-4PalsoextendsUSB

keyboardandmouse,audioandRS-232signals,givinguserstheabilitytocontroldisplaysordevicesremotely.

400feetofsignalextensionfromtheSDX-4Pgivessystemarchitectsandenduserstheabilitytocreatethe

audioandvideoenvironmentthatbestsuitstheirneedsandapplications.Withsupportforhighresolution

monitors,userscangetthemostoutoftheirdisplayswhilegettinghundredsofextrafeetofexibility.And

thankstotheunit’squadheadfunctionality,userscanoperateatrulyimpressiveandproductivity-enhancing

workspace.

OVERVIEW

Computer Transmitter Receiver

DVI-1

DVI-3

DVI-2

DVI-4

USB

Audio

RS-232

CAT6 Cable

400 ft.

• RS-232extensionallowsforremotecontrolof

displays

• Externalpoweradapterfortransmitterand

receiverunit

• SupportsStereoSound

• CompatiblewithWindows,MacandLinux

OperatingSystems

• CameraSurveillance

• VideoPhone

• ControlRoomSystems

• RecordingStudio

• PCKVMExtension

SECURITY

DIGITAL SIGNAGE

AUDIO AND VISUAL RECORDING

Whenmanagingcontentinhigh-securityenvironments,creatingasafeandsecurecontrolroomiscritical.

Inthevastmajorityofsuchapplications,thatrequiresroutingsignalsfromaserverroom,wherethe

computersaresafelystored,toacontrolroom,whereapprovedpersonnelaccessthedataandvideofeeds.

Whetherthat’sinasecuritysurveillancecenter,anoperationscontrolroomorsomeothersecurity-related

environment,beingabletoextendvideo,audio,USBandRS-232signalsisamust.

TheSDX-4Pprovidessystemarchitectswiththeexibilitytheyneedtocreatesecureenvironmentsfor

serversaswellastheendusersaccessingthosecomputers.AndwithquadDVI-Dsignalextension,userscan

managetheirconnectedcomputerswithexpandeddisplayoptions,enablingthemtostayincontroloftheir

contentatalltimes.

Managingamulti-screendigitalsignagesolutionrequiressomeimportantforesightregardingthesignalpath

tothoseinformativeandattractivedisplays.Particularlywhenitcomestoproperlyscheduled,updatedand

managedcontentbeingdisplayed,it’smuchmoreefcienttokeepallofthedigitalsignagehardwareinone

centrallocationandtoextendthevideosignalsoutfromthere.

Thatmeanssignalextensionisanimportantpartofasmartdigitalsignagesolution,andtheSDX-4Pgives

userstheexibilitytheywantandneedtoplacetheirdigitalsignagescreensintherightlocationstomaximize

theireffectiveness.

Forusersintherecordingarts,maintainingtheutmostinsignalandrecordingdelityisanabsolutenecessity.

Forvideorecording,itisoftenimportantthatnounsightlycomputersarevisible.Similarly,audioengineers

mustkeepnoisycomputersawayfromtheroomswhererecordinghappenstoensurethenalproduct

soundsprofessional.Inbothsuchinstances,theSDX-4Pgivesuserstheidealwaytokeeptheirserversor

computersawayfromareasthataudioorvideorecordingisbeingdone,ensuringabetternalproduct.

REAL WORLD APPLICATIONS
