SDX-Plus
Super Range DVI-D, USB Keyboard
and Mouse, RS232 and IR Extender
www.smartavi.com
Installation
Manual
What’s in the Box?
PART NO.QTYDESCRIPTION
SDX-Plus-RX 1SDX-Plus Receiver. DVI-D + USB + RS232
+ IR Receiver over CAT5/5e/6
SDX-Plus-TX1SDX-Plus Transmitter. DVI-D + USB +
RS232 + IR Transmitter over CAT5/5e/6
Power Supply2PS5VDC4A
© Copyright 2012 SmartAVI, All Rights Reserved
NOTICE
The information contained in this document
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com

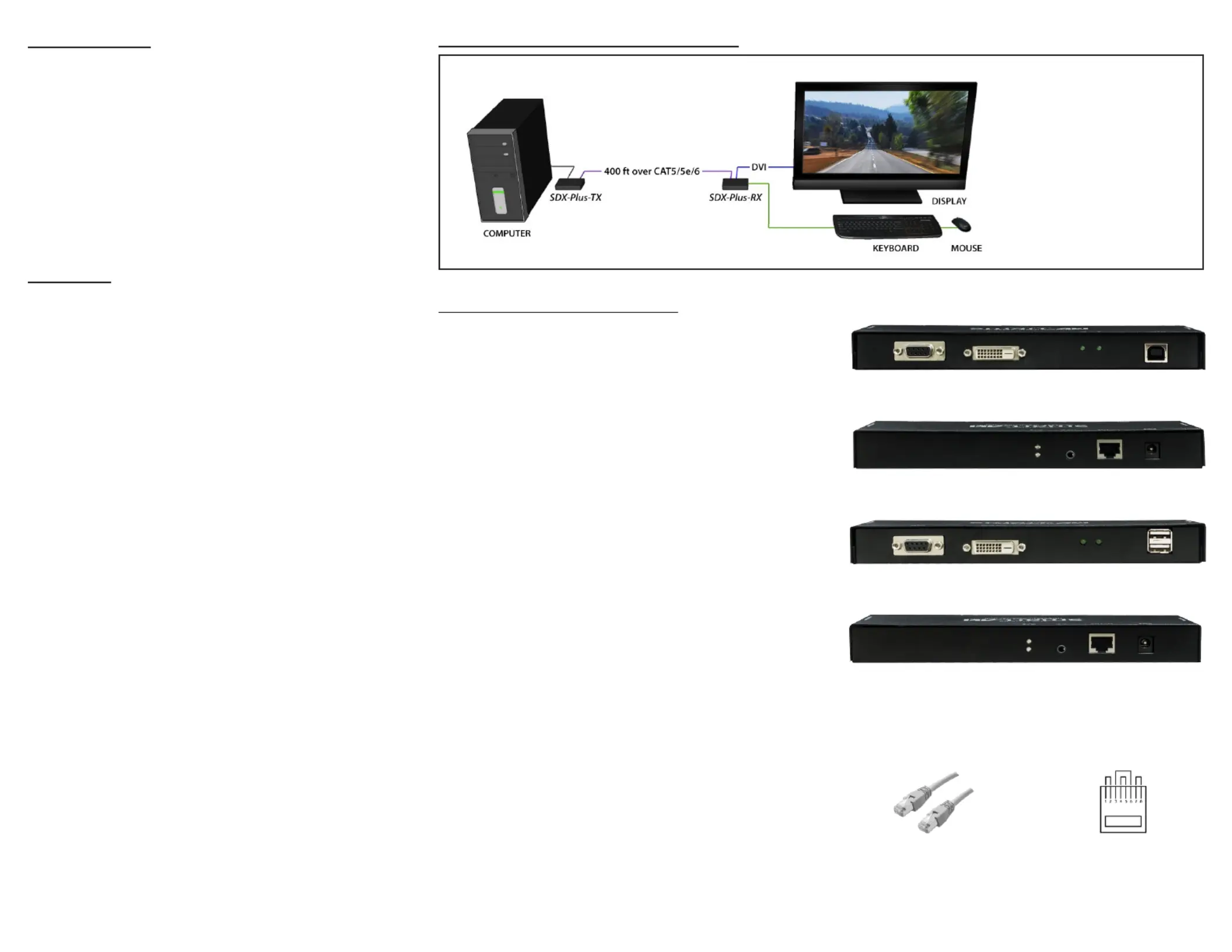

Extend DVI-D video, USB Key-
board and Mouse, RS232 and IR
up to 400 feet (120m) over a
single CAT5/5e/6 UTP cable
Rack Mountable Option
Our SmartRack is the perfect solution to allow
virtually all SmartAVI devices to be custom mounted
in a standard 19” server rack. The SmartRack is fully
adjustable and can secure/organize several devices.
Technical Specications
VIDEO
FormatDVI-D Single Link
Maximum Pixel Clock165 MHz
Input Interface (TX)(1) DVI-D 29-pin female
Output Interface (RX)(1) DVI-D 29-pin female
ResolutionUp to 1920 x 1200 @60Hz
DDC5 volts p-p(TTL)
Input EqualizationAutomatic
Input Cable LengthUp to 20 ft.
Output Cable LengthUp to 20 ft.
OTHER
PowerExternal 100-240 VAC/5VDC4A @20W
Dimensions8.25 in W x 1 in H x 3.625 in D
Weight1 lb
Operating Temp.0-55 °C (32-131°F)
Storage Temp.-20-85 °C (-4-185 °F)
HumidityUp to 95%
USB
Signal Type OHCI/UHCI (USB 1.1)
Input Interface (TX)(1) USB Type B (Female)
Output Interface (RX)(2) USB Type A (Female)
RS232
Input InterfaceDB9 (Female)
Output InterfaceDB9 (Female)
Control@ 115 Kbps
IR
Frequency Response30KHz to 80KHz
Input Interface (RX)(1) 3.5 mm (Female)
Output Interface (TX)(1) 3.5 mm (Female)
Produktspecifikationer
| Varumärke: | Smart-AVI |
| Kategori: | AV extender |
| Modell: | SDX-Plus-S |
| Vikt: | 226.8 g |
| Maximal upplösning: | 1920 x 1200 pixlar |
| Ljudutgång: | 1 |
| Modell: | Sändare och mottagare för AV-utrustning |
| Produktens färg: | Svart |
| Antal USB-portar: | 3 |
| Strömförbrukning (vanlig): | 20 W |
| Produktstorlek (BxDxH): | 130.17 x 92 x 25 mm |
| Temperatur vid drift: | 0 - 55 ° C |
| Temperaturintervall (förvaring): | -20 - 85 ° C |
| Intervall för relativ operativ luftfuktighet: | 0 - 95 % |
| AC-inspänning: | 100-240 V |
| Likströmsingång: | Ja |
| Ljudanslutning: | 1 |
| DVI ingångar: | 1 |
| DVI-utgång portar: | 1 |
