Star Micronics TSP143IIIW Bruksanvisning

Star Micronics Skrivare TSP143IIIW

Läs gratis den bruksanvisning för Star Micronics TSP143IIIW (36 sidor) i kategorin Skrivare. Guiden har ansetts hjälpsam av 19 personer och har ett genomsnittsbetyg på 4.4 stjärnor baserat på 10 recensioner. Har du en fråga om Star Micronics TSP143IIIW eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

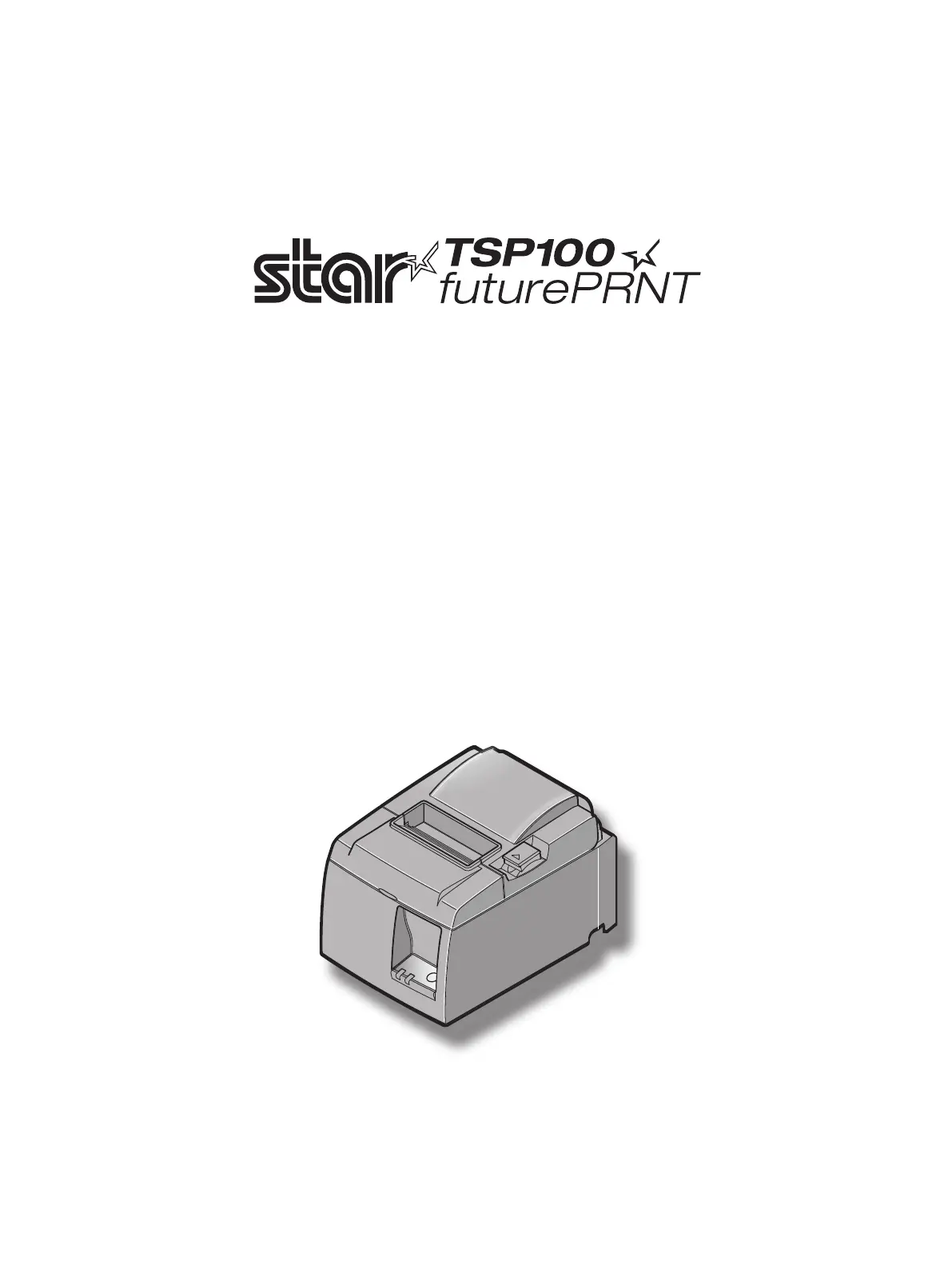

Sida 1/36

TSP100LAN

Hardware Manual

Trademark acknowledgments

TSP100LAN: Star Micronics Co., Ltd.

Notice

permission is forbidden.

• e contents of this manual are subject to change without notice.

• All eorts have been made to ensure the accuracy of the contents of this manual at the time of going to press.

However, should any errors be detected, STAR would greatly appreciate being informed of them.

• e above notwithstanding, STAR can assume no responsibility for any errors in this manual.

2010-2013 Star Micronics Co., Ltd.

Federal Communications Commission

Radio Frequency Interference

Statement

is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) is device

may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

NOTE: is equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part

15 of the FCC Rules. ese limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. is equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

is statement will be applied only for the printers marketed in U.S.A.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

For compliance with the Federal Noise Interference Standard, this equipment requires a shielded cable.

For RF interference suppression, if a ferrite core is provided with this device, ax it to the interface cable

Statement of

e Canadian Department of Communications

Radio Interference Regulationst

is Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

e above statement applies only to printers marketed in Canada.

Please access the following URL

http://www.star-m.jp/eng/dl/dl02.htm

for the latest revision of the manual.

TABLE OF CONTENTS

1. Unpacking and Installation ................................................................................................................... 1

1-1. Unpacking ................................................................................................................................................ 1

1-2. Choosing a place for the printer ........................................................................................................... 2

2. Parts Identication and Nomenclature ................................................................................................ 3

3. Setup ...................................................................................................................................................... 4

3-1. Connecting the Ethernet Cable to the Printer .................................................................................... 4

3-2. Connecting to a Peripheral Unit ........................................................................................................... 5

3-3. Loading the Paper Roll ........................................................................................................................... 6

3-4. Connecting the Ethernet Cable to the PC ......................................................................................... 10

3-5. Connecting the Power Cord ................................................................................................................11

3-6. Turning Power On ................................................................................................................................ 12

4. Attaching the Accessories .................................................................................................................... 13

4-1. Attaching the Holder Plate ..................................................................................................................13

4-2. Attaching the Rubber Feet ................................................................................................................... 15

4-3. Switch Cover Installation .....................................................................................................................16

5. ermal Roll Paper Specication ........................................................................................................ 17

5-1. Roll paper specication ........................................................................................................................17

5-2. Recommended paper ........................................................................................................................... 17

6. Control Panel and Other Functions .................................................................................................... 18

6-1. Control Panel ......................................................................................................................................... 18

6-2. Errors ...................................................................................................................................................... 18

6-3. Self-Printing ..........................................................................................................................................20

7. Preventing and Clearing Paper Jams .................................................................................................. 21

7-1. Preventing Paper Jams .........................................................................................................................21

7-2. Removing Paper Jam ............................................................................................................................21

7-3. Releasing a Locked Cutter (Auto Cutter Mode only) ......................................................................22

8. Periodical Cleaning ............................................................................................................................. 24

8-1. Cleaning the ermal Head ................................................................................................................ 24

8-2. Cleaning the Rubber Roller ................................................................................................................. 24

8-3. Cleaning the Paper Holder and the Surrounding Area ...................................................................24

9. Peripheral Unit Drive Circuit ............................................................................................................. 25

10. Specications ..................................................................................................................................... 27

10-1. General Specications ..........................................................................................................................27

10-2. Auto Cutter Specications ................................................................................................................... 28

10-3. Ethernet Interface ................................................................................................................................. 28

10-4. Electrical Characteristics .....................................................................................................................28

10-5. Environmental Requirements .............................................................................................................29

10-6. Reliability ............................................................................................................................................... 30

11. DIP Switch Settings ........................................................................................................................... 31

Produktspecifikationer

Varumärke:	Star Micronics
Kategori:	Skrivare
Modell:	TSP143IIIW
Vikt:	1680 g
Bredd:	142 mm
Djup:	204 mm
Höjd:	132 mm
Wi-Fi:	Ja
Wi-Fi-standarder:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Maximal upplösning:	203 x 203 DPI
Snabbstartsguide:	Ja
Modell:	POS-skrivare
Utskriftshastighet:	43 ppm
Maximal rulldiameter:	83 mm
Standardgränssnitt:	Trådlöst lokalt datornät
Skrivhastighet:	250 mm/sek
Produktens färg:	Vit
Temperatur vid drift:	5 - 45 ° C
Temperaturintervall (förvaring):	-20 - 60 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Fuktighet (förvaring):	10 - 90 %
AC-inspänning:	200-240 V
Kabel inkluderad:	AC
Anslutningsteknologi:	Trådlös
Nätverksansluten (Ethernet):	Nej
Strömkälla av typen:	AC
Växelström Frekvens:	50 - 60 hz
AC-adapter inkluderad:	Ja
Antal USB 2.0 anslutningar:	1
USB-port:	Ja
Linux operativsystem som stöds:	Ja
Mac-kompatibel:	Ja
Strömförbrukning:	1000 mA
Utskriftsteknologi:	direkt termal
Skärare:	Ja
Stöds pappersbredd:	58 - 80 mm
Kolumn kapacitet:	48/64
Automatisk sax hållbarhet:	2 miljoner skär
Mean cykler mellan fel (MCBF):	60000000
Inbyggd sensor:	Paper End, Cover Open
Fallfärg:	Vit
Mediats tjocklek:	53 - 85 um
