Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: July 16, 2021 4:40 PM
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
1 1
Product IDs
SHELF-1U-12-FIXED-S
SHELF-1U-12-FIXED-V
SHELF-1U-20-FIXED-S
SHELF-1U-20-FIXED-V

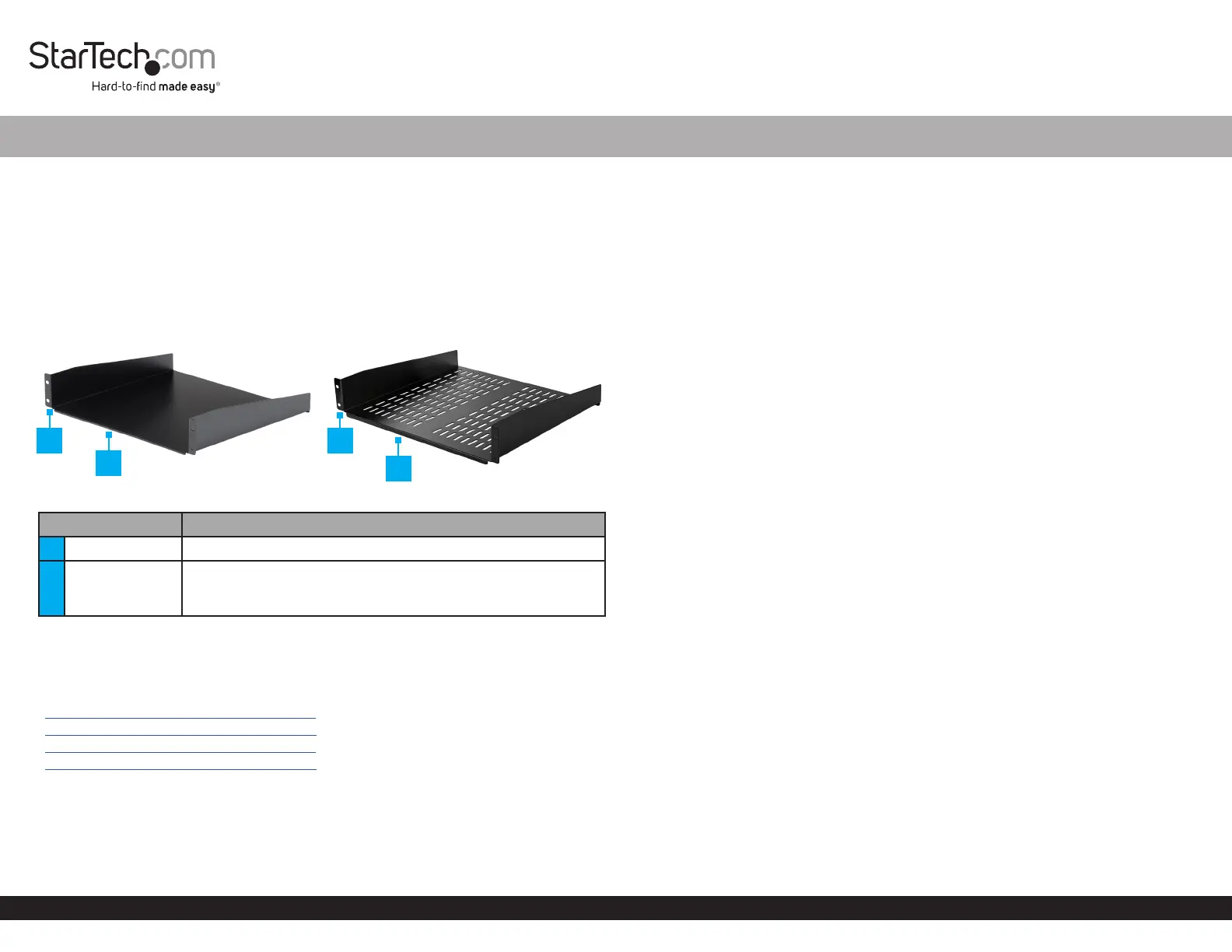

Product Diagrams
Front - Angled View
Solid Vented
Component Function
1Mounting Holes • Mount the into a or .1U Solid/Vented Shelf Rack Cabinet
2Shelf Lip
• Mount the with the 1U Solid/Vented Shelf Shelf Lip
oriented downwards to prevent from catching Equipment
during storage and/or retrieval
Product Information
For the latest manuals, product information, technical specications, and declarations
of conformance, please visit:
www.StarTech.com/SHELF-1U-12-FIXED-S
www.StarTech.com/SHELF-1U-12-FIXED-V
www.StarTech.com/SHELF-1U-20-FIXED-S
www.StarTech.com/SHELF-1U-20-FIXED-V
Requirements
• 1U Available Rack Space
1U Solid/Vented Cantilever Shelf - 12/20 in. Depth
Warnings
• Read the entire manual and ensure the instructions are fully understood before
assembling and/or using this product.
• Before adding equipment to this product, ensure this product has been properly
mounted.
• Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
equipment are possibilities. This product can support the following weight: up
to 55 lb. (25 kg). This product can only support the maximum weight capacity if 4
M6 Screws / Cage Nuts / Plastic Washers are used to ax this product to a rack or
cabinet.
Package Contents
• 1U Solid/Vented Shelf x 1
• M6 Cage Nuts x 4
• M6 Screws x 4
• M6 Plastic Washers x 4
• Quick-Start Guide x 1
Installation
Mount the 1U Solid/Vented Shelf into a Rack or Cabinet
Use the included , w , and to install the M6 Cage Nuts M6 Scre s M6 Plastic Washers 1U
Solid/Vented Shelf.
Notes: This product can support the following weight: 55 lb. (25 kg).
The following installation instructions are for square mounting holes.
1. Locate a suitable location in a or to mount the Rack Cabinet 1U Solid/Vented
Shelf.
Note: The itself requires of space within a or 1U Solid/Vented Shelf 1U Rack
Cabinet.
2. Insert the (side) of an into the back of the a .Wing M6 Cage Nut Cage Nut Hole
3. Insert the second of the into the selected , using Wing M6 Cage Nut Cage Nut Hole
pressure by hand, or with a .Cage Nut Tool
4. Repeat steps 2 and 3 to insert a total of 4 . Cage Nuts
*Product may vary from images
22
