Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: November 12, 2020

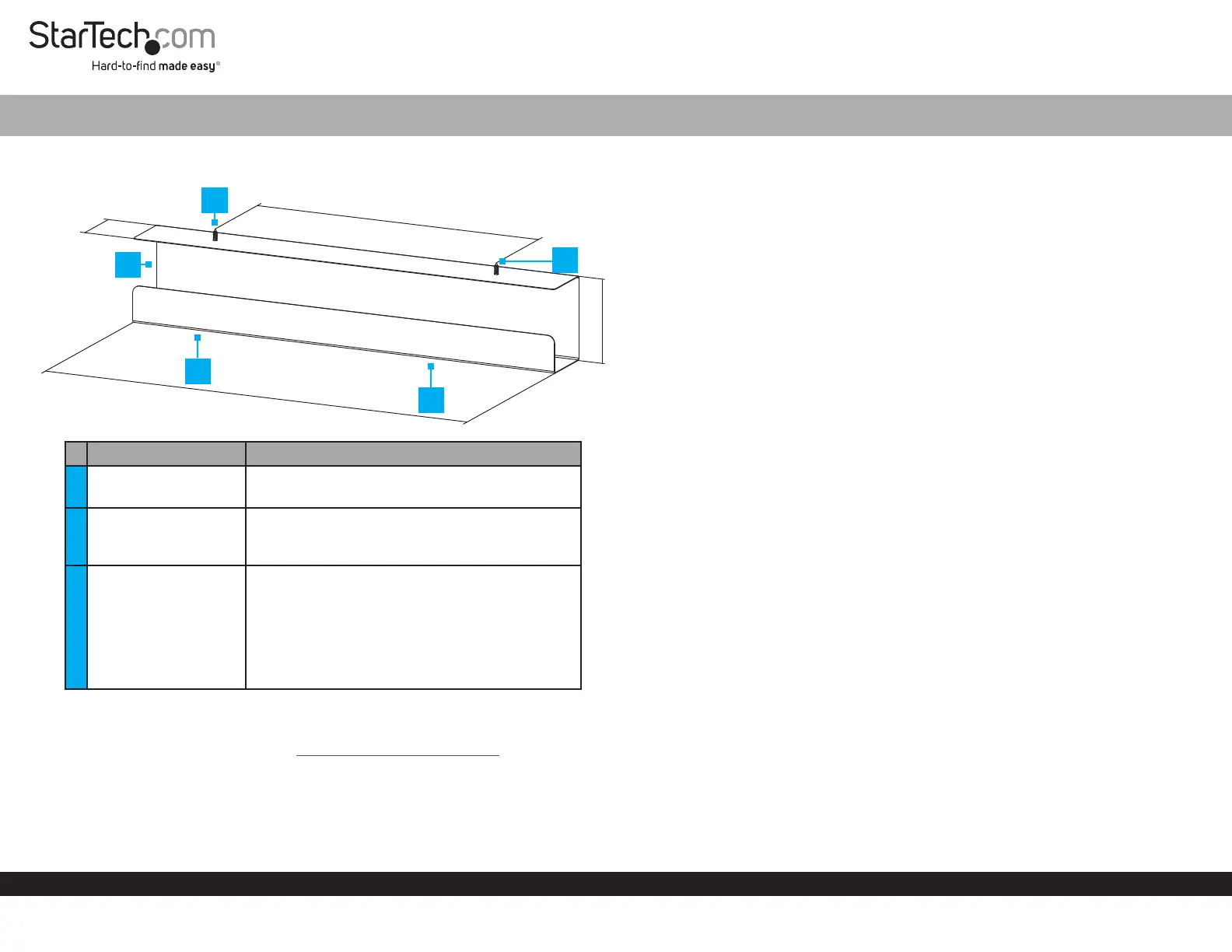

Product Diagram (UDCMTRAY)

ComponentsFunction

1Cable Tray Organizer

• Organize and hide Cables

• Hide a Power Strip

2

Mounting Holes/

Screws

• Mount the Cable Tray Organizer underneath

a Desk

• #12 Phillips® Head Screws

3

Screwdriver Access

Holes

• Cutouts that allow a Phillips Head

Screwdriver or a Phillips Head Drill Bit to

pass through the bottom of the Cable Tray

Organizer

Note: A long Phillips Head Screwdriver or a

Drill Bit Extension may be required to fasten the

Mounting Screws.

Requirements

For the latest requirements, please visit www.startech.com/UDCMTRAY.

• #3 Phillips Head Screwdriver or a Power Drill with a Phillips Head Bit x 1

• Power Drill with a Drill Bit x 1

• Pencil x 1

• (Optional) Drill Bit Extension x 1

Under Desk Cable Tray Organizer

Installation

Note: It is easier to complete the following installation steps with two people.

1. Hold the Cable Tray Organizer in the desired location under the Desk, with the

Mounting Holes resting against the underside of the Desk.

2. Mark the location of the Mounting Holes using a Pencil.

3. Use a Power Drill with an appropriately sized Drill Bit to drill Pilot Holes into the

locations of the Mounting Holes.

Notes: The Pilot Holes should be the same depth as the length of the Mounting

Screws. A small piece of tape can be placed on the Drill Bit to mark the proper depth

of the Pilot Holes.

The Drill Bit size will be determined by the wood used to construct the Desk. Consult a

professional if you are unable to determine the proper Drill Bit size.

4. Insert the Mounting Screws through the Mounting Holes and into the Desk.

(Figure 1)

5. Fasten the Screws into the Desk using a Phillips Head Screwdriver or a Power

Drill with a Phillips Head Bit.

114mm

76mm

600mm

400mm

1

2

2

3

3
