Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: April 8, 2024 3:55 PM

For additional self-service support options and community forums, please visit: www.StarTech.com/support

Product ID

UNIRAILS1U / UNIRAILS2U / UNIRAILS3U - Revision 02 or above

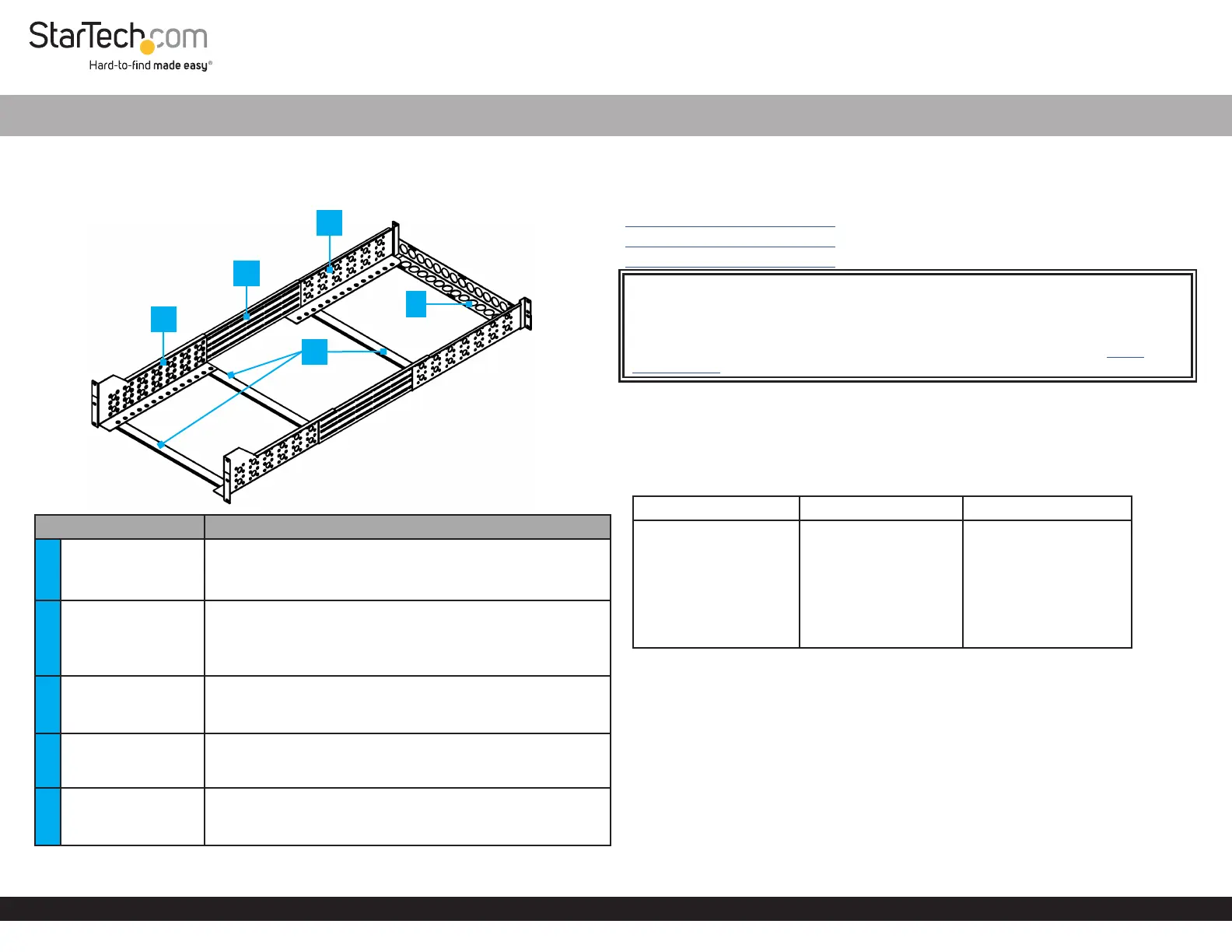

ComponentFunction

1

Front Rail - Rack Rail

Assembly

• Attaches onto the Front Mounting Posts of a Rack

• Slide along the Middle Sliding Rail to adjust depth

2

Middle Sliding Rail -

Rack Rail Assembly

• Fully assembled with Front and Rear Rails

• Loosen Connecting Screws to adjust the depth of the

Front and Rear Rails

3

Rear Rail - Rack Rail

Assembly

• Attaches onto the Rear Mounting Posts of a Rack

• Slide along the Middle Sliding rail to adjust depth

4Cross Braces

• Supports the weight of 19in Non-Rackmount Equipment

• Attaches to the Left and Right Rack Rail Assemblies

5

Cable Management

Plate

• End plate with Cable Management Holes

• Prevents Equipment from sliding o the rear of the Rack

Rails

1U/2U/3U Fixed 19” Adjustable Depth Universal Server Rack Rails

Information

For the latest manuals, product information, technical specications, and declarations of

conformance, please visit:

www.StarTech.com/UNIRAILS1U

www.StarTech.com/UNIRAILS2U

www.StarTech.com/UNIRAILS3U

How to Identify the LOT Code Revision Number

The Revision Number (Rev #) appears as the fth and sixth digits of the LOT code,

located on the sticker axed to the product and its packaging. If the LOT code sticker

is missing, the product is Rev 01. Refer to the specic Product ID page on www.

StarTech.com to download the manual for Revision 01.

Requirements

• Phillips Head Screwdriver

• (Optional) Cage Nut Tool

Package Contents

UNIRAILS1UUNIRAILS2UUNIRAILS3U

1 - Set Universal Rack Rails

6 - Cross Brace Screws

8 - M5 Panel Screws

8 - M5 Cage Nuts

1 - M5 Wrench

1 – Quick-Start Guide

1 - Set Universal Rack Rails

6 - Cross Brace Screws

16 - M5 Panel Screws

16 - M5 Cage Nuts

1 - M5 Wrench

1 – Quick-Start Guide

1 - Set Universal Rack Rails

6 - Cross Brace Screws

14 - M5 Panel Screws

14 - M5 Cage Nuts

1 - M5 Wrench

1 – Quick-Start Guide

Warnings!

Read the entire Quick-Start Guide and ensure the instructions are fully understood

before assembling and using this product. Before adding equipment to this product,

ensure this product has been properly mounted. Never operate this product if parts are

missing or damaged. Ensure the weight of the equipment does not exceed the weight

capacity of this product. If the weight capacity is exceeded, personal injury or damage

to the equipment is possible. These products can support the following weights:

UNIRAILS1U: up to 55.1 lb (25 kg)

UNIRAILS2U: up to 99.8 lb (45.2 kg)

UNIRAILS3U: up to 214.5 lb (97.3 kg)

All four mounting points must be properly secured to each of the posts on a four-post

rack. Never exceed the maximum mounting depth specication for this shelf: 41.5in

(1055mm)

*Product may vary from image

5

3

1

2

4
