Sida 1/6

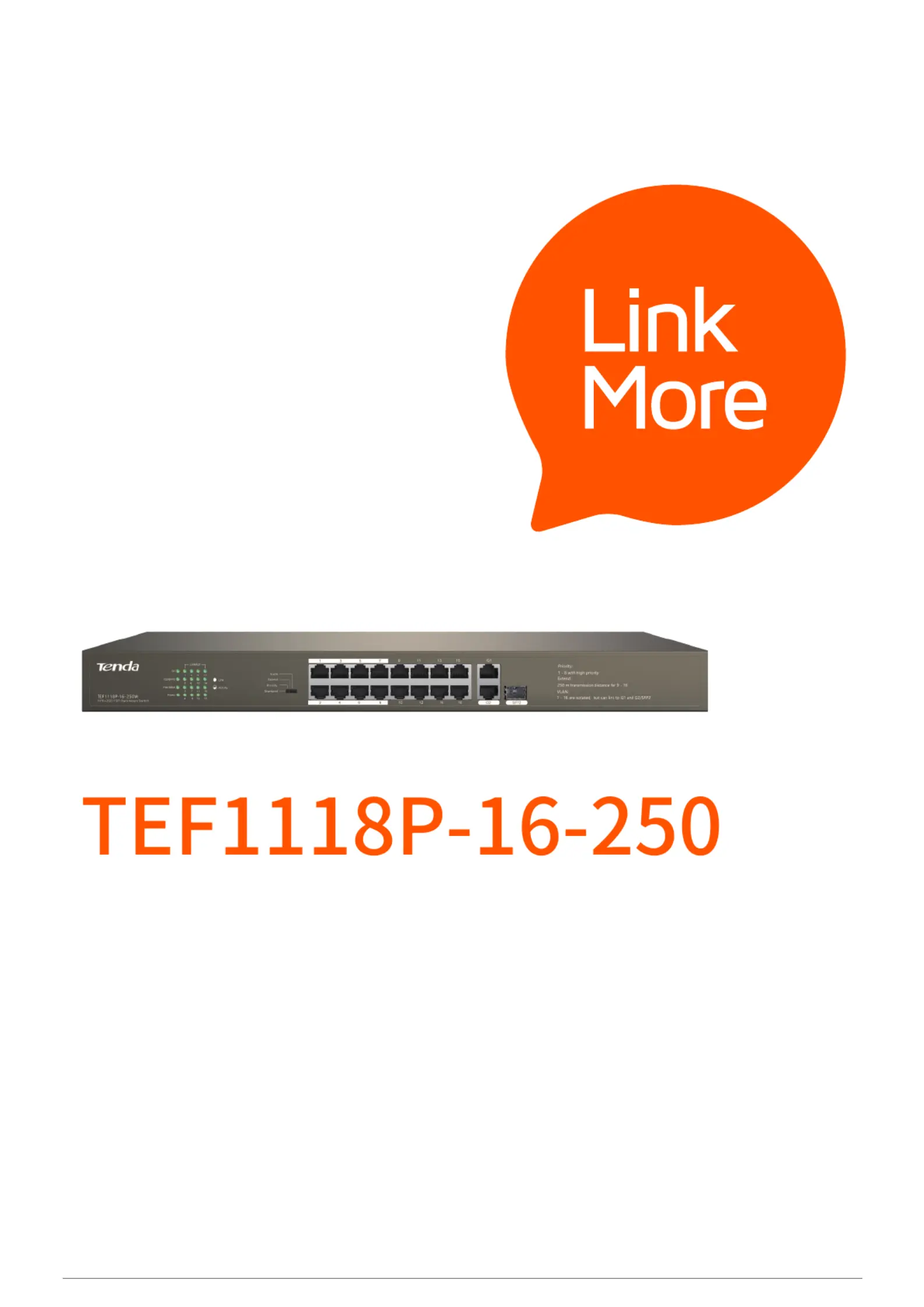

TEF1118P-16-250W

16FE+2GE/1SFP Rackmount Switch With 16-Port PoE

www.tendacn.com

Products Description

16FE+2GE/1SFP Rackmount Switch With 16-Port PoE

TEF1118P-16-250W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE

802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE

power output of 250 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP

cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and

VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless

networking requirements.

16FE+2GE/1SFP Rackmount Switch With 16-Port PoE

 Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and

IEEE802.3af/at standards.

 16 * 10/100 Mbps Base-TX RJ45 ports for data transmission and power supply,

2 * 10/100/1000 Mbps Base-T RJ45 ports for datatransmission, 1 * 10/100/1000 Mbps

Base-X combo SFP slot.

 4 K MAC address table and MAC address auto-learning.

 IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control.

 7.2 Gbps backplane bandwidth.

 Maximum power consumption of a single port: 30W; Maximum power consumption of the

switch: 230W.

 2.75 MB cache size for smooth video surveillance.

 4 modes: standard, priority, extend and VLAN.

6 kV lightning protection

The switch offers various safety and protection types, including 6 kV lightening protection,

PSE short-circuit protection, PoE overload protection, surge current protection etc.

Gigabit uplink port

With one 10/100/1000 Mbps combo SFP slot, the switch can meet the current demand

for uplink bandwidth of Gigabit WLAN and HD digital surveillance.

230 W PoE power supply

The switch features 16 IEEE 802.3at/af-compliant RJ45 ports. The entire switch offers a

maximum PoE power output of 230 W, and 30 W for a single port, to supply power to and

data transmission with 16 PoE-powered devices such as APs and IP cameras.

Key Feature

Product Features

One-Key to switch 4 modes

It supports 5 working modes, including standard, priority, extend and VLAN modes. The

hardware DIP mode switch makes networking straightforward and effortless.

AF / AF

6KV

Produktspecifikationer

Varumärke:	Tenda
Kategori:	brytare
Modell:	TEF1118P-16-250W
Bredd:	440 mm
Djup:	178.8 mm
Höjd:	44 mm
LED-indikatorer:	Activity, Link, Power
Strömförbrukning (max):	250 W
Certifiering:	CCC、FCC、CE、RoHS
Rackmontering:	Ja
Paketbuffertminne:	2.75 MB
Full duplex:	Ja
Produktens färg:	Grå
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Total Power over Ethernet (PoE)-budget:	230 W
Power over Ethernet (PoE)-effekt per port:	30 W
Temperatur vid drift:	0 - 45 ° C
Temperaturintervall (förvaring):	-40 - 70 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Fuktighet (förvaring):	5 - 90 %
VLAN-stöd:	Ja
AC-inspänning:	100 - 240 V
Växelström Frekvens:	50 - 60 hz
Kommunikationsstandarder:	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Harmonized System (HS)-kod:	85176990
Adresstabellstorlek:	4000 poster
Switch kapacitet:	7.2 Gbit/s
Hastighet vid vidarebefordran:	5.36 Mpps
10G stöd:	Nej
Flödeskontroll:	Ja
Antal grundläggande RJ-45 Ethernet-portar:	16
Typ av grundläggande RJ-45 Ethernet-portar:	Fast Ethernet (10/100)
Switch typ:	Ohanterad
Antal SFP-modulplatser:	1
Antal Gigabit Ethernet (koppar)-portar:	2
Power over Ethernet (PoE)-portar kvantitet:	16
Fiber Ethernet-kablar teknik:	1000Base-X
Överföringsavstånd (max):	20 km
