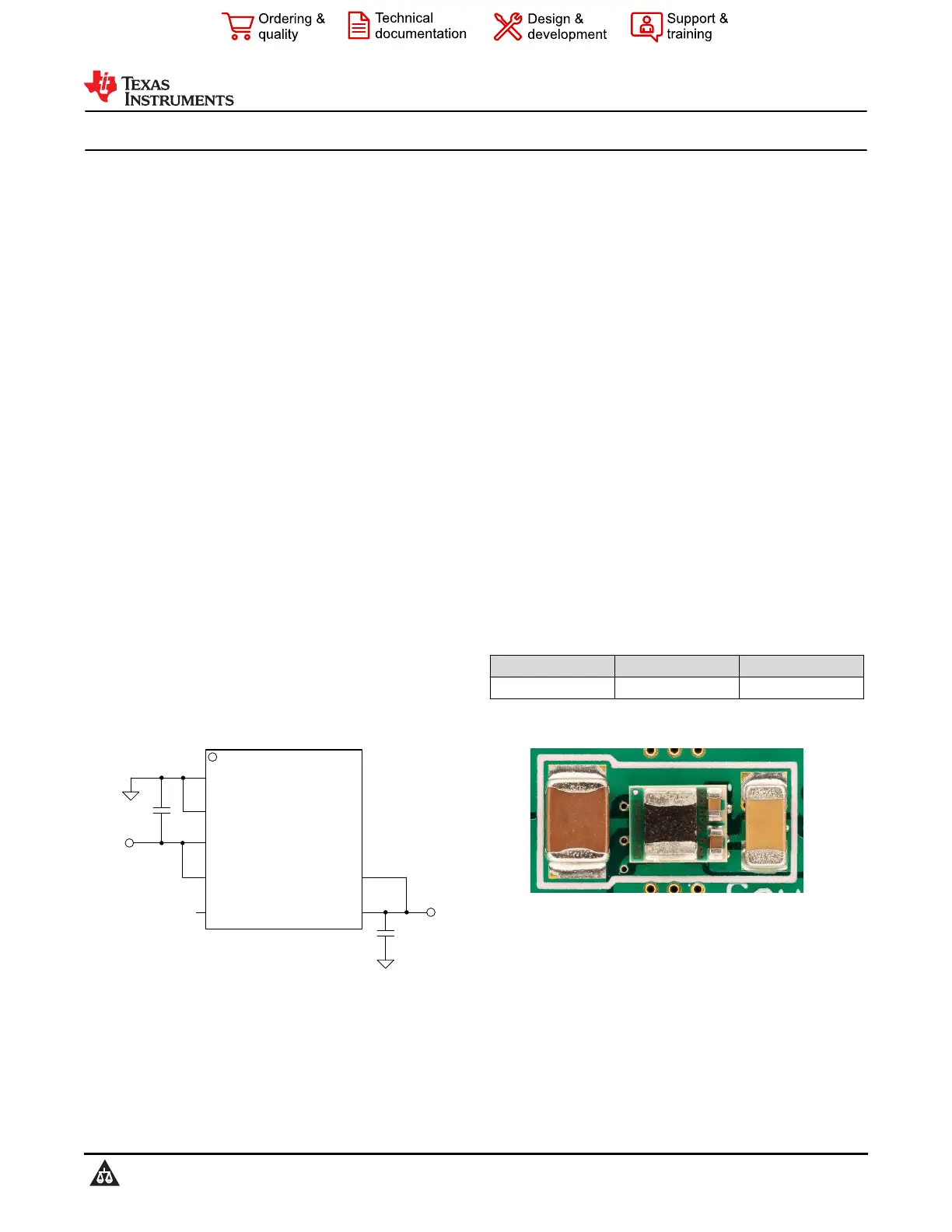

LMZM23600 36-V, 0.5-A Step-Down DC/DC Power Module in 3.8-mm × 3-mm Package

1 Features

•4-V to 36-V wide operating input voltage

•1.2-V to 15-V adjustable, and 3.3-V or 5-V fixed

output voltage options

•0.5-A Output current

•Only input and output capacitors needed for 5-V

and 3.3-V output designs

•27-mm

2

Solution size with single-sided layout

•28-µA supply current at no load

•2-µA shutdown current

•Power-good flag

•External frequency synchronization

•MODE selection pin

–Forced PWM mode for constant frequency

operation

–Auto PFM mode for high efficiency at light load

•Built-in control loop compensation, soft start,

current limit, and UVLO

•Miniature 3.8-mm × 3-mm × 1.6-mm package

•Create a custom design using the LMZM23600

with the WEBENCH

®

Power Designer

2 Applications

•Sensor transmitters

•Test and measurement

•Grid infrastructure

•Space constrained applications

3 Description

The LMZM23600 integrated-inductor power module is

specifically designed for space-constrained industrial

applications. The device is available in two fixed

output voltage options of 5 V and 3.3 V, and an

adjustable (ADJ) output voltage option supporting

a 1.2-V to 15-V range. The LMZM23600 has an

input voltage range of 4 V to 36 V and can

deliver up to 500-mA of output current. This power

module is extremely easy to use, requiring only

two external components for a 5-V or 3.3-V output

design. All aspects of the LMZM23600 are optimized

for performance driven and low EMI industrial

applications with space-constrained needs. An open-

drain, Power-Good output provides a true indication

of the system status and negates the requirement

for an additional supervisory component, saving cost

and board space. Seamless transition between PWM

and PFM modes along with a no-load supply current

of only 28 µA ensures high efficiency and superior

transient response for the entire load-current range.

For easy output current scaling the LMZM23600 is

pin-to-pin compatible with the 1000-mA output current

capable LMZM23601.

Package Information

PART NUMBERPACKAGE

(1)

BODY SIZE (NOM)

LMZM23600SIL (MicroSiP

™

, 10)3.80 mm × 3.00 mm

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

Copyright © 2017, Texas Instruments Incorporated

GND

V

IN

C

IN

GND

MODE/

SYNC

VIN

EN

PGOOD

FB

VOUT

V

OUT

GND

C

OUT

Schematic for Fixed Output Option 24-V to 5-V, 0.5-

A DC/DC Converter

C

IN

C

OUT

DC-DC Module

Single-Sided Layout Solution Size 24-V to 5-V, 0.5-

A DC/DC Converter

LMZM23600

SNVSB53C – FEBRUARY 2018 – REVISED MARCH 2023

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
