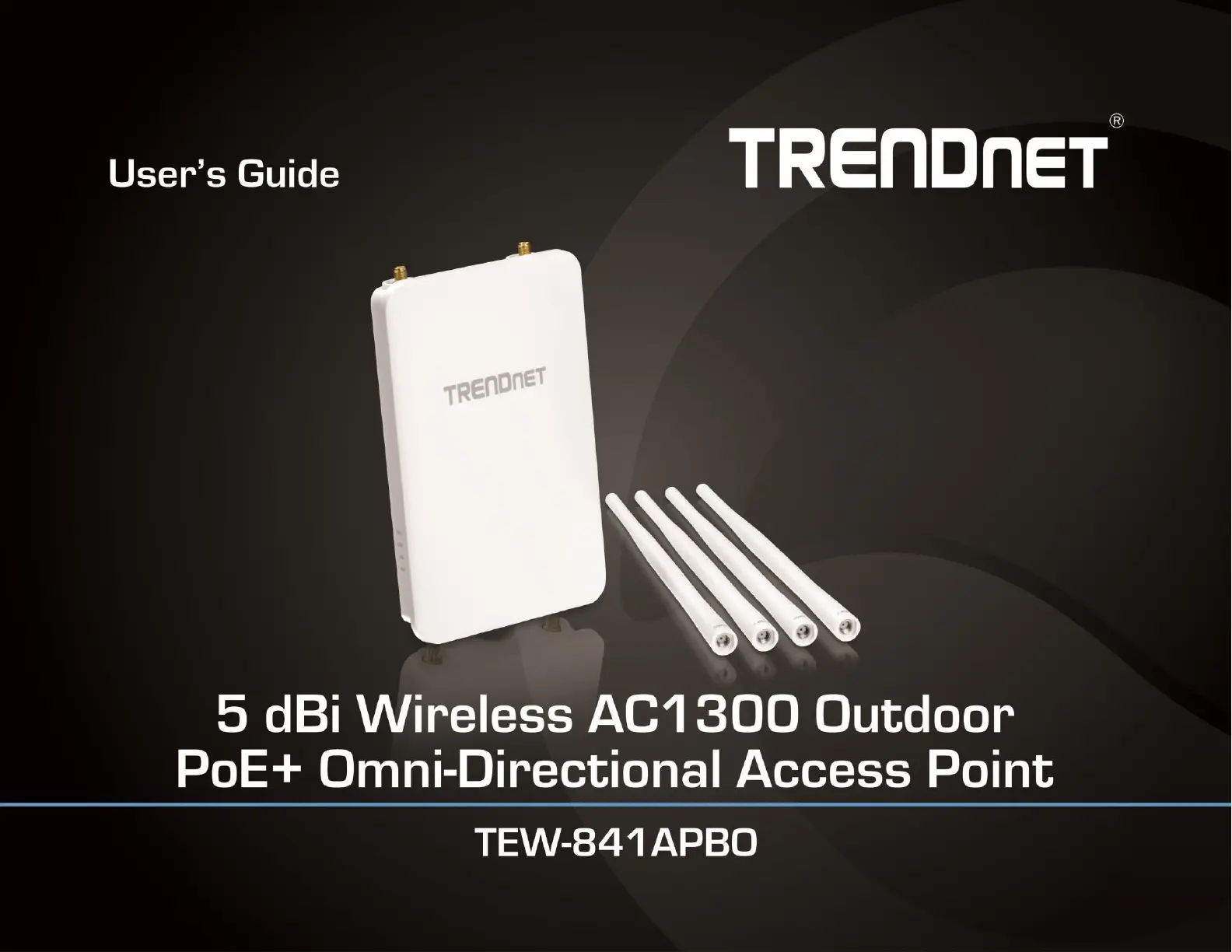

TRENDnet User’s Guide

Cover Page

TRENDnet User’s Guide

Table of Contents

Contents

Product Overview ........................................................................... 1

Package Contents .......................................................................................................... 1

Features ......................................................................................................................... 1

Product Hardware Features........................................................................................... 3

Primary Product Application ........................................................... 5

Application Diagram ...................................................................................................... 5

Minimum Installation Requirements ............................................... 6

Wireless Installation Tips................................................................. 6

Quick Reference .............................................................................. 7

TEW-841APBO ............................................................................................................... 7

TEW-841APBO Basic Installation and Configuration (Basic Access Point

Setup) ............................................................................................. 8

Hardware Setup ............................................................................................................. 8

Basic Access Point Configuration ................................................................................... 8

TEW-841APBO Basic Installation and WDS Configuration (5GHz WDS

Bridge & 2.4GHz AP) ...................................................................... 12

Note the WiFi MAC Addresses ..................................................................................... 12

Hardware Setup ........................................................................................................... 13

TEW-841APBO #1 Configuration ................................................................................. 13

TEW-841APBO #2 Configuration ................................................................................. 18

Confirm Connectivity ................................................................................................... 19

Completed Installation Reference ............................................................................... 20

Hardware and Mounting Installation ............................................. 21

Waterproof Kit Installation .......................................................................................... 21

Pole Mount Installation ............................................................................................... 22

Application Modes ........................................................................ 23

Access Point (AP) ......................................................................................................... 23

Client Bridge ................................................................................................................ 23

WDS Access Point (WiFi Distribution System) ............................................................. 24

WDS Station ................................................................................................................. 24

WDS Bridge .................................................................................................................. 25

Accessing your access point management page ............................. 26

Access your access point management page .............................................................. 26

Overview ...................................................................................... 27

Device Status ............................................................................................................... 27

Connections ................................................................................................................. 29

Real-time ..................................................................................................................... 29

Network ....................................................................................... 30

Basic ............................................................................................................................. 30

Wireless ....................................................................................................................... 31

Management ................................................................................ 37

Advanced ..................................................................................................................... 37

Time Zone .................................................................................................................... 38

WiFi Scheduler ............................................................................................................. 39

Tools ............................................................................................................................ 40

System Manager ........................................................................... 42

Account ........................................................................................................................ 42

Firmware ..................................................................................................................... 42

System Log ................................................................................................................... 44

Technical Specifications ................................................................ 45

Produktspecifikationer

Varumärke:	Trendnet
Kategori:	accesspunkt
Modell:	TEW-841APBO
Vikt:	302 g
Bredd:	111 mm
Djup:	174 mm
Höjd:	38 mm
LED-indikatorer:	Ja
Placering:	Vägg
Frekvensband:	2.4GHz: 2.412-2.462; 5GHz: 5.180-5.240, 5.745-5.825 GHz
Snabbstartsguide:	Ja
Strömförbrukning (max):	12.6 W
Certifiering:	FCC\nIC
MAC-adressfiltrering:	Ja
MIMO-typ:	Multi User MIMO
Antennanslutning:	RP-SMA
Maximal dataöverföringshastighet:	1300 Mbit/s
2,4 GHz:	Ja
5 GHz:	Ja
Antal kontakter:	4
Produktens färg:	Vit
Monteringssats:	Ja
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Antal LAN (RJ-45) anslutningar:	1
Temperatur vid drift:	-22 - 60 ° C
Intervall för relativ operativ luftfuktighet:	0 - 90 %
VLAN-stöd:	Ja
Internationellt skydd (IP) kod:	IP67
Kryptering/säkerhet:	SNMP, SNMPv3, WEP, WPA, WPA-PSK, WPA2-PSK, WPA2-RADIUS
Mottagningskänslighet:	802.11a: -72 dBm @ 54 Mbps\n802.11b: -87 dBm @ 11 Mbps\n802.11g: -72 dBm @ 54 Mbps\n802.11n (2.4 GHz): -67 dBm @ 400 Mbps\n802.11n (5 GHz): -61 dBm @ 400 Mbps\n802.11ac: -58 dBm @ 867 Mbps
Överföringseffekt:	19 dBmW
Modulator:	16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, DSSS, OFDM, PSK, QPSK
Webbaserad adminstraion:	Ja
Antenn ökningsnivå (max):	5 dBi
Kommunikationsstandarder:	IEEE 802.11a, IEEE 802.11b, IEEE 802.11k, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Stöd för garanterad tjänstekvalitet (QoS):	Ja
Antenntyp:	Extern
Antennens riktningstyp:	Rundstrålande
Wi-Fi Multimedia (WMM)/(WME):	Ja
Antal SSID som stöds:	8
MIMO:	Ja
