1 947598
ISSUE 1
VIP- 996
IP THREAT LEVEL INDICATOR
INTRODUCTION
T VIP-996 IP Threat Level Indicator he
notication appliance provides bright LED
display with both power and activation
provided by the IP network.
SPECIFICATIONS
Features
Mounts in a standard 2-gang FD electrical
box
Power over Ethernet (PoE) 802.3af
compatible
Activation Methods
Valcom Group Page
Dimensions / Weight
4. "H x 4.55"W x 1.55 50"D
( . cm H x 11.55cm W x 3. cm D)11 55 81
0.45 lbs. (0.20 kg)
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch 3W
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
Suitable for indoor installation
These products are intended for use with a UL
Listed power source marked “Class 2” or
“LPS” rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended
for intra-building.
Precautionary Designations
WARNING-To Reduce The Risk Of Fire
Or Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
•AVERTISSEMENT - An de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système
à la pluie ou à l'humidité.
Apparatus shall not be exposed to
dripping or splashing and no objects
lled with liquids, such as vases, shall
be placed on the apparatus.
• L’appareil ne doit pas être exposé à
des égouttements et éclaboussures et
aucun Objet Rempli de liquide, comme
vase, ne doit être placé sur l’appareil.
FCC Information
This equipment has been tested and found
to comply with the limits for a Class A
digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference when the equipment
is operated in a commercial environment.
This equipment generates, uses and can
radiate radio frequency energy and if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential
area may cause harmful interference in
which case the user will be required to
correct the interference at one’s own
expense.
2 947598
CAUTION: To reduce the risk of electric shock,
Do not remove cover (or back).
No user serviceable parts inside.
Refer servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
INSTALLATION

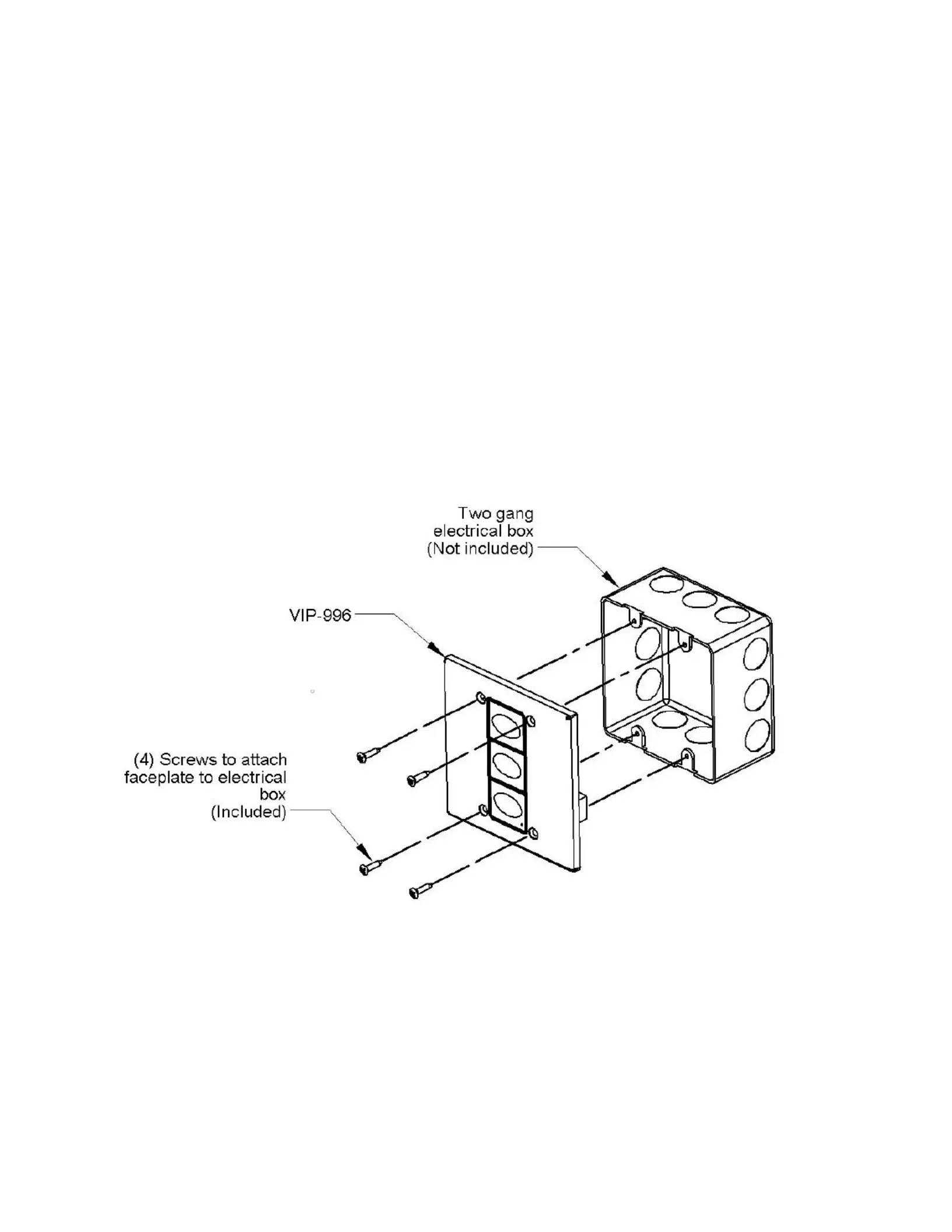

Mounting
The VIP-996 is designed for double gang FD
electrical box mounting. Verify depth of
electrical box is adequate for mounting the
VIP-996.
Valcom recommends installing the VIP-996
vertically with the at the top. RED LED
Note: The orientation indicator, as shown
in the diagram.
Power Connections
The only method of powering the VIP-996 is
via a Power over Ethernet (PoE) switch or
power injector meeting the 802.3af
specication. Make all required signal
connections before connecting to Ethernet
switch or power injector meeting the 802.3af
specication.
Operation
The VIP-996 provides private mode
notication via network connection.
The VIP-996 includes three color indicators:
Red, Yellow and Green. LED activation is
controlled using Valcom paging group
protocol.
Setup
Information specific to your application will
need to be programmed into the VIP-996
using a computer. The PC used for
programming should be connected to the
same subnet as the VIP-996. Setup will be
done using the IP Solution Setup Tool.
Download the latest version of the free IP
Solutions Setup Tool from the Valcom web
site at www.valcom.com/vipsetuptool.
IMPORTANT SAFETY INFORMATION
CONSIGNES DE SÉCURITÉ IMPORTANTES
1. Read these instructions.
Lisez ces instructions.
2. Keep these instructions.
Conservez ces instructions.
3. Heed all warnings.
Respectez tous les avertissements.
4. Follow all instructions.
Suivez toutes les instructions.
5. Do not use this apparatus near water.
Ne pas utiliser cet appareil près de l'eau.
6. Clean only with dry cloth.
Nettoyer avec un chion sec.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Ne pas bloquer les ouvertures de ventilation. Installer formément aux instructions du
fabricant.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including ampliers) that produce heat.
Ne pas installer à proximité de sources de chaleur telles que radiateurs, registres de
chaleur, poêles ou autres appareils (y compris les amplicateurs) produisant de la chaleur.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade and the third prong are provided for your safety. If
the provided plug does not t into your outlet consult an electrician for replacement of the
obsolete outlet.
Ne pas contourner le dispositif de sécurité de la che polarisée ou de mise à la terre. Une
che polarisée possède deux lames dont une plus large que l'autre. Une che de terre a
deux lames et une troisième broche de mise à la terre. La lame large et la troisième
broche sont fournies pour votre sécurité. Si la che fournie ne rentre pas dans votre prise,
veuillez consulter un électricien pour le remplacement de la prise obsolète.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
11.Only use attachments/accessories specied by the manufacturer.
N'utilisez que des xations / accessoires spéciés par le fabricant.
12. Use only with the cart, stand, tripod, bracket or table specied
by the manufacturer or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Utilisez uniquement avec le chariot, stand, trépied, support ou table spécié par le
fabricant ou vendu avec l'appareil. Quand un chariot est utilisé, Soyez prudent lorsque
vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au
renversement.
13. Unplug this apparatus during lightning storms or when unused for a long period of time.
Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant une
longue période de temps.
14. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way. Such as when the power supply cord or plug is
damaged, liquid has been spilled, objects have fallen into the apparatus or the
apparatus has been exposed to rain or moisture and does not operate normally or has
been dropped.
Conez toute réparation à un personnel qualié. Une réparation est nécessaire lorsque
l'appareil a été endommagé de quelque façon. Par exemple lorsque le cordon
d'alimentation ou la che est endommagé, du liquide a été renversé, si des objets sont
tombés dans l'appareil ou le appareil a été exposé à la pluie ou à l'humidité et ne
fonctionne pas normalement ou s'il est tombé.
947598
3
TECHNICAL ASSISTANCE
Assistance in troubleshooting is available from
the factory. Call (540) 563-2000 and press 1
for Technical Support or via email at
support@valcom.com.
When requesting assistance, you should
include all available information. General
information and troubleshooting procedures
are available on the Valcom website at
www.valcom.com .
Valcom equipment is not eld repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA.
Should repairs be necessary, attach a tag to
the unit clearly stating your company name,
address, phone number, contact person and
the nature of the problem. Send the unit to:
Valcom, Inc.
Repair & Return Dept.
5614 Hollins Road
Roanoke, Va. 24019-5056
WARRANTY
Warranty information may be found on our
website at www.valcom.com/warranty
