Rev. 9/13/2016 CH, MANUAL
Copyright 2016 Vestil Manufacturing Co. Page 1 of 7
CH-SERIES COIL HOOKS
U
SE AND MAINTENANCE MANUAL
Receiving instructions:
After delivery, IMMEDIATELY remove the packaging from the product in a manner that preserves the packaging and
maintains the orientation of the product in the packaging; then inspect the product closely to determine whether it
sustained damage during transport. If damage is discovered during the inspection, immediately record a
complete description of the damage on the bill of lading. If the product is undamaged, discard the packaging.
NOTES:
1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where the product
is used is exclusively the responsibility of the owner/end-user.
2) VESTIL is not liable for any injury or property damage that occurs as a consequence of failing to apply either: a)
the instructions in this manual; or b) information provided on labels affixed to the product.
Vestil is not responsible for any consequential damages sustained as a result of failing to exercise sound judgment
while assembling, installing, using or maintaining this product.
VESTIL MANUFACTURING CORP.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail: sales@vestil.com
Table of Contents
Product specifications…………………………………………………………………………………………………………. 2
Signal words…………………………………………….……………………………………………………………………… 3
Safe use recommendations…………………………..…………………………………..…………………….…… …. …… 3
FIG. 1: CH-series coil hooks exploded parts diagrams & bill of materials………………………………………………. 4
Use instructions………………………………………………………….……………………………………………….. …… 4 - 5
Inspections & Maintenance………………………………………………………………………………………….. …. …… 6
Label placement diagram …………..
…………………………………………………………................................... …… 6
Limited warranty………………………………………………………………………………………………………….. …… 7
Rev. 9/13/2016 CH, MANUAL
Copyright 2016 Vestil Manufacturing Co. Page 2 of 7
Product specifications:

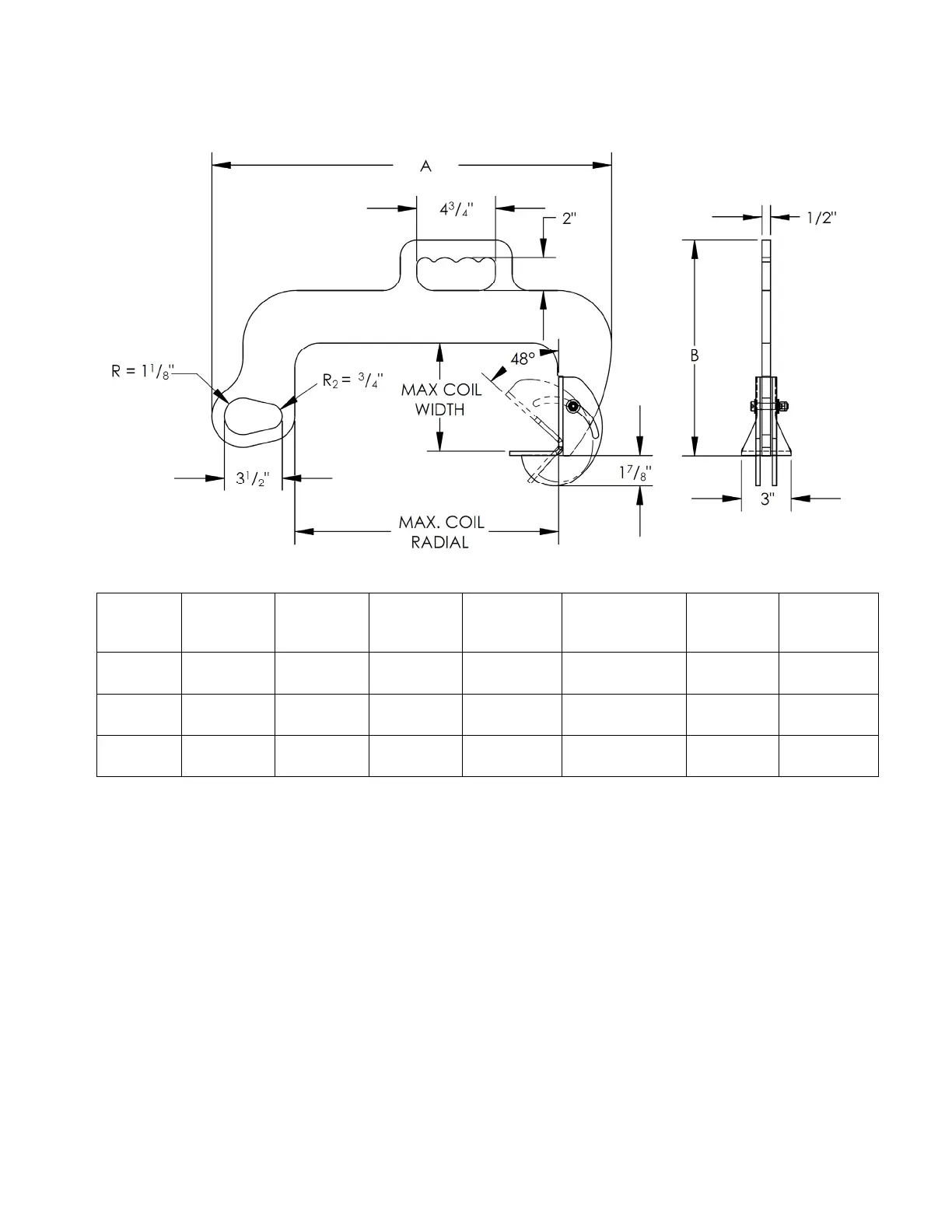

Dimensions and other product information appear in the diagrams and table below.
Model A B
Maximum
Coil Width
Maximum
Coil Radial
Minimum Coil
Inside (Open)
Diameter
Uniform
Capacity
Net
Weight
CH-10-6
24
1
/
8
in.
61.3 cm
13
1
/
16
in.
33.2 cm
6 in.
~15.2 cm
13 in.
~33.0 cm
9 in.
~22.9 cm
1,000 lb.
(~454.5 kg)
19.12 lb.
(8.7 kg)
CH-10-12
24
1
/
8
in.
61.3 cm
19
1
/
16
in.
48.4 cm
12 in.
~30.5 cm
13 in.
~33.0 cm
13 in.
~33.0 cm
1,000 lb.
(~454.5 kg)
24.51 lb.
(11.14 kg)
CH-20-8
27
1
/
8
in.
68.9 cm
15
1
/
16
in.
38.3 cm
8 in.
~20.3 cm
16 in.
~40.6 cm
10 in.
~25.4 cm
2,000 lb.
(~909.1 kg)
22.28 lb.
(10.13 kg)
Produktspecifikationer
