Table of Contents Rev. 4/5/2019 MTC MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Co. Page 1 of 9
MTC-Series Manual Trash Compactors
Instruction Manual
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product closely to determine whether it
sustained damage during transport. If damage is discovered, record a complete description of it on the bill of lading.
If the product is undamaged, discard the packaging.
NOTE:
The end-user is solely responsible for confirming that product design, use, and maintenance comply with laws,
regulations, codes, and mandatory standards applied where the product is used.
Replacement Parts and Technical Service:
For answers to questions not addressed in these instructions and to order replacement parts, labels, and
accessories, call our Technical Service and Parts Department at (260) 665-7586. The department can also be
contacted online at http://www.vestilmfg.com/parts_info.htm
.
Table of Contents
Signal Words...…………………………………………………..……………………………………………………………… 2
Specifications………………………………..…………………….….………………………………………………………… 2
Exploded View and Bill of Materials…………………………….……………………………………………….………….... 3
Assembling the Compactor..……………………………………………………………………………………….. ………… 4, 5
Assembling Optional Roll-Out Base MTC-RB………………………………………………………………………………..5
Exploded View: Roll-Out Base Option (MTC-RB)………………………………………………………………………...… 6
MTC-RB Assembly Diagrams…………………………………………………………………………………………………. 6
Using the Compactor.……………..…………………………………………………………………………………………… 7
Labeling Diagram………………………………………………………………………………………………………………..7
Moving the Compactor…………..
…………………………………………………………................................................. 8
Record of Original Condition………………………………………………………………………………………………...... 8
Maintenance & Inspections……………………………………………………………………………………………………. 8
Limited Warranty…...…………………………………………………………………………………………………………… 9
Vestil Manufacturing Co.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Website: www.vestilmfg.com e-mail: info@vestil.com
Table of Contents Rev. 4/5/2019 MTC MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Co. Page 2 of 9
Signal Words
This manual classifies personal injury risks and situations that might cause property damage with “Signal words”.
Signal words indicate the seriousness of injuries that might result if a particular act or omission occurs.
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or
SERIOUS INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
Identifies practices likely to result in product/property damage, such as operation that might
damage the boom.
Specifications
The jack produces 7,000 pounds of compacting force, which allows the operator to reduce the size of waste
material and optimize space in waste storage drums. Both MTC models include wheels on one side of the base plate
to allow an operator to easily reposition the unit. Each compactor has a pin to secure the handle while it is not in use.

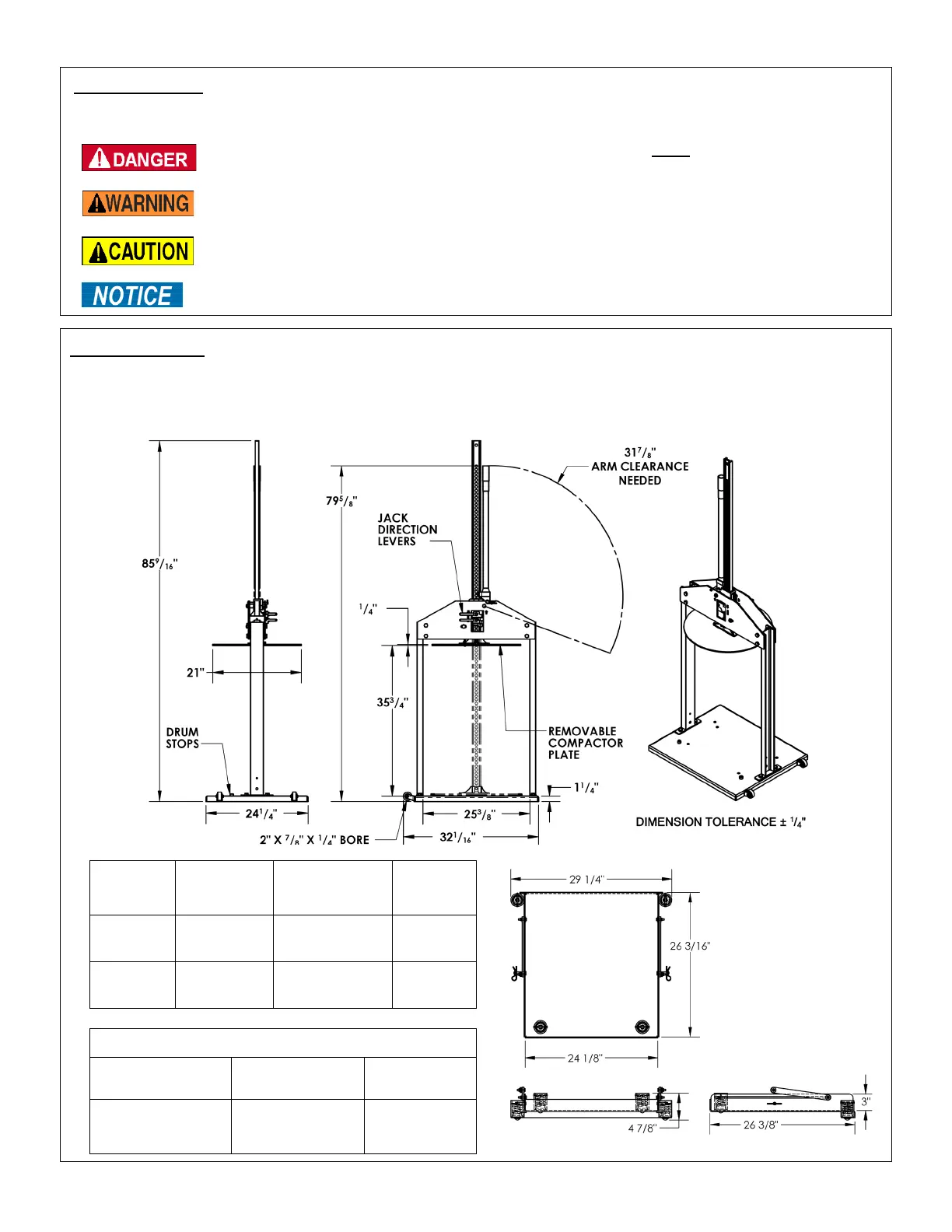

Dimensions, net weight, and maximum compacting force figures appear in the following diagrams and tables.
Model
Platen
Diameter
Maximum
Compacting
Force
Net
Weight
MTC-30
17” 7000 lb. 158 lb.
43.2 cm ~3182 kg 71.7 kg
MTC-55
21”
7000 lb.
167 lb.
53.3 cm
~3182 kg
75.9 kg
Optional Equipment
Model
Roll-Out Load
Capacity
Net Weight
MTC-RB
(ROLL-OUT
BASE)
800 lb.
~364kg
58 lb.
26.1 kg
Optional Roll-Out
Base (MTC-RB)
