Sida 1/2
Viale Vicenza 14
36063 Marostica VI - Italy
www.vimar.com
09134 01 2502
NEVE UP
09134
Universal dimmer 220 - 240 V~ 50/60 Hz for ceiling fans 15-150 W, ON/OFF control
and regulation by built-in push buttons, ON/OFF control with NO peripheral push
buttons, minimum fan adjustment, settable visible in darkness. Not suitable for
installation in Isoset enclosures.
CHARACTERISTICS.
• ON, OFF and motor speed change with built-in push buttons.
• 4 motor speed adjustment levels:
- OFF
- V1 = 5 - 25%
- V2 = 50%
- V3 = 75%
- V4 = 100%
• Thermal protection with flashing-lamp blow-out detector.
• Overload protection with flashing-lamp blow-out detector.
• It should be used in dry, dust-free places at a temperature of between 0 °C and +35 °C.
• Up to 3 dimmers with a load of 150 W each can be installed in the same mounting box.
• If installing more than 3 dimmers in the same mounting box, the controllable loads by each
dimmer must be reduced so that their total does not exceed the maximum power of 450 W.
CONNECTIONS.
• Control and speed change via built-in push buttons.
• ON/OFF control from remote push button.
• Remote control:
- ON-OFF function only
- activates the dimmer at the previous speed if switched off from the remote control
- activates the dimmer at V1 if switched off from local control
• For correct operation, the length of each connection between the dimmer and the NO buttons
may not exceed 100 m.
DIMMER OPERATION.
Motor status Button Pressing type Function
OFF
Up
Short
The motor starts at V1
Telegram
Down
Short
No function
Long
ON
(any speed)
Up
Short The motor switches from Vn
to Vn+1
(if the motor is at V4 it stays
at V4)
Long
Down
Short The motor switches from Vn
to Vn-1
(if the motor is at V1 it switches
off)
Long
n=1, 2, 3, 4.
N.B. In the event of a power failure, when the power returns, the dimmer operation will be set
to OFF, irrespective of the status it was in before the power failure.
INSTALLATION RULES.
• Installation and configuration must be carried out by qualified persons in compliance with the
current regulations regarding the installation of electrical equipment in the country where the
products are installed.
• The device must be installed in flush mounting boxes or surface mounting boxes with Neve
Up mounting frames and cover plates.
• The electronic 1-way switch must be protected by a directly associated fuse with a rated
breaking capacity of 1500 A or by an automatic 1-way switch with a rated current not
exceeding 1 A
• Installation must be carried out with the system switched off.
• The dimmer does not have a mechanical 1-way switch in the main circuit and so is not
galvanically separated. The circuit load should be considered always powered.
REGULATORY COMPLIANCE.
LV Directive. EMC directive. RoHS directive.
Standards EN IEC 60669-2-1, EN IEC 63000.
REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain traces of lead.
WEEE - User information
The crossed out bin symbol indicates that the product must be sent to separate collection facilities for recovery
and recycling, in compliance with the national laws of EU Countries that implement the WEEE Directive. The
objective is to prevent any harmful effects on the environment and on human health by ensuring that products
are disposed of correctly, avoiding illegal disposal sanctioned by law.
To dispose of the product correctly, please check local dispositions in your country.
CONFIGURATION
Remove the upper button and set the dip switches
V1 adjustment trimmer from 5 to 25%
(default 25%)
Increases
minimum speed
Decreases
minimum speed
2. LED operation
Up Position = LED always OFF
Down Position = LED enabled
1. LED lighting mode
Up Position:
- Motor OFF and LED ON
- Motor ON and LED ON
Down Position:
- Motor OFF and LED OFF
- Motor ON and LED ON
1 2
Viale Vicenza 14
36063 Marostica VI - Italy
www.vimar.com
09134 01 2502

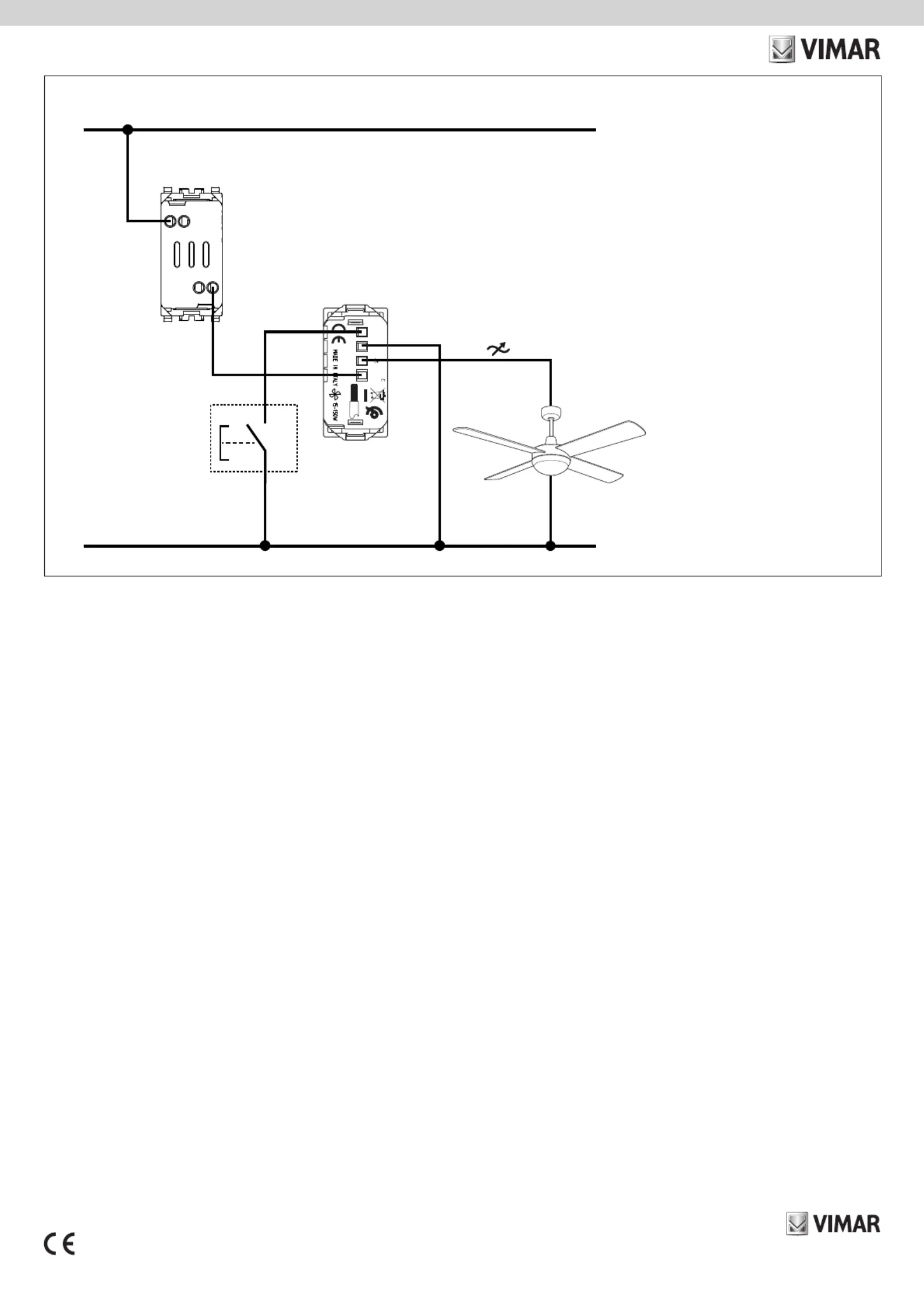

CONNECTION
A: ON/OFF and control button.
B: Ceiling fan.
The protection fuse activates in case of a load
short-circuit.
N
L
L
N
P
22 0-240V~ 50Hz
P N L
6 mm
A
B
xx416
