4K HDR 4:2:0 60Hz HDBaseT2.0 Receiver with

USB Device Inputs, Ethernet & PoH (4K: 35m/115ft)

RX-500

Quickstart Guide

RX-500 Quickstart Guide | 200331

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

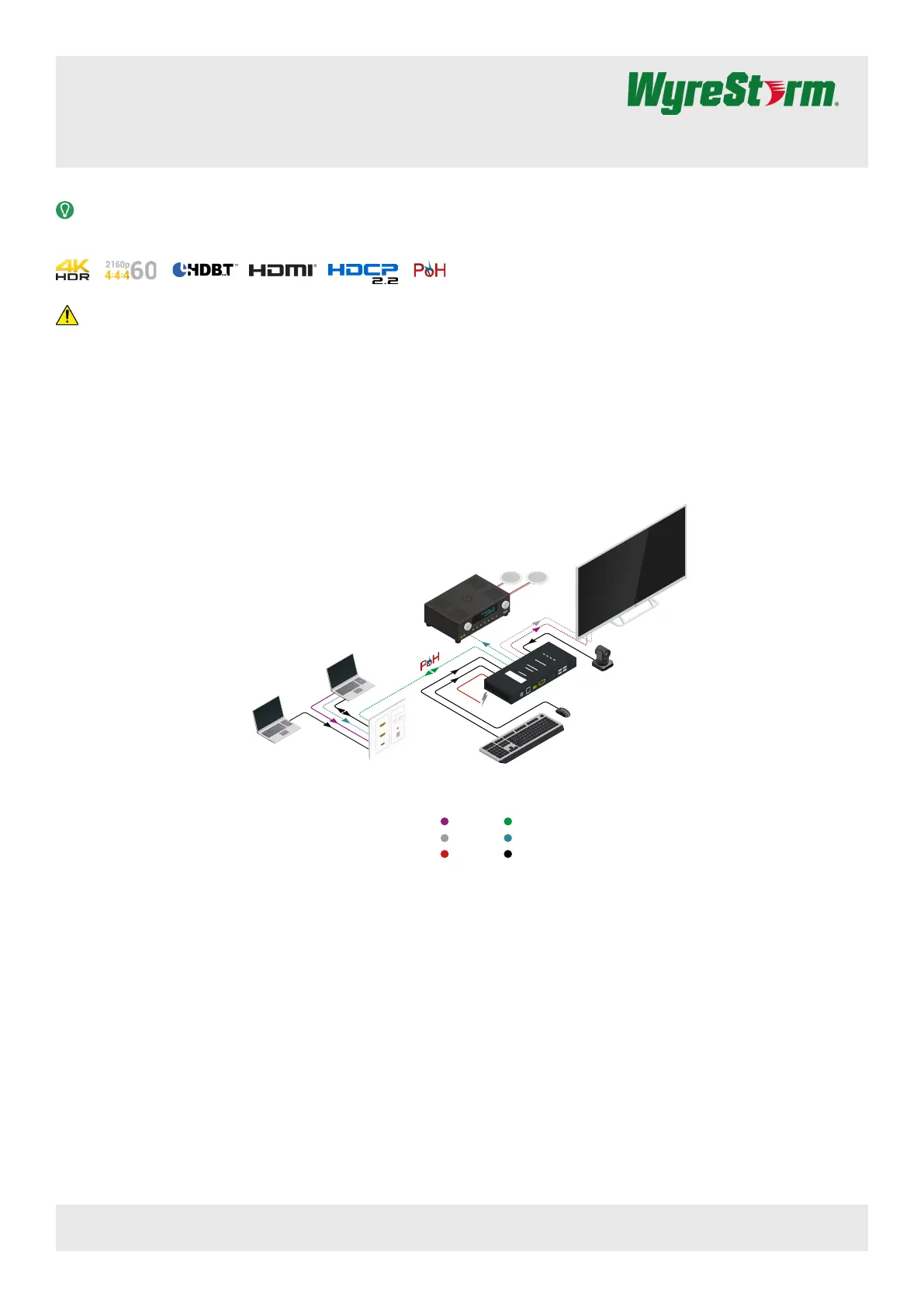

Basic Wiring Diagram

IMPORTANT! Installation Requirements

• Visit the product page to download the latest rmware, document

versions, additional documentation, and conguration tools.

• Read through the Wiring and Connections section for important wiring

guidelines before creating or choosing premade cables.

• While this product supports CEC, WyreStorm cannot guarantee

compatibility with all forms of CEC communication.

In the Box

1x RX-500 Receiver

1x 12V DC 2A Power Supply (US/UK/EU/AU)

2x Mounting Brackets with Screws

1x 3-pin Terminal Block

1x Quickstart Guide (This Document)

KEY

HDMI

Control

Power

Ethernet/HDBaseT

Analog Audio

USB

In-Wall

Transmitter

Receiver

Laptop

Macbook

USB

Camera

Keyboard and Mouse

Display Device

Ampliﬁer

Ceiling

Speakers

RX-500 Quickstart Guide | 200331

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

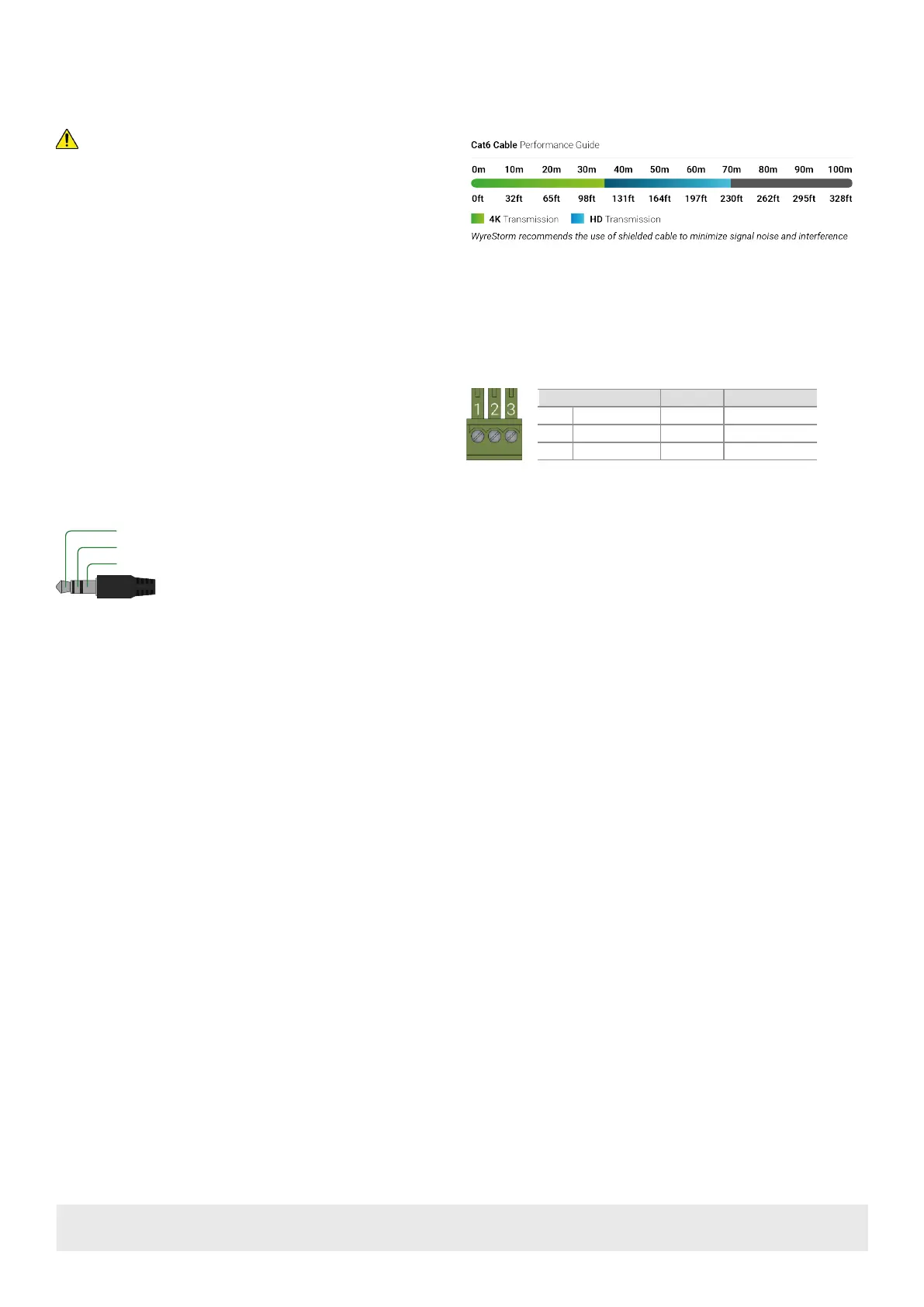

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

Audio Connections

Tip:

Ring:

Left Channel

Right Channel

Sleeve: Ground (GND)

RS-232 Wiring

The RX-500 uses a 3-pin RS-232 with no hardware flow control. Most control

systems and computers are DTE where pin 2 is RX, this can vary from device

to device. Refer to the documentation for the connected device for pin

functionally to ensure that the correct connections can be made.

3rd Party Device

Pin 1 TX (Transmit) ---> To ---> RX (Receive)

Pin 2 RX (Receive) ---> To ---> TX (Transmit)

Pin 3 G (Ground) ---> To ---> G (Ground)

WyreStorm Connector

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on

signal transmission which may limit performance. Steps should be taken

to minimize or remove these factors completely during installation for best

results.

• WyreStorm recommends the use of shielded category cable to minimize

signal noise and interference.

• WyreStorm recommends using pre-terminated HDMI cables due to the

complexity of these connector types. Using pre-terminated cables will

ensure that these connections are accurate and will not interfere with the

performance of the product.

Produktspecifikationer

Varumärke:	WyreStorm
Kategori:	audio/video-omvandlare
Modell:	RX-500
Vikt:	460 g
Bredd:	210 mm
Djup:	90.2 mm
Höjd:	- mm
Förpackningens bredd:	- mm
Upplösning:	3840 x 2160 pixlar
Videolägen som stöds:	1080p, 2160p
Maximal upplösning:	3840 x 2160 pixlar
Certifiering:	CE, FCC, RoHS, RCM, EAC
HDCP:	Ja
Ljudutgång:	2
Grafikupplösningar som stöds:	1920 x 1080 (HD 1080), 3840 x 2160
Modell:	AV-mottagare
USB-anslutning:	USB Type-A
HDBaseT-certifierad:	Ja
HDCP-version:	2.2
Driftspänning:	12 V
HDBaseT-port:	Ja
Produktens färg:	Svart
Antal USB-portar:	4
bruksanvisning:	Ja
Låddjup:	- mm
Vikt inkl. förpackning:	- g
Antal per förpackning:	1 styck
Temperatur vid drift:	0 - 45 ° C
Temperaturintervall (förvaring):	-20 - 70 ° C
Anslutningsteknologi:	Kabel
Strömkälla av typen:	DC
Strömförbrukning i vänteläge:	8 W
Ingående ström:	2 A
Maximal överföringshastighet avstånd:	35 m
HDMI-in:	1
RS-232-ingångar:	1
EDID (Extended display identification data):	Ja
Orörd överföring av CEC:	Ja
