Sida 1/4
3-Input In-wall HDBaseT™ Transmitter with USB Host &
CEC Trigger. 2-gang US/UK Back-box
SW-130-TX-US | SW-130-TX-UK
Quickstart Guide
Copyright © 2020 WyreStorm Technologies | wyrestorm.com
SW-130-TX-Ux Quickstart Guide | 201016
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.

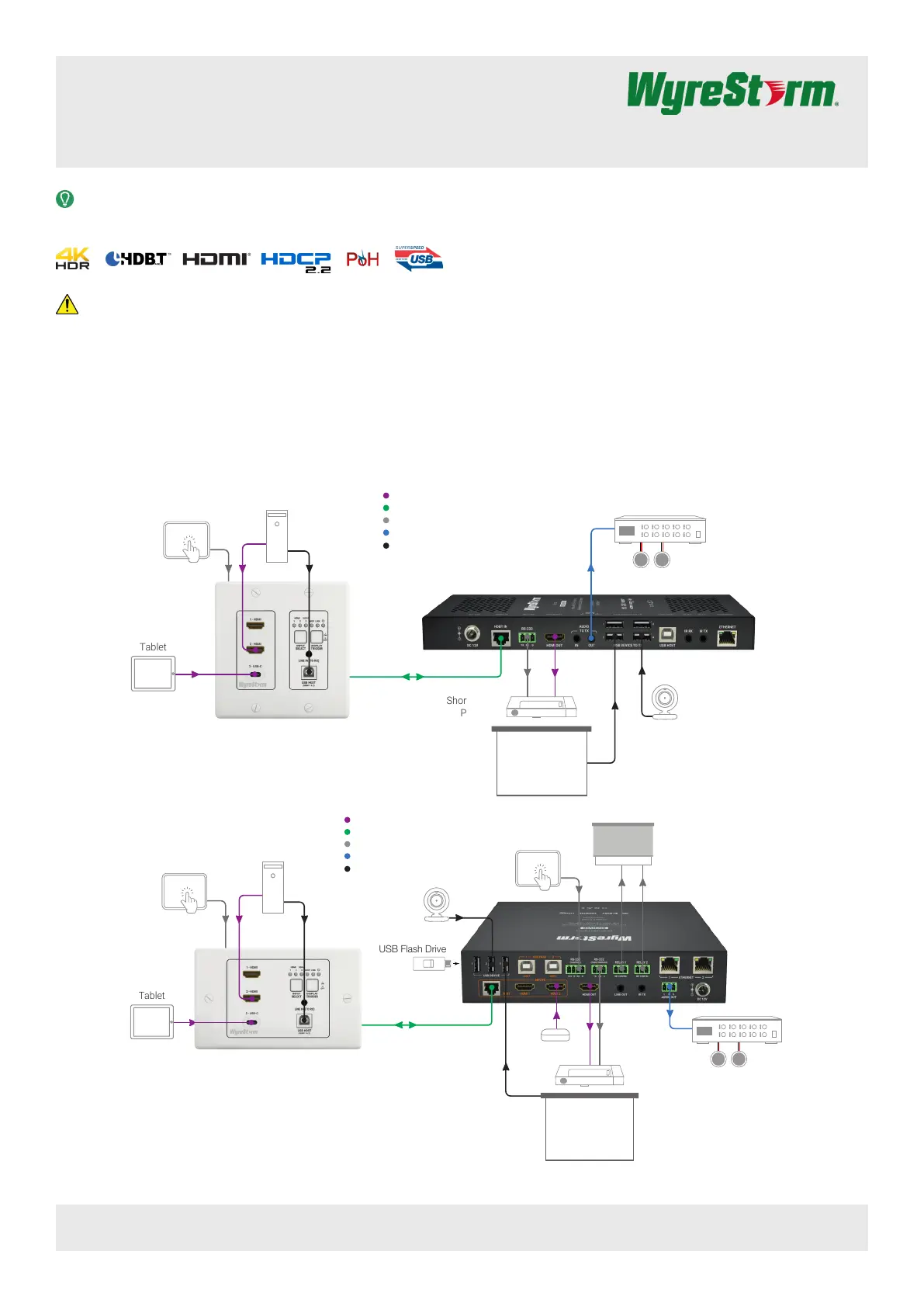

Basic Wiring Diagram
Tablet
RX-700
Interactive
Whiteboard
Short Throw
Projector
SW-130-TX-US
Personal Computer
Amplifier
USB Camera
KEY
HDMI/DisplayPort/USB-C
HDBaseT
RS-232
Analog Audio
USB 2.0
TS-280-US
Amplifier
Window Blinds
USB Flash Drive
USB Camera
Interactive
Whiteboard
Short Throw
Projector
Signage Player
SW-515-RX
TS-280-EU
TS-280-EU
Tablet
SW-130-TX-UK
Personal Computer
KEY
HDMI/DisplayPort/USB-C
HDBaseT
RS-232
Analog Audio
USB 2.0
IMPORTANT! Installation Requirements
• Visit the product page to download the latest rmware, document
version, additional documentation, and conguration tools.
• Read through the Wiring and Connections section for important wiring
guidelines before creating or choosing premade cables.
• The height of installation should not exceed 2 meters from the ground.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
In the Box
1x 4‐pin Phoenix Male Connector
1x USB host cable (Type A-B)
1x Decora face plate (SW-130-TX-US)
4x Retaining screws (SW-130-TX-US)
1x Quickstart guide (This Document)
Copyright © 2020 WyreStorm Technologies | wyrestorm.com
SW-130-TX-Ux Quickstart Guide | 201016
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
2 of 4

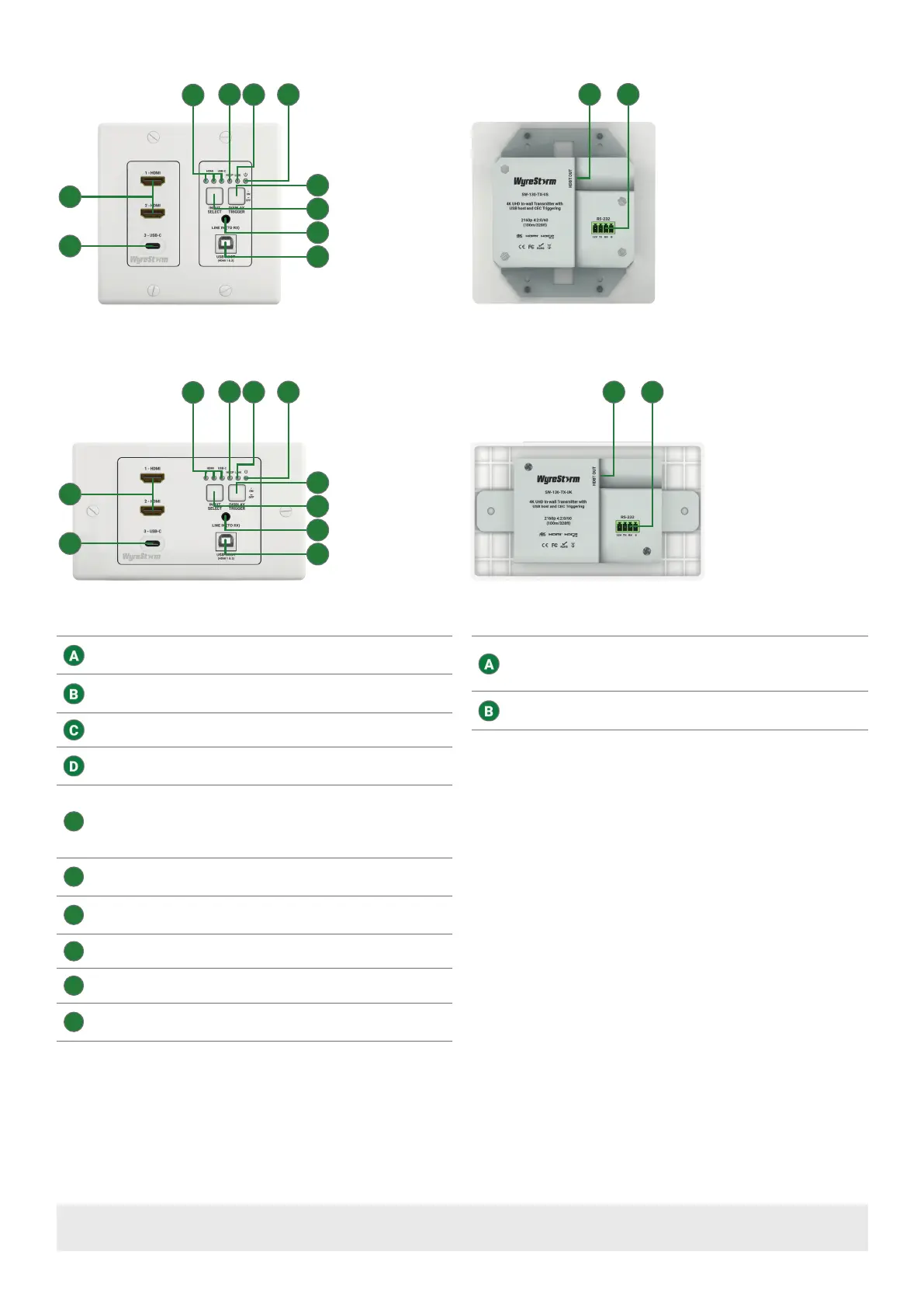

SW-130-TX-US (Front/Rear)
SW-130-TX-UK (Front/Rear)
HDMI Inputs
19-pin type A HDMI female
Supports HDMI and DVI/D with adapter
USB-C Input
USB3.1C port
Supports alt-mode and device charging
Source LED On: Indicates the selected source
HDCP LED
On: Indicates encrypted source content
Off: Indicates non-encrypted source content
E
Link LED
On: Indicates link established with receiving
device
Off: No link with receiver or receiver powered
off
F
Power LED
Solid: The unit is powered On
Off: The unit is powered Off
G
Display Trigger
Short Press: Send power on trigger
Long Press: Send power off trigger
H
Input Select Press to manually change input
I
Audio Line In 3.5mm jack: 2ch analog audio input
J
USB Host
USB Type A female
Connection of USB Host device
HDBT Out
8-pin RJ-45 female
Connect the transmitter’s HDBT OUT to
receiver’s HDBT IN.
RS-232
4-pin phoenix: Serial input for API control and
12v DC input
A
G
H
I
J
B
C
D
E F
A
G
H
I
J
B
C
D
E F
BA
BA
