ASMB-977 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

•1 x ASMB-977 startup manual

•1 x Serial ATA HDD data cables

•1 x Serial ATA HDD power cables

•2 x CPU power cables (8P)

•2 x CPU carriers

•1 x I/O port bracket

•1 x M.2 screw

If any of these items are missing or damaged, please

contact your distributor or sales representative immediately.

Note 1: AcrobatReaderisrequiredtoviewanyPDFle.

Acrobat Reader can be downloaded at:

https://www.adobe.com/downloads.html

(Acrobat is a trademark of Adobe)

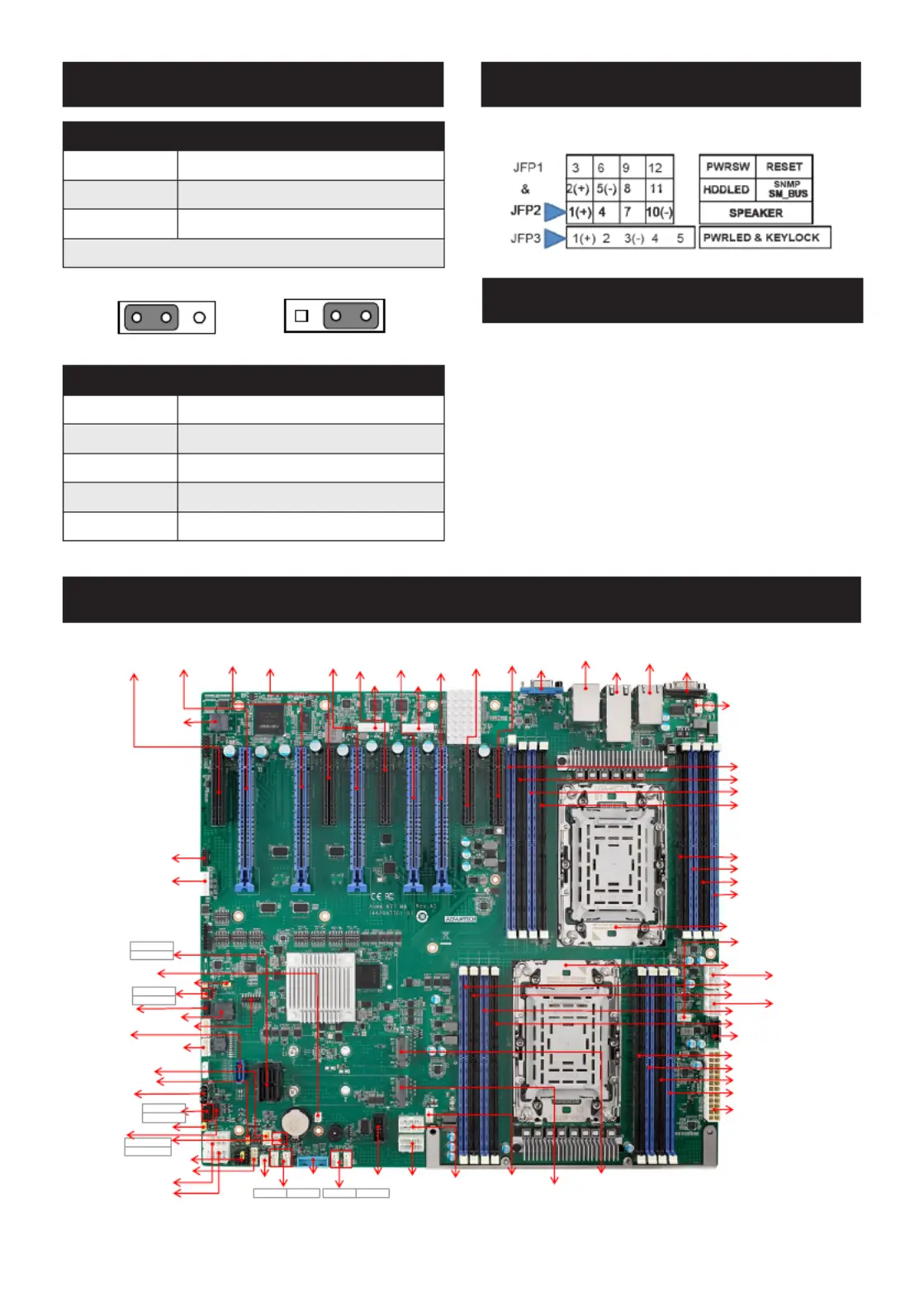

ASMB-977 Dual LGA4677 4th Gen Intel

®

Xeon

®

Scalable

Proprietary Server Board with 16x DDR5, 5 x PCIe x16,

9 x SATA3.0, 4 x USB 3.2 (Gen 1), Dual 10GbE, and IPMI

Startup Manual

Standard M/B Functions

•CPU: Dual LGA4677 4th Gen Intel

®

Xeon

®

Scalable

processors

•BIOS:AMI 256 Mbit SPI BIOS

•Chipset: Intel

®

C741 PCH

•System Memory: 16x DDR5 3200/3600/4000/4400/4800

MT/s registered ECC DIMM, Max. capacity 2TB

Note 2: Due to the inherent limitations of the PC architec-

ture, the system may not fully detect 2TB RAM

when 2TB RAM is installed.

•SATA Interface:

- 8 x SATA 3.0 (6 Gb/s) via Mini SAS HD (SFF-8643),

supports software RAID 0,1,5,10

- 1 x SATA 3.0 (6 Gb/s) for internal HDD or ODD

•Serial Ports: Two RS-232 ( one on rear I/O, and another

one via pin header)

•Keyboard/Mouse Header (KBMS1): Supports the stan-

dard PS/2 keyboard and mouse via PS/2 cable

•Watchdog Timer: 255 /sec or min level timer intervals

•USB Port: Supports up to 4 x USB 3.2 gen1 (2 rear and 2

onboard) and 1 x USB 2.0 ports (1*Type-A from onboard

10-pin header)

VGA Interface

•Chipset: ASPEED AST2600

•Resolution: Supports VGA up to resolution 1920 x 1200

@ 60 Hz refresh rate

Ethernet Interface

•Interface: 10/100/1000 Mbps & 10Gb (only for LAN3 &

LAN4)

•Controller: LAN1/2: Intel I210; LAN3/4: Intel

®

X710-AT2

Mechanical and Environment

•Dimensions (L x W): 380 x 349.5 mm (14.96” x 13.76”)

•Power Supply Voltage: +3.3 V, +5 V, ±12 V, +5 Vsb

•Power Consumption (mainboard only, excluding

IO device): Max. load: [email protected], [email protected],

[email protected], [email protected], [email protected],

[email protected], [email protected]

•Operating Temperature: 0 ~ 40° C (depending on CPU)

•Weight: 1.8 kg (weight of board)

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

https://advt.ch/asmb977

Register your products on our website and get 2

months extra warranty for free at:

http://www.register.advantech.com

This manual is for the ASMB-977 series Rev. A1.

Part No. 2042097700

Printed in China

1st Edition

January 2023
