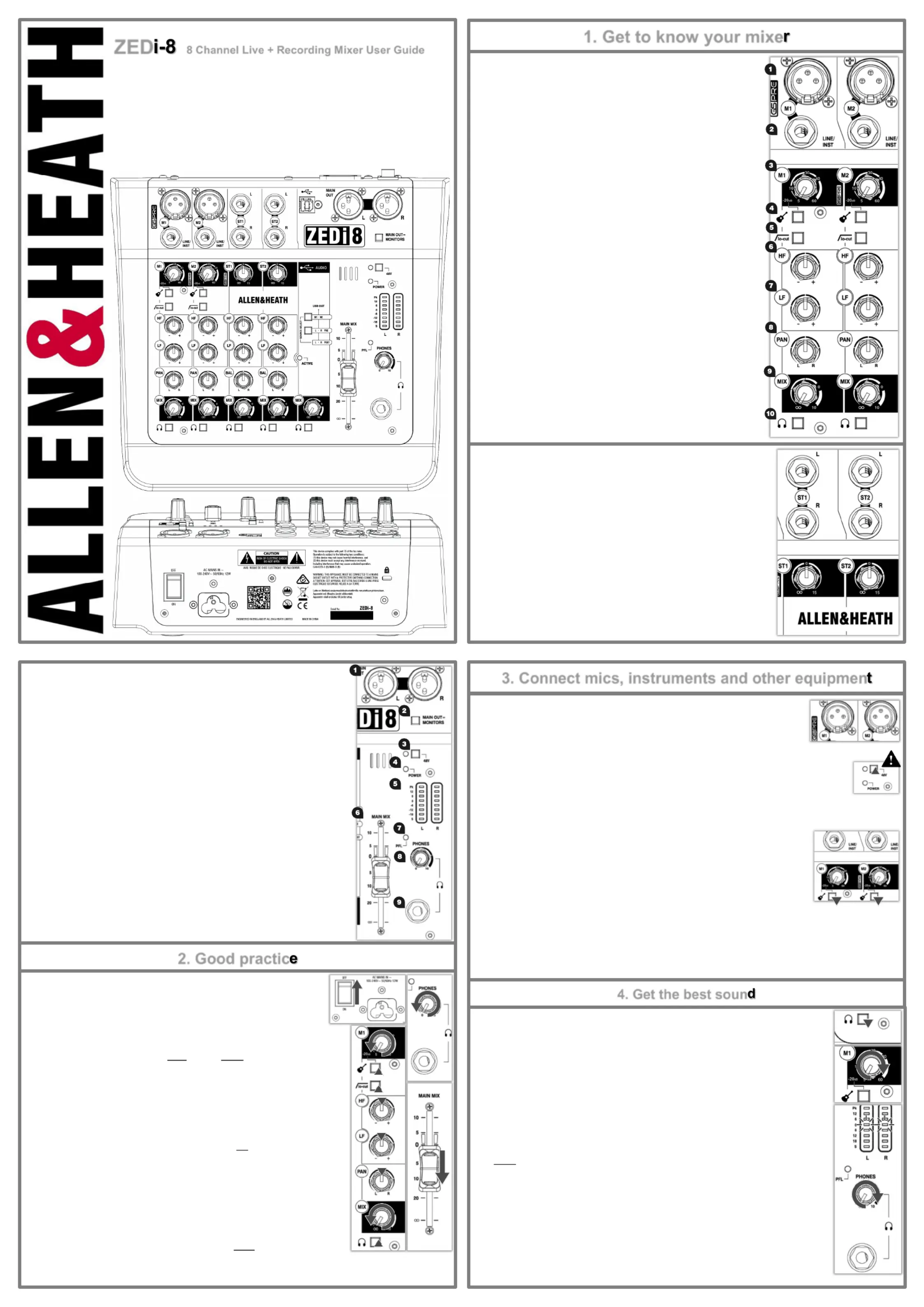

ZED 8 Channel Live + Recording Mixer User Guide

Thank you for purchasing this Allen & Heath ZEDi 8. -

We recommend that you read all of this user guide to get the best from your mixer and after

reading, please keep this safe for future reference.

Included in this package is:

 ZEDi 8 Mixer -

 IEC C5 Mains Power Cable. Please check correct mains plug is fitted for your country.

 This User Guide!

1.3 MASTER SECTION

1. MAIN OUT L & R are line level outputs for the main stereo mix using standard XLR

output connectors and are impedance balanced for rejection of unwanted interference.

2. MAIN OUT = MONITORS PFL MAIN OUT switches the signal to the as well as the

PHONES output for flexible monitoring of input signals through your speakers.

This is mainly for studio control room monitoring applications.

3. 48V switches industry standard 48V (phantom power) to both microphone inputs for

use with condenser microphones.

4. POWER LED indicates that the mixer is switched on.

5. LR Meters MAIN MIX PFL display the level of the or the mono signal if activated by

any of the switches. PFL

6. MAIN MIX is the master volume control for the main stereo mix.

7. -PFL (Pre Fade Listen) LED PFL indicates when a switch has been pressed on one of

the channels.

8. PHONES level PHONES outputcontrols the volume of signal to the .

Warning! To avoid damage to your hearing do not operate headphones or sound system

at excessively high volume. Continued exposure to high volume sound can cause frequency

selective or wide range hearing loss!

!

9. PHONES output uses a standard 1/4” (6.25mm) jack socket.

2.1 “Zeroing”

It’s good practice to “zero” your mixer and turn down relevant channels before

connecting any devices as this prevents potential damage to speakers or other

equipment.

Follow these steps to make sure you’re safe and you avoid thumps and bangs when

plugging equipment in.

Speakers should always be switched ON LAST OFF FIRST!and

1. Make sure the power switch on the rear of the mixer is set to “ ”OFF

2. Connect the AC Mains Lead provided to the AC MAINS IN socket on the rear of the

mixer.

Check that the correct mains plug is fitted for your country and plug the AC Mains Lead

into a standard household mains socket.

3. Turn channel Gain controls all the way down (left).

4. Make sure Instrument, HPF PFL 48V , and switches are not pressed in.

5. Set all channel EQ and PAN controls to the centre position marked “▼”

6. Turn all FX send, AUX send MIX and controls all the way down (left).

7. Lower the MAIN MIX fader to “∞”.

8. Turn down the PHONES level.

9. Double check speakers or amplifiers are switched off!

10. Connect speakers, instruments and other equipment.

11. Switch on instruments and other equipment, then mixer, speakers ! THEN

Speaker or amp volumes should be set according to manufacturer guidelines. !

2. Good practic

3.1 Connecting Microphones

Dynamic or condenser microphones and DI boxes should be connected to the Mic Input Socket

using a balanced XLR Microphone cable.

If you‘re using a condenser microphone, it will require Phantom Power to work.48V

Some active DI boxes may also require phantom power.

Avoid ‘hot plugging’ when connecting any equipment and make sure AUX MASTER MAIN MIXand controls

are turned down before is switched on as this as may cause loud thumps and bangs! 48V

3.2 Connecting Instruments and Line Level Equipment-

High Impedance (Hi Z) instruments such as electro acoustic guitars, basses and other Direct - - -

Input instruments should be connected to Line / Inst Inputs on channels using a jack to M1 & M2

jack instrument cable, and do not require an additional DI box or preamp.

The Instrument switch must be activated to match extremely high impedance signals (10MΩ)

from instrument pickups.

Line level instruments such as keyboards, synthesizers, drum machines or equipment such as

external effect processors can be connected to Line / Inst Inputs on channels and inputs on for M1 & M2, LINE M3 & M4

mono sources or for stereo sources. ST1 & ST2

For channels the switch must be activated.M3 & M4 LINE/PAD

Follow the application examples in Section 7. for connecting devices to relevant input and outputs.

4.1 Gain Structure

1. Once you’ve connected your instruments and equipment you will need to set input levels before

you can mix the signals together.

2. Gain structure is important to get the maximum signal level without undesirable distortion.

Setting gain properly helps to optimise signal quality and ensure that the signal to noise ratio

remains as low as possible.

3. If you‘re using a microphone make sure the mic is placed at an appropriate distance to the sound

source. (Close for quiet sources, further away for louder).

4. Press the switch on the corresponding channel. This will allow you to hear the pre fader PFL -

input signal and will show the signal level on the LR Meters.

5. Sing, talk or play your instrument at a typical level of loudness.

6. Slowly raise the Gain Control on the corresponding channel until you see a good signal level in

the LR Meters 0. Maximum peaks between “ ” and “+6” on the meters are a good indicator.

7. Connect professional monitoring headphones to the Phones and turn up the output

PHONES level to a safe listening volume.!

8. If the signal sounds undesirably distorted at a low signal level, enable any pad switch on the

microphone, or move the microphone further away from the source and repeat the process.

Once you’re happy with the input signal level, you may wish to use (Hi pass Filter) and the lo-cut -EQ

to enhance intelligibility or to remove unwanted frequencies, and improve the tonal balance of the

source sound, so keep the channel switch enabled for now!PFL

Section 4. continued overleaf...

4. Get the best soun

3. Connect mics, instruments and other equipmen

1. Get to know your mixe

1.1 MONO INPUT CHANNELS (M)

1. Mic Input Socket uses a standard 3 Pin XLR socket for connecting dynamic -

or condenser microphones.

2. Line / Inst Input Socket uses a standard 1/4” (6.25mm) Jack socket for

connecting balanced or unbalanced signals such as guitars and other

instruments.

3. Gain Control adjusts the gain of the input preamplifier to drive the

source signal level. Gain ranges from 5dB to 60dB.

4. Instrument Line / Inst input activates the circuit for electro acoustic and -

electric guitars, basses and other Direct Input instruments. When activated

the Mic Input Socket is disabled.

5. lo-cut (Hi Pass Filter) is used for reducing Low Frequency noise such as -

handling noise, popping, rumble and proximity effect in microphone signals.

6. HF EQ (High Frequency) equaliser affects treble frequencies in the

signal for adding “brightness” and “definition” or for reducing “hiss” and

“harshness”.

7. LF EQ (Low Frequency) equaliser affects bass frequencies in the signal

to cover “boom” and “sub bass” frequencies.-

8. PAN adjusts signal from a mono input channel between the left and

right busses and subsequently the main outputs.

9. MIX rotary fader controls the amount of signal to the left and right

busses.

10. -Pre Fade Listen (PFL) switches the channel input signal to the

headphones for checking before adding it to Mix. The signal is taken PFL

after the but before the control. EQ MIX

1.2 STEREO INPUT CHANNELS (ST)

ST1 ST2 Inputsand use standard 1/4” (6.25mm) Jack sockets for balanced or

unbalanced line level stereo sources such as professional keyboards, drum

machines and other pro audio equipment.

ST1 ST2 Gain Control and adjusts the input level to the channel.

HF LF EQ ST1 ST2 M2 and are the same for & as they are for M1 & and are set

at the same frequencies.

BAL adjusts the relative level between the left and right stereo signals as they

are sent to the left and right busses and subsequently the main outputs.

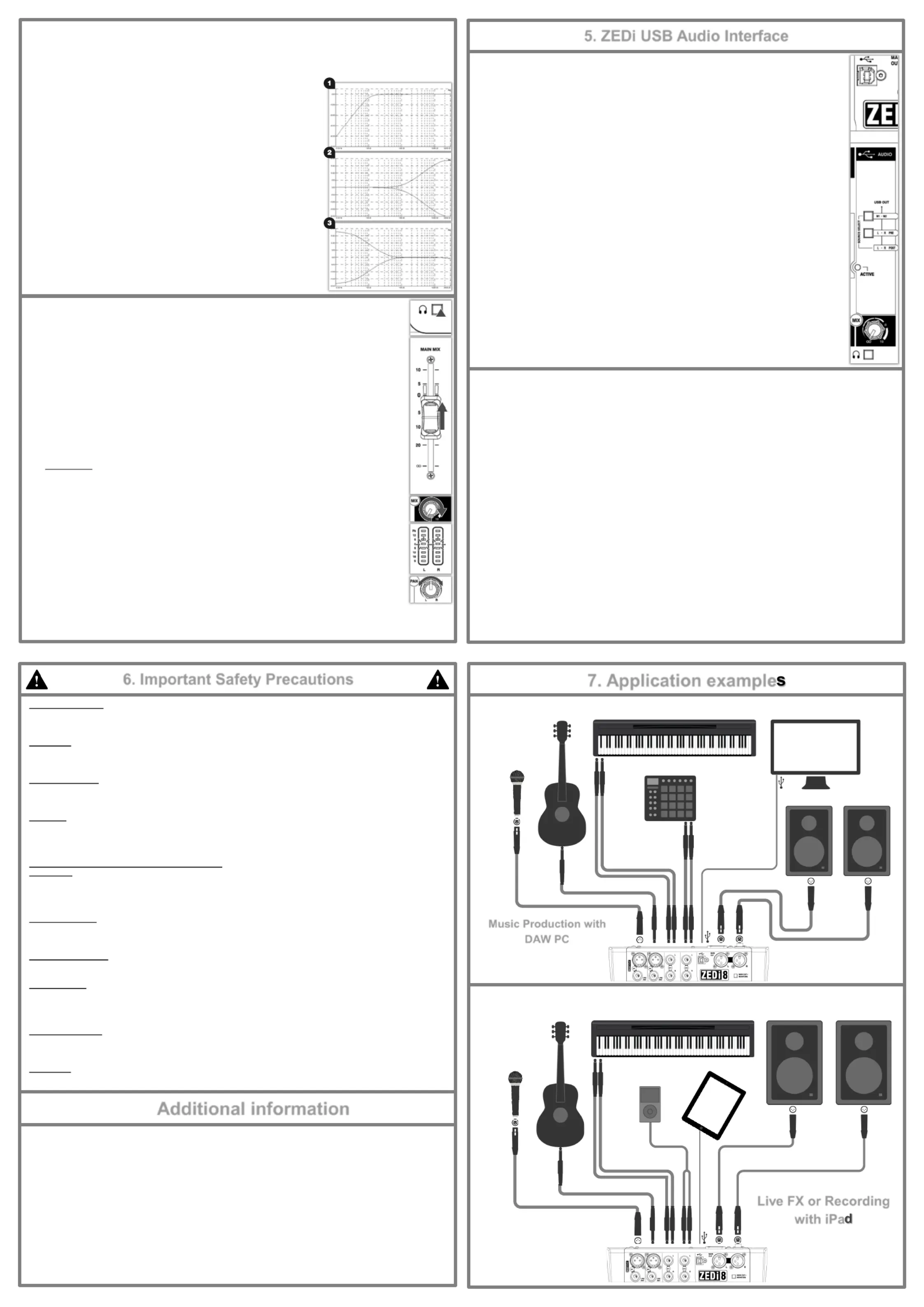

7. Application example

Music Production with

DAW PC

Water and moisture:

Do not expose the mixer to rain or moisture or use it in damp or wet conditions.

Do not place containers of liquids on it which might spill into any openings.

Ventilation:

Do not obstruct the ventilation slots or position the mixer where the air flow required for ventilation is impeded.

If the mixer is to be placed in a rack unit or flight case ensure that it is well ventilated.

Heat and vibration:

Do not place the mixer where it is subject to excessive heat or direct sunlight.

Keep the mixer away from any equipment which produces excessive heat or vibration.

Servicing:

Switch off equipment and unplug the power cord immediately if it is exposed to moisture, spilled liquid, objects fallen into

the openings, if the power cord or plug have become damaged, during lightning storms, or if smoke, odour or abnormal

noise is noticed.

Refer servicing to qualified technical personnel only.

Installation:

Install the mixer in accordance with the instructions printed in this User Guide.

Do not connect the output of power amplifiers directly to the mixer.

Only use audio connectors and plugs for their intended purpose.

Read instructions:

Retain these safety and operating instructions for future reference.

Adhere to all warnings printed here and on the mixer and follow the operating instructions printed in this User Guide.

Do not remove cover:

Never operate the mixer if the cover is not correctly fitted.

Power sources:

Only connect the console to mains power of the type described in this User Guide and marked on the rear panel.

Use a power cord with sealed mains plug appropriate for your local mains supply as provided with the mixer.

If the provided plug does not fit into mains your outlet consult your service agent for assistance.

Power cord routing:

Run the power cord so that it is out of the way and not likely to be walked on, stretched or pinched by items placed upon or

against it.

Grounding:

Never remove or tamper with the ground connection or polarity in the power cord.

6. Important Safety Precautions

For all additional information such as hardware specification, product information or technical support please go to

http://www.allen heath.com-

A limited one year manufacturer’s warranty applies to this product, the conditions of the warranty can be found at

- http://www.allen heath.com/legal

For service or support in your local area please go to

http://www.allen heath.com/where buy - -to-and search for the country you are in.

Please register this product at http://www.allen- heath.com/register to receive useful information from time to time.

ZEDi 8 User Guide AP10073 Issue 2-

Allen & Heath Limited, Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK

Additional information

5.1 USB AUDIO INTERFACE

A built in 2 in, 2 out, 24 bit/96kHz USB Audio Interface allows for studio quality recording direct from your - - -

mixer to your PC without the need of any additional equipment. This is class compliant (plug play) for - -and-

Mac and iOS devices. (iOS devices require a camera connection kit).

Simply connect a USB cable between the USB port on the mixer and the USB port on your computer or

device. For Windows systems, driver software must be installed in order for it to work.

The latest driver software and documentation can be found at http://www.allen-heath.com/downloads

1. - - -USB connector is a Type B USB connector for multi channel bi directional audio streaming between

the mixer and a computer and follows the high speed USB 2.0 standard.

2. USB OUT SOURCE SELECT buttons allow you to chose where the signal to the outputs of the

USB interface output is taken from.

3. M1- M2 selects the source from channels directly and has priority over the USB OUT M1 & M2

L R PRE- source select switch.

4. -L R PRE USB OUT MAIN MIX - selects the source to be before (pre) the fader for recording the L

R stereo mix without the signal level being affected by any MAIN MIX fader adjustments.

5. If neither of these buttons are selected the is after (post) USB OUT MAIN MIX fader and so the signal

level will be affected by any fader adjustment.MAIN MIX

6. ACTIVE LED indicates that the USB Audio Interface driver is engaged by a software

application.

7. MIX USB IN MAIN MIXrotary fader controls the volume of the signal into the .

8. PFL USB IN PHONES output MAIN OUT MAIN OUT = switches the signal to the and if

MONITORS is selected.

5. ZEDi USB Audio Interface

5.2 Troubleshooting USB Audio Interface problems

Playback and recording problems when using the ZEDi USB Audio Interface can be avoided by following the steps below:

Minimum System Requirements: Ensure that your PC exceeds the Minimum System Requirements of the Digital

Audio Workstation software that you are using to guarantee reliable performance and recording without pops, clicks,

dropouts, or distortion in audio.

Latest Driver Software: For Windows systems it’s best to have the latest driver software installed.

Go to http://www.allen heath.com/downloads -for the latest driver software and documentation.

Audio Buffer Size: The audio buffer setting helps avoid pops, clicks, and dropouts by processing audio in blocks,

but can also cause latency, a delay in the time it takes for audio to be processed and recorded or played back. Ideally the

buffer size should be set as low as possible to minimize latency, whilst avoiding pops, clicks, and dropouts.

USB Hubs: Sharing USB ports via a hub may cause a reduction in the USB bandwidth available to the Audio

Interface. It’s best to connect audio interfaces directly to the USB port on your PC.

Ground Loops and Hum: Mains Ground Loops which cause low frequency noise or hum between audio devices

can be avoided by powering devices from the same mains outlet via a suitable multi socket extension. If you’re still -

experiencing this try disconnecting your laptop power supply as they are commonly the cause. Where possible, using

balanced audio cables will also help.

Feedback Loops: It’s possible to create an internal feedback loop between the mixer and DAW software when

recording the L R stereo mix. Beware of returning monitoring signals from your DAW to the mix as the feedback can build -

up very quickly and potentially damage speakers or other equipment. Either mute the record enabled channels in the DAW -

or turn down the control on the MIX USB IN PFL channel and use to monitor the signal from the DAW.

!

Live FX or Recording

with iPa

4.2 Shaping Sound

EQ filters audio passing through it and allows you to ‘cut’ (turn down) or ‘boost’ (turn up) selected frequencies.

‘Boosting’ a frequency too much may cause the signal to clip or distort. ‘Cutting’ a frequency will cause a reduction in

signal level.

Overuse of EQ may cause the sound to be unnatural. Understanding the frequency

responses of different instruments and how they might overlap will help you make

good decisions on how to EQ musically.

1. lo-cut (Hi pass Filter) removes unwanted low frequency noise such as rumble, -

handling noise, thumps and proximity effect and helps maintain clarity in the

signal. affects both and inputs. The corner frequency lo-cut Mic Line/Inst

is set at 100Hz.

2. HF EQ (High Frequency) affects treble frequencies in the signal. The

corner frequency is at 12kHz for adding “brightness” and “definition” to guitars or

for reducing “hiss” in vocals and “harshness” in cymbals.

3. LF EQ (Low Frequency) equaliser affects bass frequencies in the signal.

The corner frequency is 80Hz for adding “roundness” and “sub bass” to bass -

guitar or kick drum, or to remove “boom” from toms.

When you’re happy with the input signal level and tone you can disable the

channel’s switch and think about how to mix all these sounds together!PFL

4.3 Balancing the Mix

Once you have set input gain levels and applied EQ to source signals, you can start to mix all of your

channels to the outputs. Consider the importance of each instrument and how they should be heard in the

mix.

1. Make sure all PFL switches on your mixer are disabled to show MAIN MIX LR Metersmetering in .

2. Slowly raise the MAIN MIX fader 0to around “ ”.

3. Turn up channel controls to send their signal to the main mix.MIX

4. You will see the signal level displayed in the LR Meters.

5. As you mix the signals together you will see the combined level getting higher in the meters.

6. Avoid clipping and leave headroom for any louder moments in the program material.

Average 0peaks around “ ” on the meters are a good indicator.

Maintain a natural sounding balance and relationship between voices and instruments.

i.e. which instruments should be heard more clearly over others.

If you find that controls are turned up very high and signal is still low, or control is very low but MIX MIX

signal is too high, readjust channel Gain and controls to improve gain structure and tone (see EQ

section 6.1)

8. Use PAN and balance to separate sounds and give instruments space in the mix or a realistic

impression of where they might sit in the stereo image.

Ideally, high energy LF sounds such as kick drum should be kept centre to distribute them evenly and

share the load between speakers.

Dynamic or

Condenser

Microphone

Electro Acoustic

Guitar

Electronic Piano

Drum Machine

Active Studio Monitors

Microphone

Electro Acoustic

Guitar

Electronic Piano

Powered PA Speakers

Portable Media

Player

iPad

Produktspecifikationer

Varumärke:	Allen-Heath
Kategori:	blandningskonsoler
Modell:	ZEDi-8
Vikt:	1360 g
Bredd:	249 mm
Djup:	236.4 mm
Höjd:	88.9 mm
Rackmontering:	Nej
Antal kanaler:	8 kanaler
XLR ut:	2
Produktens färg:	Black, Grey
Hörlursutgång:	Ja
Hörlursanslutning:	6,3 mm
Equalizer:	Ja
XLR-ingång:	Ja
Antal USB 2.0 anslutningar:	1
Videofunktionalitet:	Nej
Equalizer tonkontroller:	2
Digital ljudbehandling:	- bit
DJ-mixer:	Nej
