Sida 1/4

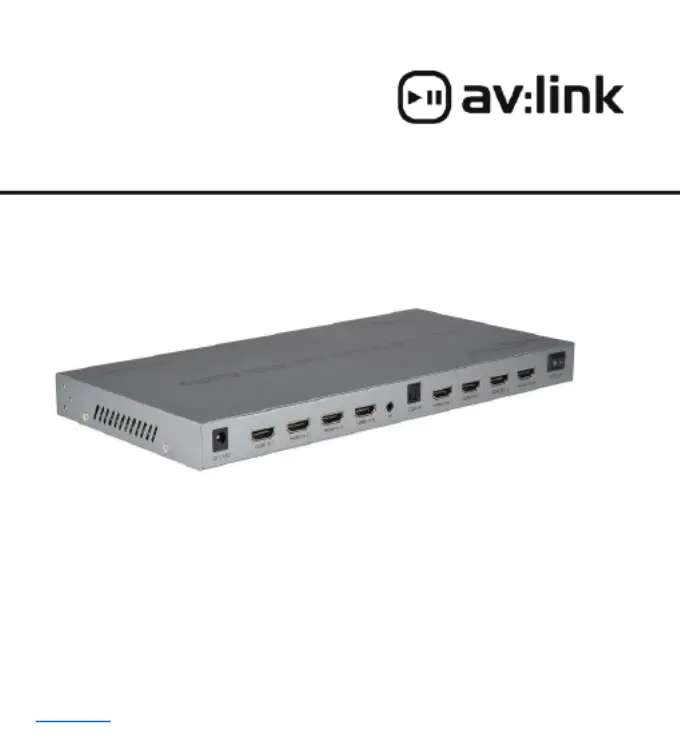

4K HDMI 2.0 Matrix 4x4
Item ref: .850UK 128
U r Manual se
www.avsl.com
Application diagram:
128.850UK User Manual
A 4K HDMI matrix to switch between 4 source devices and 4 display outputs. Use with
HDMI cables of a combined 30m per input/output for 4K@30Hz and FHD resolutions,
or a combined 10m per input/output for 4K@ 60Hz. SPDIF and 3.5mm stereo outputs
allow the audio signal from HDMI output #1 to be simultaneously channelled through
a separate sound system and/or headphones. Robust metal chassis incorporates an
EDID switch panel for specific video and sound requirements and an RS232 port for
serial data communication with a connected PC or laptop. Compatible with the latest
4K digital TV boxes making it ideal for hospitality and entertainment venues and
supplied with IR remote to switch between sources for all outputs.
HDMI version
Video resolution
Display colours
HDCP version
Audio format
Input connections
Output connections
Max. baud rate
Transmission distance
Max. working current
Operating temp range
Power adaptor
Dimensions
Weight
2.0b
Up to 3840 x 2160 @ 60Hz
8/10/12bit deep colour
2.2
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
4x HDMI
4x HDMI, Optical (Toslink), 3.5mm Stereo
18Gbps
30m max 4K @ 30Hz and FHD or 10m max 4K @ 60Hz
800mA
-15°C to +55°C
Input: AC(50Hz, 60H) 100-240V, Output: DC12V/1A
276x143x26mm
720g
Technical specifications:
www.avsl.com
128.850UK User Manual
* Connect the outputs of up to 4 source devices to the inputs of the matrix ( ). Use 7
HDMI cables of up to 15m per device for 4K@30Hz or FHD signals or 5m per device
NOTEfor 4K@60Hz signals ( : to maintain 4K resolution, always use 4K certified cables).
* Connect the outputs of the matrix ( ) to the inputs of up to 4 display devices. Use 10
HDMI cables of up to 15m per output for 4K@30Hz or FHD signals or 5m per output
for 4K@60Hz signals.
* Connect the 12V power adaptor (supplied) to the matrix ( ); plug into a mains outlet 6
and power on.
* Use HDMI output selection buttons ( ) on the front of the unit or the IR remote 1
control (supplied) to switch between source devices for both output displays. The
current selected output will be displayed on the relevant LED indicators ( ).2
* To channel the audio from HDMI output 1 to separate sound systems, amplifiers or
headphones use the digital SPDIF ( ) or analogue 3.5mm jacks ( ) on the back of 9 8
the unit (additional cables required, not supplied).
* To select the required resolution and audio settings please use the EDID dip
switches ( ). The relevant settings are listed in the EDID management settings table 5
below.
Connection instructions:
www.avsl.com
1: HDMI Out1-4 --- Output selection;
2: In1-4 --- Input LED indicator for each output selection;
3: IR --- IR port;
4: RS232 --- RS232 port;
5: DIP --- EDID;
6: DC/12V --- DC/12V power port;
8 9 1110
7: HDMI In1-4 --- HDMI Input 1-4 port;
8: R/L --- 3.5MM headphone interface;
9: Optical --- Optical port;
10: HDMI Out1-4 --- HDMI Output 1-4 port;
11: OFF/ON --- Power switch;
