Sida 1/16
AXAC-CH3
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 5/14/25 INSTAXAC-CH3
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket accessory
before installing this device.
TOOLS REQUIRED

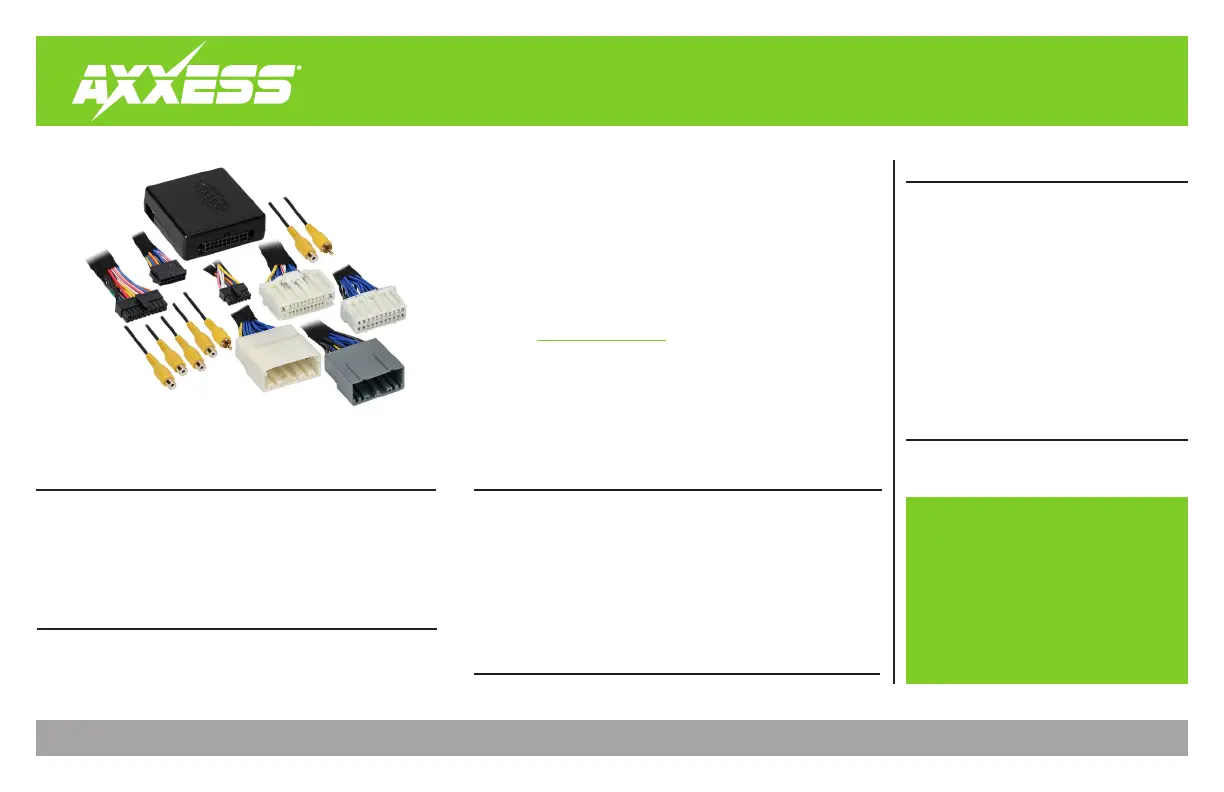

INTERFACE COMPONENTS
REQUIRED ITEMS
TABLE OF CONTENTS
Introduction ...........................................................2
Interface Features ..................................................2
Configuration ..................................................... 2-4
Connections ............................................................5
Installation .............................................................6
Programming .........................................................7
• Crimping tool and connectors, or solder gun, solder, and heat shrink
• Tape • Wire cutter • Zip-ties
• AXAC-CH3 interface
• AXAC-CH3 interface harness
• AXAC-CH3 vehicle harness (qty. 2)
• 22-pin T-harness
• 22-pin T-harness (cam harness)
Update Cable: AXUSB-MCBL (sold separately)
Axxess Updater Program
*
With 8.4-inch U-Connect RB5 or RE2 radio
Camera Data Interface w/Pre-Wired Harness
Fits Select Chrysler/Dodge Models 2011-2018*
APPLICATIONS
Chrysler
300 ................................2011-2014
Dodge
Charger .........................2011-2014
Journey ......................... 2011-2018
Note: Only compatible with NTSC cameras.
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
INTERFACE FEATURES
(see next page)
2
CONFIGURATION
• Download and install the Axxess Updater available at: AxxessInterfaces.com
• Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer.
The cable will connect into the micro-B USB port in the interface.

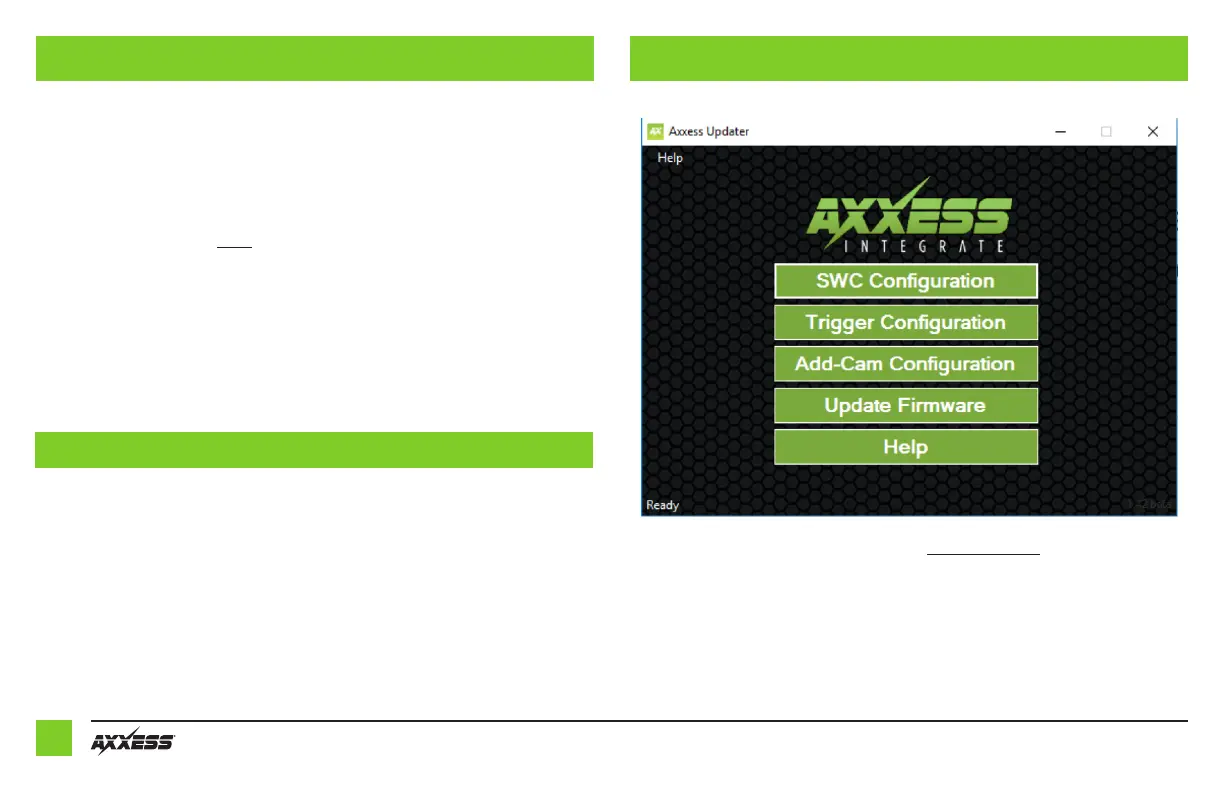

• Open the Axxess Updater and wait until the word Ready is listed in the bottom left of the screen.
• Select Add-Cam Configuration.
Continued on the next page
INTRODUCTION
The is a camera switching interface that provides up to (3) additional camera inputs to the
factory radio, while still retaining the factory camera. With this interface a front camera, and/
or side cameras, can be added to the factory radio. The cameras function automatically, no
human interaction required, unless desired to do so. The interface can also be used if the vehicle
doesn’t come equipped with a backup camera, adding up to (4) cameras in this scenario. Axxess
recommends cameras from the iBEAM product line for best results.
• Add multiple CAN-activated cameras with 4 camera inputs
• Includes AXAC camera interface and vehicle-specific harness
•
Programmable 12-volt 5-amp switched output (configured through the Axxess Updater program)
• Reverse signal trigger generated via CAN bus communication of the vehicle
• Turn signal trigger generated via CAN bus communication of the vehicle
• 4 programmable camera control wires (configured through the Axxess Updater program)
• Can also be manually controlled and used along with an aftermarket radio
• VSS (Vehicle Speed Sense) input and output
• Micro “B” USB updatable
INTERFACE FEATURES
