Sida 1/24
Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/30/24 INSTAXPIO-ES1
AXPIO-ES1
INSTALLATION INSTRUCTIONS
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
KIT FEATURES
• Designed for Pioneer DMH-WC5700NEX receivers
• Allows for the retention and adjustment of the factory personalization
menu through the Pioneer radio
• All HVAC functions will be retained
(
KIT FEATURES
cont. on next page)

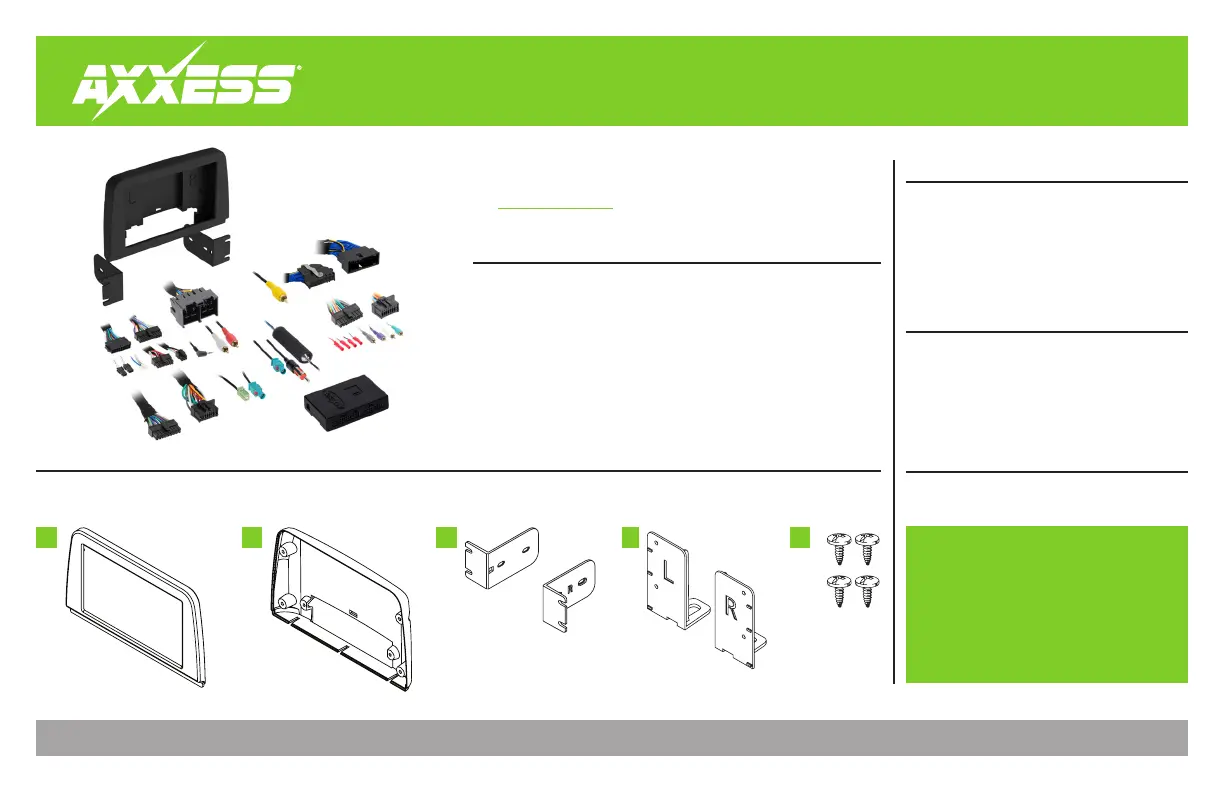

KIT COMPONENTS
• A) Front trim panel • B) Back panel • C) Pioneer chassis brackets • D) Pioneer display brackets • E) #8 x 3/8" Phillips screws (4)
Not Shown: Radio Interface, LD-FD3-PIO, LD-FD54CAM, AD-EU5, 40-GPS-PIO, PR04AVIC-PIO / PRO4- PIORCA
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 7mm Socket wrench
TABLE OF CONTENTS
Dash Disassembly ..............................................3-6
Kit Assembly ...................................................... 7-8
Axxess Wiring Installation ....................................9
Radio Preparation............................................10-11
Final Assembly ......................................................12
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included with Kit
Antenna Adapter and
GPS Antenna Adapter: Included with Kit
RGB Extension Cable: Pioneer part # CD-RGB150A
(not sold by Metra)
A CB D E
Ford Escape 2020-2022
Visit AxxessInterfaces.com for more detailed information about the product
and up-to-date vehicle specific applications.
386.257.1187
|
MetraOnline.com
2
• Single-Zone vehicles will only get status feedback of the HVAC functions, while Dual-Zone
vehicles can also be controlled through the radio screen.
• Allows for the retention and adjustment of the factory personalization menu through the
Pioneer® radio.
• Complete plug-n-play installation
• Includes dash kit with Axxess interface and vehicle-specific T-harness
• Includes radio antenna adaptor for GPS
• Provides a built-in STOP/START engine override (if equipped)
• Provides accessory power (12V 10-amp)
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Retains audio controls on the steering wheel
• Works in both single and dual-zone vehicles
• Dash kit is painted scratch-resistant matte black to match the factory finish
• Retains safety chimes through an included off-board speaker
• Designed for non-amplified vehicles
• Micro “B” USB updatable
KIT FEATURES
(cont. from cover)
KIT FEATURES
(CONT.)
