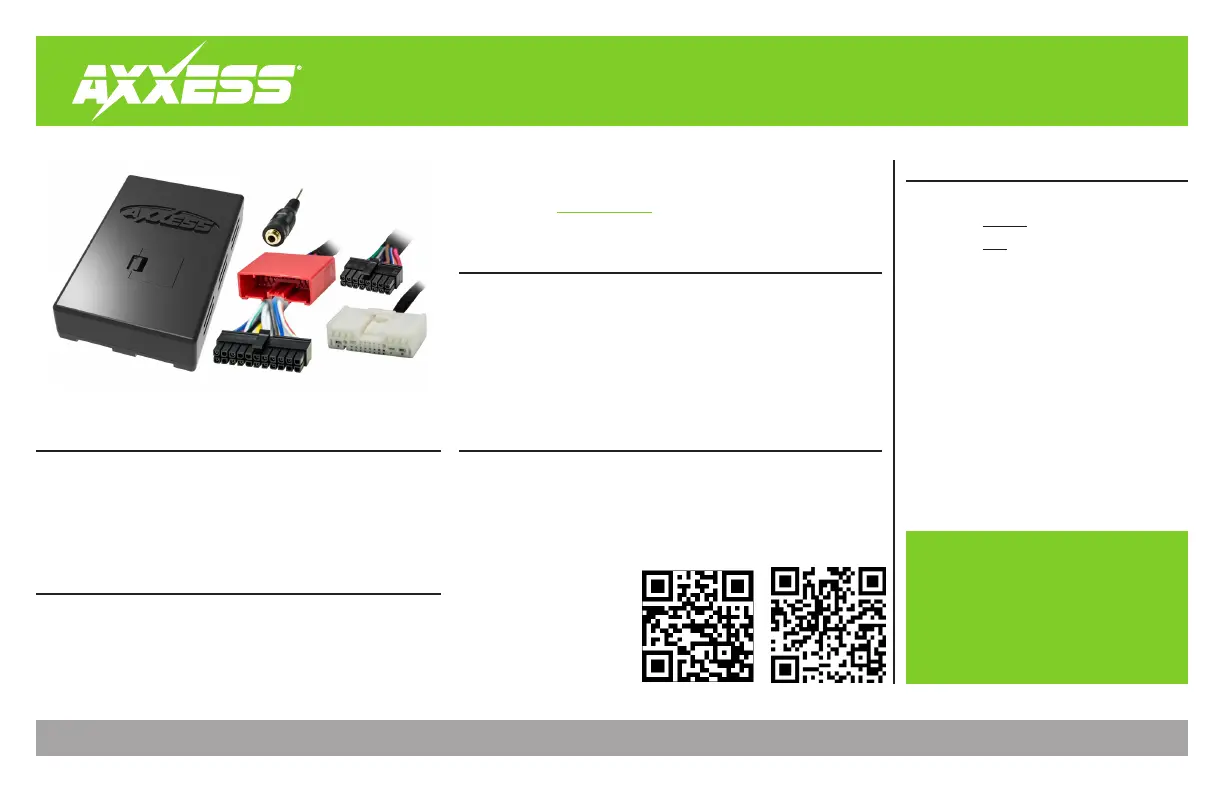

AXDIS-MZ1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 11/22/24 INSTAXDIS-MZ1
INTERFACE FEATURES
INTERFACE COMPONENTS TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell caps, etc.)
TABLE OF CONTENTS
Connections ........................................................2-4
For models
without
an amplifier ....................... 2
For models
with
an amplifier.............................3
3.5mm jack steering wheel control retention .. 4
Installing the AXDIS-MZ1 .......................................4
Programming the AXDIS-MZ1 ............................... 5
Steering wheel control (SWC) settings............5-8
LED feedback ....................................................... 5
Changing radio type ........................................... 6
Remapping the (SWC) buttons ..........................6-7
Dual assignment instructions ....................................7-8
Troubleshooting.....................................................8
Fits Mazda Data Interface with SWC 2007-2015
APPLICATIONS
• Designed for both amplified and non-amplified models
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains balance and fade (excludes amplified models)
• Retains the ability to set the clock with a service harness
• Micro-B USB updatable
MAZDA
CX-7 .............................................................................................2007-2012
CX-9 .............................................................................................2007-2010
CX-9 ..............................................................................................2013-2015
• AXDIS-MZ1 interface
• AXDIS-MZ1 harness
• 16-pin harness with stripped leads
• Female 3.5mm connector with stripped leads
MetraOnline.com may be used
to assist with dash assembly
instructions. Simply enter your
Year, Make, Model vehicle into
the vehicle fit guide and look
for the Dash Kit Installation
Instructions.
Product Info
www.MetraOnline.com
ATTENTION: With the key out of the ignition,
disconnect
the negative battery terminal before installing
this product. Ensure that all installation connections,
especially the air bag indicator lights, are plugged in
before reconnecting the
battery or cycling the ignition to
test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications.
2
CONNECTIONS TO BE MADE
Attention! This interface will work with models that are either factory amplified, or non-
amplified. Please follow the instructions carefully for your model vehicle. Failure to do so will
result in either no sound, or low sound. If you are unsure if your vehicle is factory amplified or
not, please contact your local dealership.
For models
without
an amplifier:
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the Blue/Pink wire to the VSS/speed sense wire.
• Connect the Green/Purple wire to the reverse wire.
• Connect the Light Green wire to the parking brake wire
• Tape off and disregard the following (8) wires, they will not be used in this application:
Blue/White, Brown, Green, Green/Black, Orange/White, Purple, Purple/Black, Red.
From the AXDIS-MZ1 harness to the aftermarket radio:
• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Connect the Red wire to the accessory wire.
• Connect the Blue wire to the power antenna wire.
• If the aftermarket radio has an illumination wire, connect the Orange wire to it.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative speaker output.
Note:
The 2’ long harness with a 24-pin connector is a service harness for setting the clock
with the factory radio. Please run this harness to a location where it can be easily accessed, yet
hidden.
Continue to 3.5mm jack steering wheel control retention
