AXDSPX-HN3
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 5/12/25 INSTAXDSPX-HN3
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Mobile App .........................................................4-5
Specifications /Speaker Assignment QR code ....6
DSP Data Interface With Amplifier
Bypass Harness
Fits Select Honda Models
2016-2020

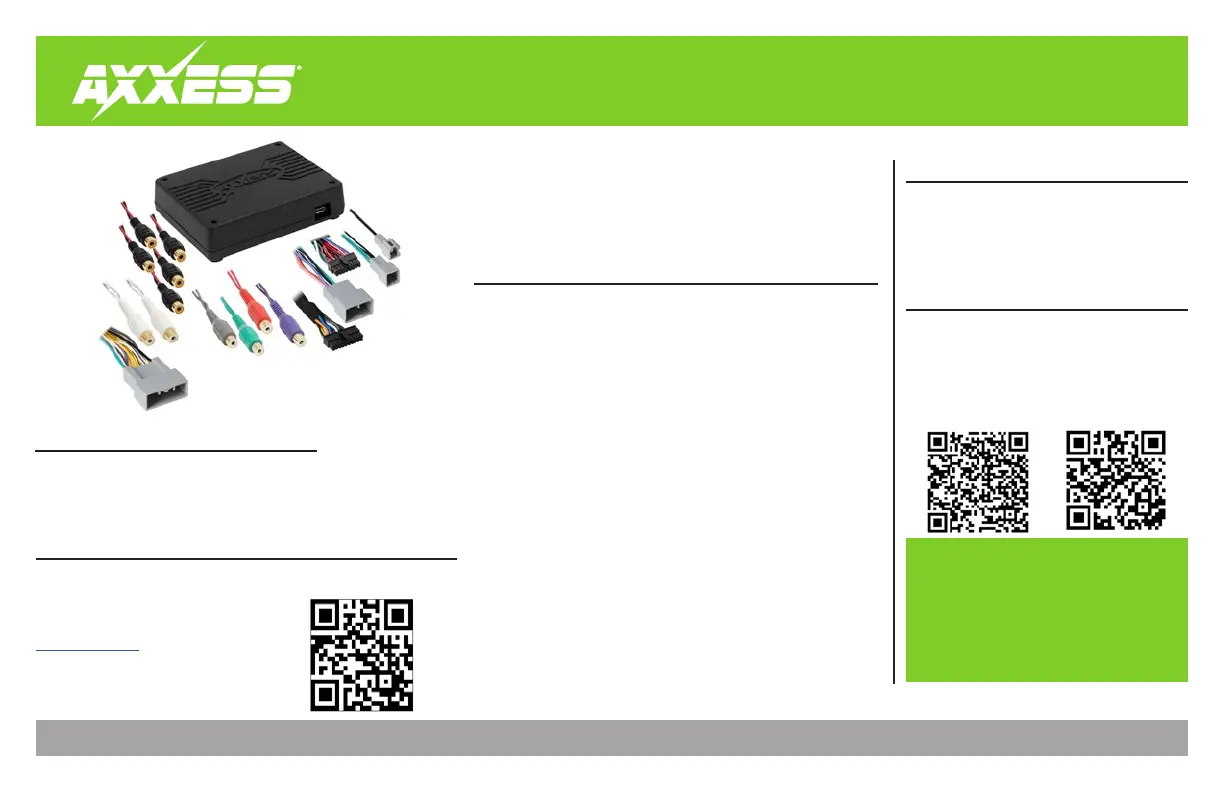

• AXDSPX-HN3 interface
• LD-DSPX-HONSP interface harness
• Amplifier bypass harness (integrated)
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
• Retains ability to work with S/PDIF
®
digitally controlled
amplified systems
• Selectable 31-band Graphic EQ or 5-band parametric EQ on each
channel with high pass, low pass, and bandpass filters
• 6 inputs and 10 individually assignable outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Selectable Graphic or Parametric EQ
• Independent equalization on each of the 10 outputs
• Each channel can be delayed independently up to 10 ms
• Clipping detection and limiting circuits
• Bass knob included
• Factory amplifier does not need to be retained
• Settings adjusted wirelessly in the free AX-DSP-XL app available
for smartphones and tablets
• To be used with factory radios
• Read, write, and store configurations for future recall
• Password protect feature available in the app
• Micro “B” USB updatable
APPLICATIONS
Visit AxxessInterfaces.com for current application list
For Dash Disassembly Instructions, refer to
metraonline.com. Enter the year, make, and
model of the vehicle in the Vehicle Fit Guide
for Radio Install kits.
Download AX-DSP-XL App
iOS
®
12.1 or higherAndroid™ 9 or higher
2
SUB
Interface
Blue/White - Amp Turn-On Wire
Factory Amp
Any remaining wires
tape off and disregard
An SPDT relay, Metra part number
E-123, is required if the amp turn-on
current of all amps exceeds 1-amp.
RCA Jacks
(sold separately)
Assignable Outputs Labeled CH 6-10
Amp Bypass Harness
Any remaining wires
tape off and disregard
TBA
CH 6
CH 10
CH 7
CH 8
CH 9
Please see Speaker Assignment
QR Code located on page 6 of
instructions
Please see Speaker Assignment
QR Code located on page 6 of
instructions
Please see Speaker Assignment
QR Code located on page 6 of
instructions
LD-DSPX-HONSP
LD-AX-DSP-OUT2

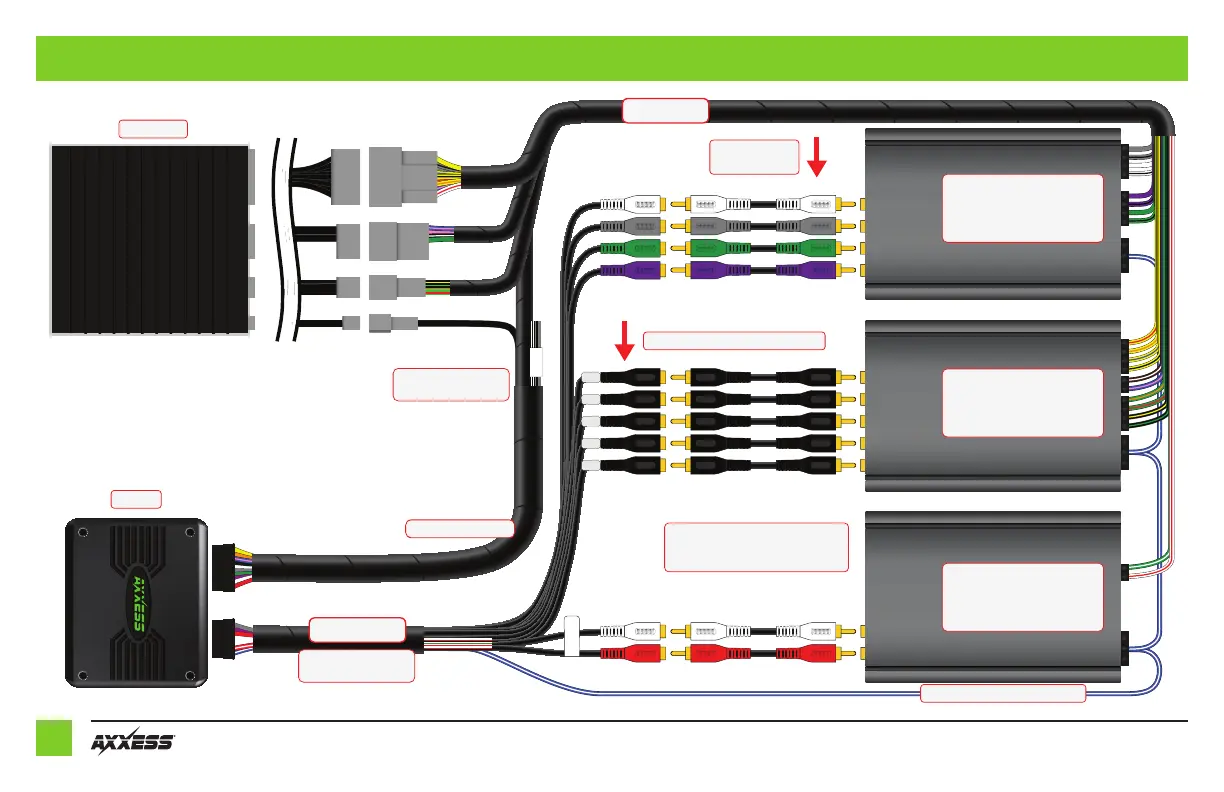

CONNECTIONS
