U9 Mini-mic
(USB Mic/Headset)
Owner’s Manual
Introduction
The U9 is a USB audio device with
microphone and external headset support
that is designed specically for
ultra-portable computers (ePC).
It is designed to be used with Skype for
excellent call quality and convenience.
Product Specications
The U9 features the USB2.0 interface
(USB1.1 compatible) and plug-and-play
under Win 98/Win ME/Win 2000/Win XP/
Win Vista/Win 7 and MAC OSX operating
systems.
• This product connects to the USB
port and is fully functional after being
recognized by the computer.
• The microphone can be turned 90
degrees to left or right, when it is
plugged into the USB port.
• High sensitivity microphone for
crystal-clear voice recording at a
distance of 9 feet; e.g. video
conferencing.
• Built-in 3.5Ø stereo headset jack for
plugging in your favorite headphones.
User Instructions:
If the microphone or headset is not
functional even if the red indicator is
lit, please refer to the following trouble-
shooting steps:

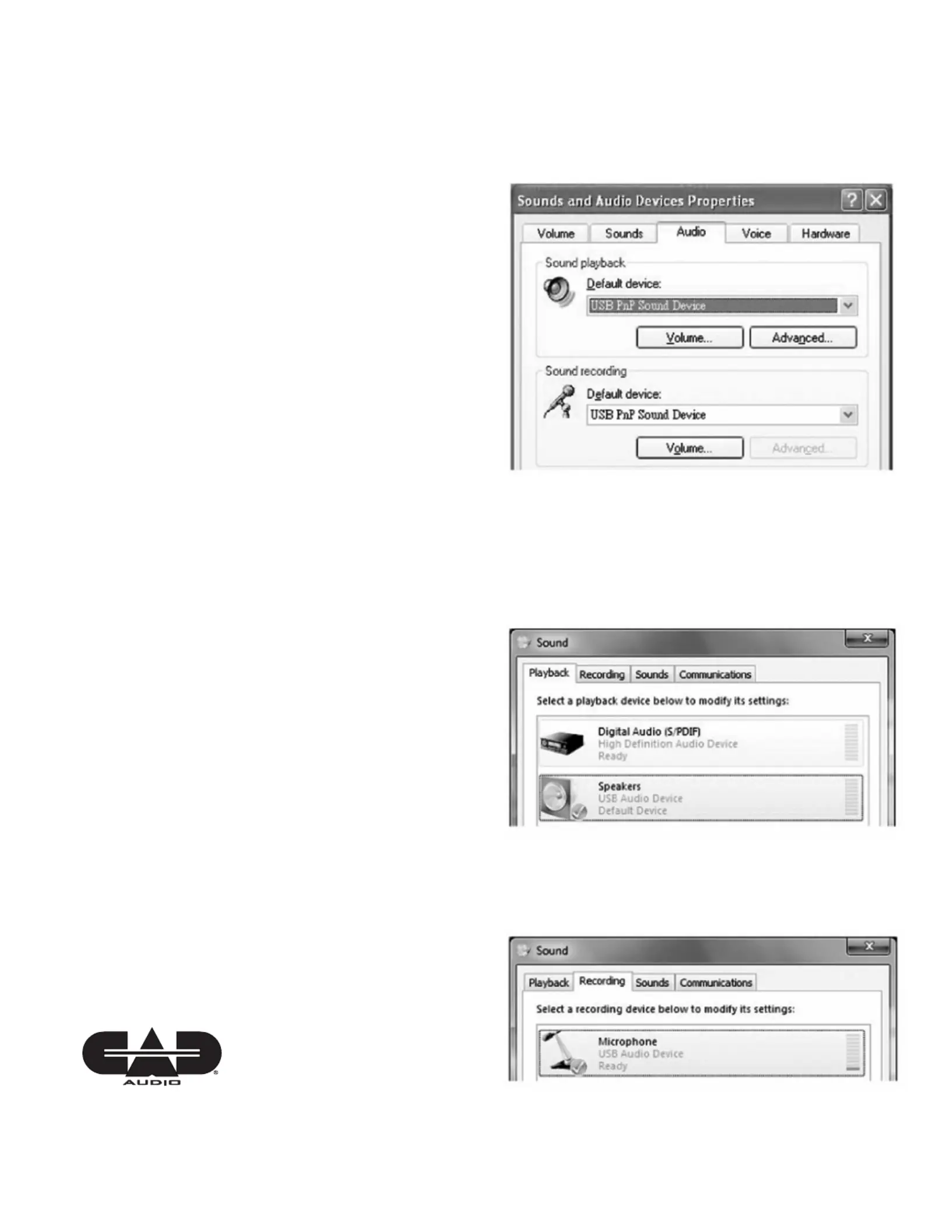

Win 2000, Win XP
Go to Control Panel > Sounds and Audio
Devices Properties > Audio. Choose USB
PnP Sound Device for Default device under
Sound playback. Click on Apply and then OK.

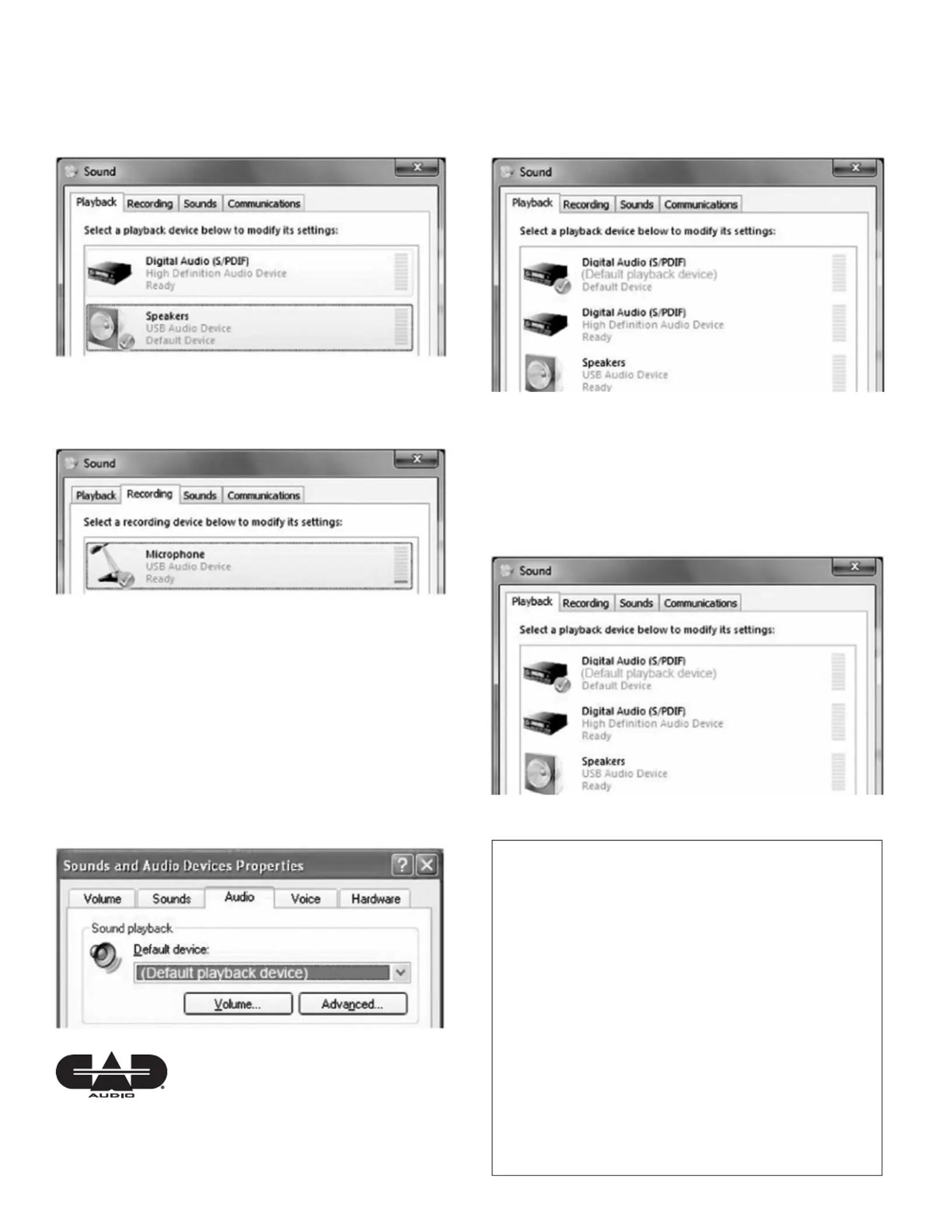

Win Vista
Go to Control Panel > Sound > Playback,
select Speakers 2-USB PnP Sound Device,
click Set Default
Go to Recording, select Microphone
2-USB PnP Sound Device, click Set Default
and then OK.
©2010 CAD Audio Part No. 64517-22-00 Dec2010
CAD Audio
6573 Cochran Rd., Bldg. I Solon, OH 44139 U.S.A.
Tel: (440) 349-4900 Fax: (440) 248-4904
Sales: 800-762-9266 www.cadaudio.com
Produktspecifikationer
| Varumärke: | CAD Audio |
| Kategori: | mikrofon |
| Modell: | U9 |
| Modell: | Mikrofon till PC |
| Bithastighet: | 16 bit |
| Mikrofonfrekvens: | 50 - 18000 hz |
| Produktens färg: | Svart |
| Hörlursutgång: | Ja |
| USB-ström: | Ja |
| USB-port: | Ja |
| Plug & Play-kompatibel: | Ja |
| Harmonized System (HS)-kod: | 85181000 |
| Mikrofon känslighet (utnivå): | 56 dB |
