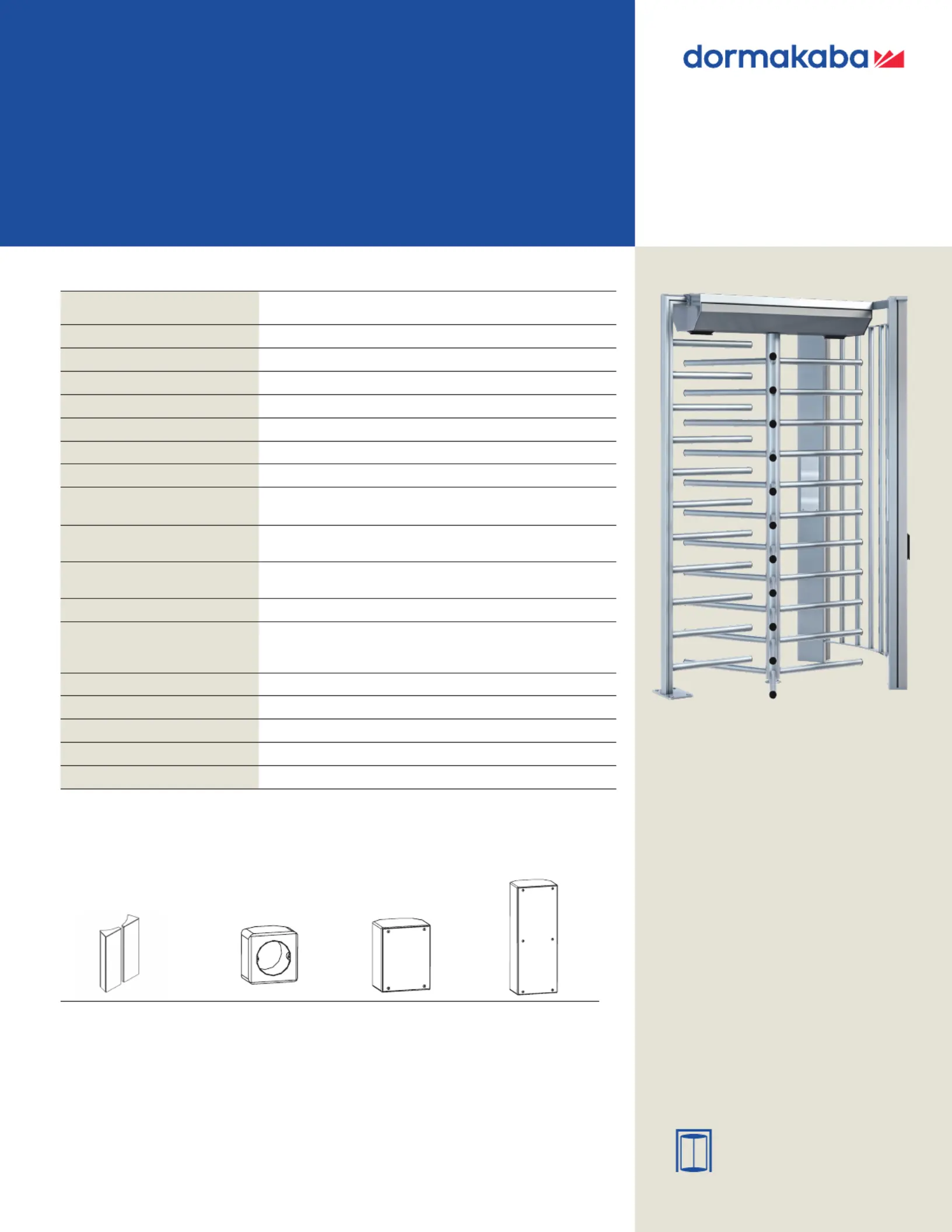

FTS-E05
Most economical
full height turnstile
Entrance systems
Standard units FTS-E05
Construction column diameter 51-13/16" (1300 mm)
Portal width 59-1/16" (1500 mm)
Total height 89-3/8" (2270 mm)
Passage height 81-1/8" (2060 mm)
Passage width 25-7/16" (646 mm)
Portal and housing Steel
Lockable maintenance opening Aluminum
Rotating unit with tubular
column, Ø3-1/2" (Ø89 mm)
120° each with 11 bar-shaped crossbars Ø1-9/16" (Ø40 mm)
in hot-dip galvanized steel with black plastic cover caps.
Barrier element With 11 straight horizontal crossbars Ø1-5/8" (Ø42 mm),
made of steel.
Finish Rotating unit made of steel, hot-dip galvanized steel
elements.
Rotor 3-blade rotor
Function Power assist—Power-assisted motion; servo-positioning drive/
electronically controlled in both directions (behavior in event of
power failure can be selected for each direction: free or blocked).
Electrical equipment Control system integrated in the unit.
Power supply 100 – 240 VAC, 50/60 Hz, 253 VA.
Standby power consumption 10 VA.
Installation Finish floor
Protection classes Housing IP33, components conducting supply voltage IP43.
Housing with lockable front
panel made of silver
anodized aluminum,
plastic-coated according to
RAL or glossy stainless steel
Plastic in color of
unit or in RAL 9006
W: 3-11/16" (94 mm)
H: 3-11/16" (94 mm)
D: 2-9/16" (65 mm)
Aluminum in color of
unit or in RAL 9006
W: 5-1/2" (140 mm)
H: 7-1/16" (180 mm)
D: 4-5/16" (110 mm)
Aluminum in color of
unit or in RAL 9006
W: 5-1/2" (140 mm)
H: 14-3/8" (365 mm)
D: 4-5/16" (110 mm)
Optional components
Housing Console 1 Console 2
Console 3
59-1/16" (1500) 57-1/16" (1450)
lighting
front panel
5-5/16" ✗ 14 -3/16"
(135 x 360)
for installations
top case
foundation = 78-3/4" (2000)
57-1/16" (1450)
4 1/7- 4"
(1200)
5-15/16"
(150)
5-11/16"
(145) 21-5/8"
(549)
37-7/16"
(951)
3/8" (10)
OUTSIDE OUTSIDE
INSIDE INSIDE
Option: top case and lighting
passage height = 81-1/8" (2060)
81-1/8" (2060)
l r edge top case 90-3/16" (2290)owe
foundation = 59-1/16" (1500)
59-1/16" (1500)
ca. 29-15/16"(760) front panel
5-5/16" ✗ 14 -3/16"
(135 x 360)
for installations
59-1/16" (1500)
3/8"
(10)
58-11/16" (1490)
78- 16 )9/ " (1995
89" (2260)
89" (2260)
15/16" (23)
1/8" (3)
89-3/8" (2270)
89-3/8" (2270)
5-5/16"
(135)
7-7/8"
(200)
1-1/2"
(38.8)
1-1/2"
(38.8)
5-1/8"
(130)
25-13/16"
(656)
Ø51-3/16"
(Ø1300)
15-3/4"
(400)
15-3/4"
(400)
18-1/2"
(470)
46-1/8" (1172)
58-11/16" (1490)
25-13/16"
(656)
Ø51-3/16"
(Ø1300)
ca. 29 16"(760)-15/
dormakaba FTS-E05 full height turnstile
EO 8.18
FTS-E05
Installation drawings
dormakaba USA Inc.
Dorma Drive, Drawer AC
Reamstown, PA 17567
844.SPECNOW
www.dormakaba.us
Note
Dimensions shown as inches
followed by millimeters; for
example, 1" (25).
