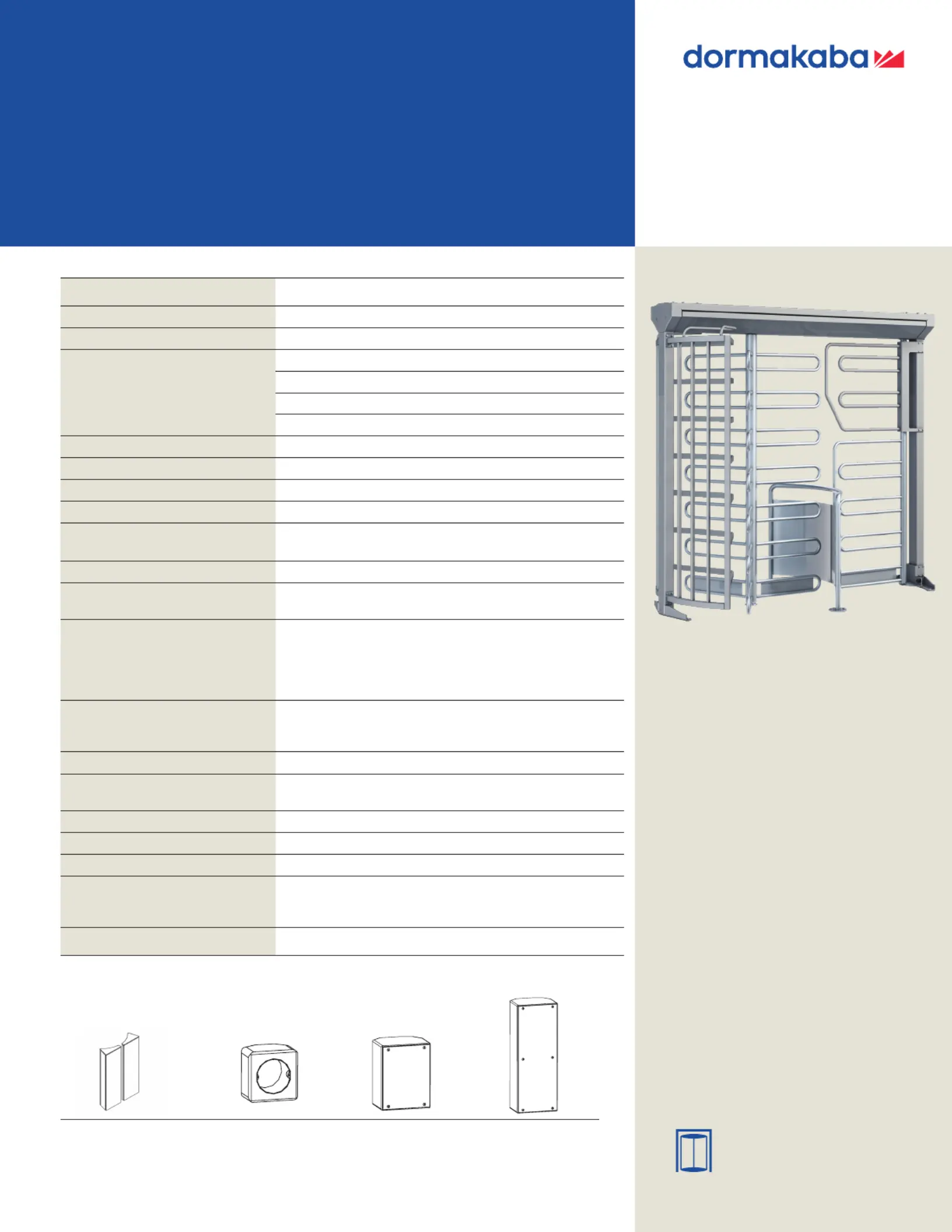

FTS-M02

Full height turnstile

with bicycle gate

Entrance systems

Function

Power assist—Power-assisted motion;

servo-positioning drive/electronically

controlled in both directions (behavior in

event of power failure can be selected for

each direction: free or blocked).

Standard unitsFTS-M02

Construction column diameter51-13/16" (1300 mm)

Portal width92-1/8" (2340 mm)

Total height89-3/8" (2270 mm)

with optional canopy D194-1/16" (2390 mm)

with optional canopy D295-1/4" (2420 mm)

with optional canopy D395-1/4" (2420 mm)

Passage height81-1/8" (2060 mm)

Passage width25-7/16" (646 mm)

Portal and housingSteel

Lockable maintenance openingAluminum

Rotating unit with tubular

column, Ø3-1/2" (Ø89 mm)

120° each with 7 U-shaped crossbars Ø1-1/16" (Ø27 mm),

made of glossy AISI 304 stainless steel.

Barrier elementCurved with 7 horizontal steel bars.

Passage limitationHalf-height made of curved tubular AISI 304 stainless steel

with plate panel.

Additional featureAutomatic bike door with three U-shaped crossbars Ø1-1/16"

(Ø27 mm) and guard plate at bottom. Tube frame, guard

plate and crossbars made of AISI 304 glossy stainless steel.

Fixed barrier element above the bike door with two U-shaped

crossbars Ø1-1/16" (Ø27 mm) and tube frame made of steel.

FinishRotating unit made of glossy stainless steel, hot-dip

galvanized steel elements, aluminum elements in RAL 9006

(white aluminum).

Rotor3-blade rotor

Function (see Function note)Power assist. Automatic bicycle door with two induction loops

and loop detector, electronically controlled in two directions.

Electrical equipmentControl system integrated in the unit.

Power supply100 – 240 VAC, 50/60 Hz, 506 VA.

Standby power consumption10 VA.

InstallationFinish floor

Sub-floor

Sleeve foundation

Protection classesHousing IP33, components conducting supply voltage IP43.

Housing with lockable front

panel made of silver

anodized aluminum,

plastic-coated according to

RAL or glossy stainless steel

Plastic in color of

unit or in RAL 9006

W: 3-11/16" (94 mm)

H: 3-11/16" (94 mm)

D: 2-9/16" (65 mm)

Aluminum in color of

unit or in RAL 9006

W: 5-1/2" (140 mm)

H: 7-1/16" (180 mm)

D: 4-5/16" (110 mm)

Aluminum in color of

unit or in RAL 9006

W: 5-1/2" (140 mm)

H: 14-3/8" (365 mm)

D: 4-5/16" (110 mm)

Optional components

Housing

Console 1

Console 2

Console 3
