DRA automatic stairway lighting

Order-No. : 0821 00

Impulse insert

Order-No. : 0336 00

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Failure to observe the instructions may cause damage to the device and result in fire and

other hazards.

Danger of electric shock. Always disconnect before carrying out work on the devise or

load. At the same time, take into account all circuit breakers that supply dangerous

voltage to the device or load.

Danger of electric shock. Automatic RMD is not suitable for disconnection from supply

voltage.

Do not connect automatic RMDs in parallel. Damage to devices may result.

Danger of electric shock. Do not operate the insert without a cover.

Use pulse insert exclusively for activation of the automatic RMD.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

Automatic RMD (Figure 1)

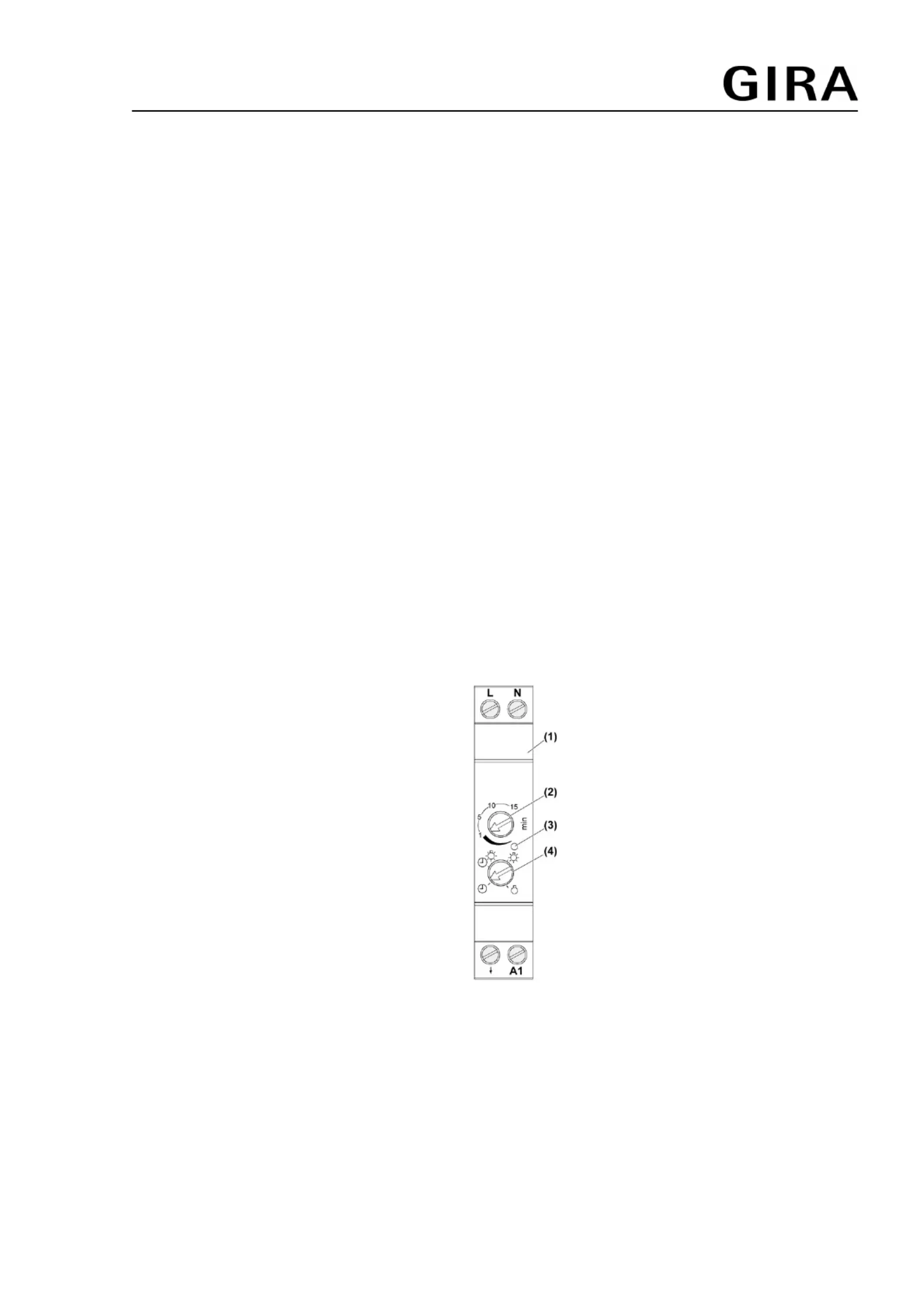

Figure 1

(1) Automatic RMD

(2) Adjuster for run-on time

(3) LED on/off: Light switched on/off

(4) Adjuster for operating mode

1/7

32549222 28.09.2011

DRA automatic stairway lighting, Impulse insert

10499177 I00

System 2000

Pulse insert (Figure 2)

Figure 2

(5) Up insert

(6) Frame

(7) Motion detector cover

(8) Screw terminals

i Optionally it is also possible to use a presence detector cover or pushbutton cover.

3 Function

Intended use of automatic RMD

- Manual or automatic switching of light in stairways

- Installation in distribution boxes on DIN rail according to EN 60715

- Switch-on via pulse insert or installation buttons

Product characteristics of the automatic RMD

- Adjustable run-on time

- Electronic overload protection for the control input

- Four different operating modes can be set:

Automatic function without switch-off pre-warning

Automatic function with switch-off pre-warning

Light switched on continuously

Light switched off continuously

Intended use of pulse insert

- Manual or automatic switch-on of an automatic RMD

- Installation in appliance box to DIN 49073

- Operation with suitable cover

Product characteristics of pulse insert

- Manual switching in combination with pushbutton cover

- Automatic switching in combination with motion detector cover

- Insert designed with 2-wire technology

Automatic switching of light

The pulse insert is combined with a motion detector cover. As soon as the brightness drops

below a value set on the motion detector cover and motions are detected, the pulse insert

sends a switch-on signal cyclically to the automatic RMD. The latter switches on the light for the

set run-on time. After the run-on time has elapsed, the automatic RMD switches the light off.

32549222 10499177 I00 28.09.2011

2/7

System 2000

DRA automatic stairway lighting, Impulse insert

After switch-off, pulse inserts with motion detector covers will not detect any motions for approx.

3 seconds.

4 Operation

Switching the light on manually

An automatic function is active on the automatic RMD, adjuster (4) is set to position or . „ €

o Press pushbutton cover on pulse insert or installation button.

Light is switched on independently of the brightness for the run-on time.

LED (3) on automatic stairway light switch lights up.

Setting operating mode on automatic RMD

„ Automatic function without switch-off pre-warning. The lighting is switched off after the run-

on time elapses.

€ Automatic function with switch-off pre-warning. After the run-on time elapses, the lighting is

not switched off immediately, but rather only after flashing three times at intervals of

10 seconds.

i In this operating mode, the service life of the relay contact may be reduced when

fluorescent lamps or energy-saving lamps are used.

‚ Light is switched on continuously.

ƒ Light switched off continuously.

o Turn adjuster (4) for the operating mode to the desired position.

i Any operating mode switch present on a motion detector cover has no function.

Setting the run-on time

Adjustment range from approx. 10 seconds (lower end stop) to approx. 15 minutes (upper end

stop).

o Set adjuster (2) on automatic RMD to the desired time.

i In the case of automatic function with prewarning the set run-on time is extended by

approx. 30 seconds.

5 Information for electrically skilled persons

5.1 Fitting and electrical connection

DANGER!

Electrical shock when live parts are touched.

Electrical shocks can be fatal.

Before carrying out work on the device or load, disengage all the

corresponding circuit breakers. Cover up live parts in the working environment.

Fitting and connection

The automatic RMD can be used for a 3-conductor circuit (Figure 3) or a 4-conductor circuit

(Figure 4). The 4-conductor circuit has the advantage that an additional luminaire can be

switched separately.

32549222 10499177 I00 28.09.2011

3/7

System 2000

DRA automatic stairway lighting, Impulse insert

Produktspecifikationer

Varumärke:	Gira
Kategori:	Smarth hem
Modell:	033600
Produkttyp:	Växelställdon
Inbyggd display:	Nej
Spänning:	230 V
Effekt:	0.5 W
Ingångsfrekvens:	50 hz
Temperatur vid drift:	5 - 45 ° C
Monteringssätt:	Infälld
Strömkälla av typen:	AC
Inbyggt djup:	32 mm
