Wireless wall transmitter, 1-gang with inscription space

Order No. : 5331..

Wireless wall transmitter, 3-gang with inscription space

Order No. : 5333 ..

Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled

persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Keep button cells out of reach of children! If button cells are swallowed, get medical help

immediately.

Risk of explosion! Do not throw batteries into fire.

Risk of explosion! Do not recharge batteries.

The radio communication takes place via a non-exclusively available transmission path,

and is therefore not suitable for safety-related applications, such as emergency stop and

emergency call.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

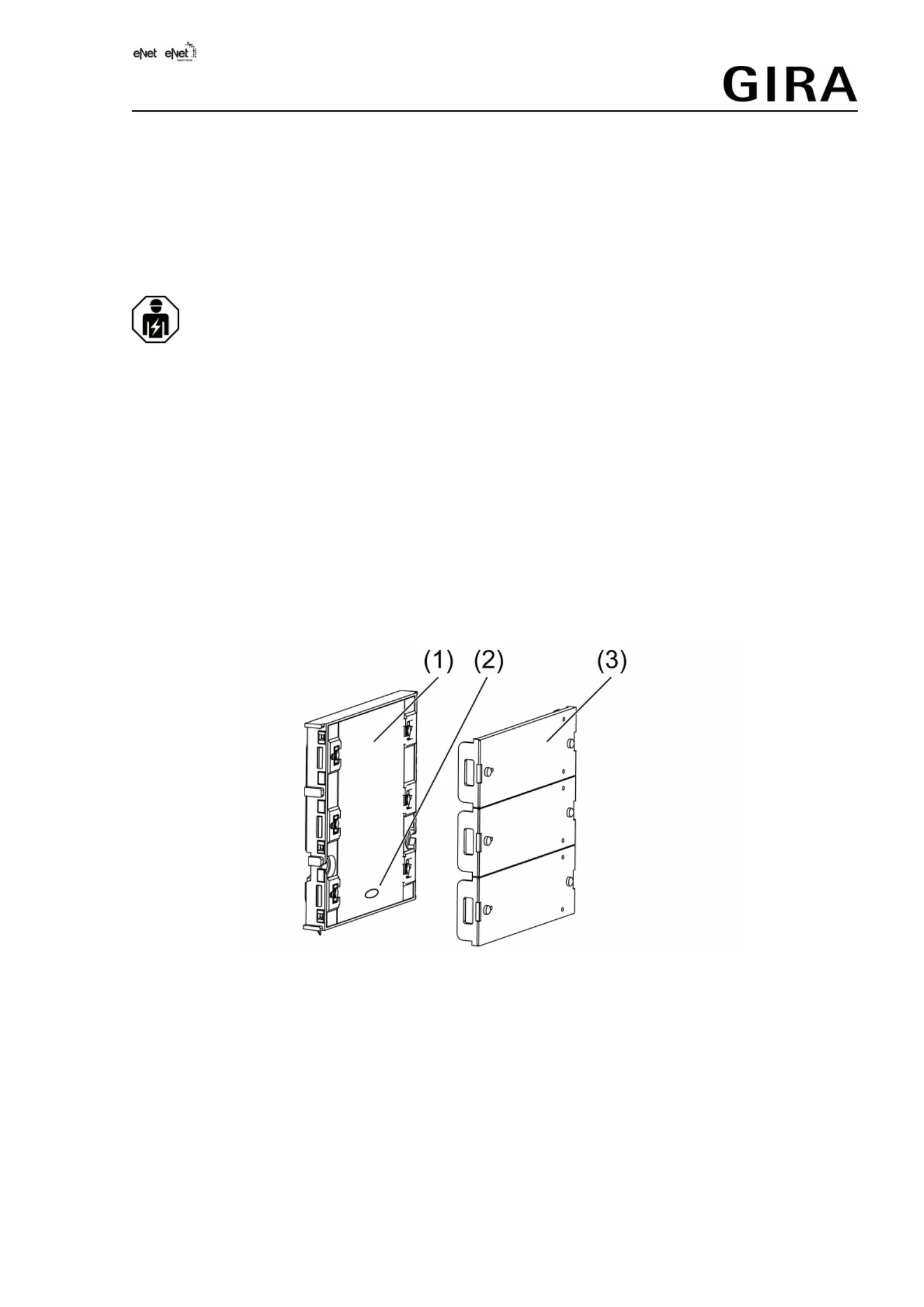

Figure 1: Radio wall transmitter

(1) Radio wall transmitter

(2) Button , coveredProg

(3) Button covers

3 Function

Intended use

- Radio sensor for transmission of switching, dimming, blind movement and scene

commands

- Operation with radio actuators from the eNet system

1/10

32579222 24.04.2017

Wireless wall transmitter, 1-gang with inscription space, Wireless wall

transmitter, 3-gang with inscription space

10864957

Product characteristics

- Two adjacent buttons each belong to one channel

- Two-coloured LEDs to the right and left of the buttons for signalling

- The switch-on brightness in combination with dimmer actuators can be saved.

- Battery-powered device

- Signalling of transmission errors can be switched off

- Scenes, radio wall transmitter, 1-gang: All Off, one individual scene

- Scenes, radio wall transmitter, 3-gang: All Off, five individual scenes

Can be set with eNet server:

- Scene All On

- Operation locks

Supplementary functions with eNet Server

- Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0

- Update of the device software

- Reading of error memory

4 Operation

iWhen operating with the eNet Server, operation and signalling could vary from what is

described here.

Function of status LED in operation

As soon as a button is pressed or released, the corresponding status LED first signals radio

communication

- The status LED lights up red for 3 seconds

and then the actuator status/group status on operation with channel buttons

- Left status LED turns green for 3 seconds:

At least one actuator is switched on, or one Venetian blind is not in the top end position

- Right status LED turns green for 3 seconds:

All the actuators are switched off or the blinds are all in the upper end position

or the actuator status/group status on operation with scene buttons

- Status LED turns green for 3 seconds:

At least one actuator is switched on, or one Venetian blind is not in the top end position

- Status LED remains off:

All the actuators are switched off or the blinds are all in the upper end position

iIf there is no status message from at least one actuator, a transmission error is signaled.

Status LED flashes red quickly for 5 seconds.

32579222 10864957 24.04.2017

2/10

Wireless wall transmitter, 1-gang with inscription space, Wireless wall

transmitter, 3-gang with inscription space

Channel assignment of the wall transmitter

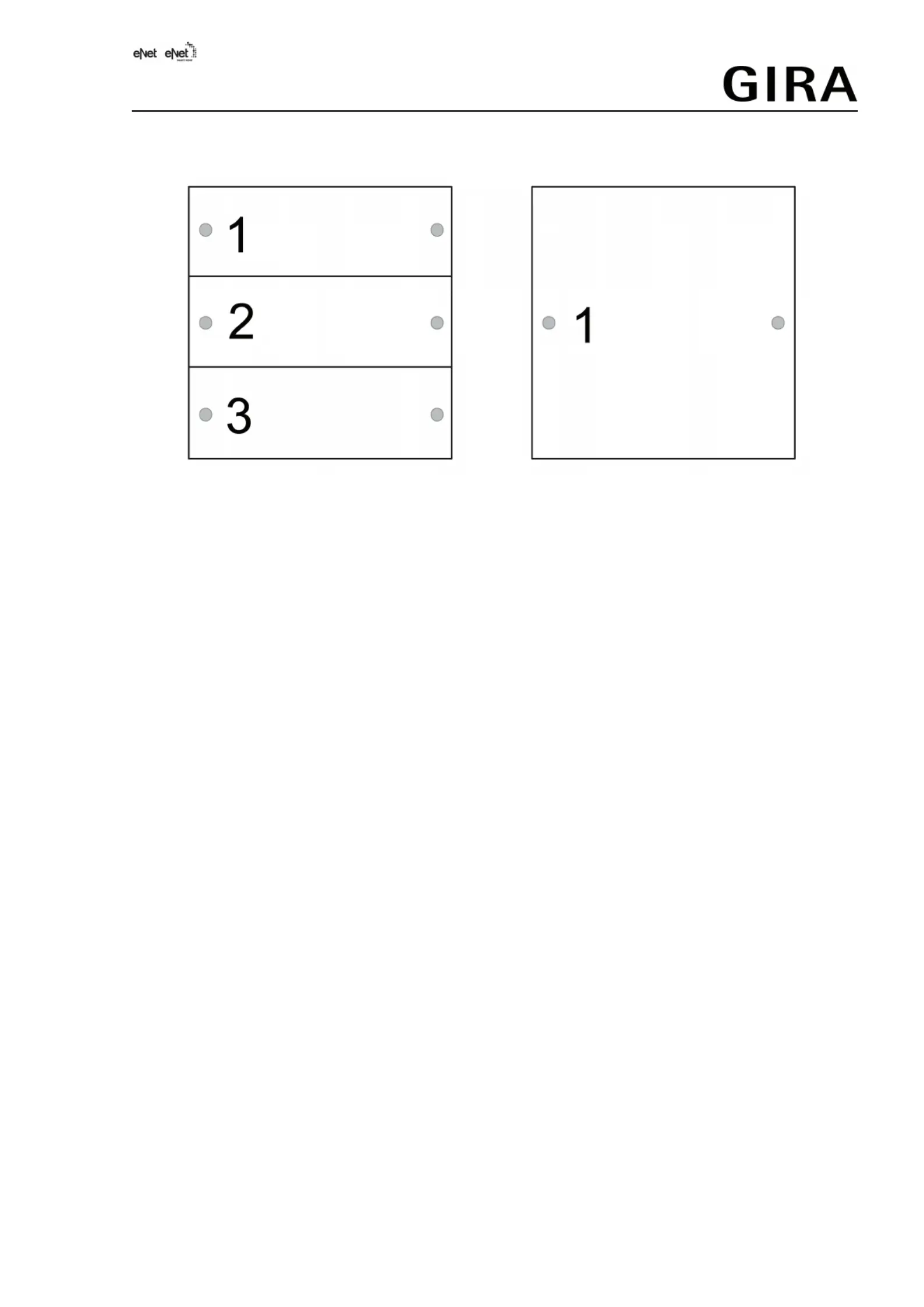

Figure 2: Channel assignment for operation

Operating light

oSwitching: Press button for less than 0.4 seconds.

oDimming: Press the button for longer than 0.4 seconds. The dimming process ends when

the button is released.

oSwitching on dimmer actuators at minimum brightness: Press the right button for longer

than 0.4 seconds.

oSwitching on dimmer actuators at minimum brightness and dimming to maximum

brightness: Press the left button for longer than 0.4 seconds.

Operating blind

oMoving the Venetian blind: Press the button for longer than 1 second.

oStopping or adjusting the Venetian blind: Press the button for less than 1 second.

Operating push-button actuator

oPress the button. The load is switched on for the duration of the button-press.

iThe maximum actuation length is 60 seconds.

Recalling scenes

oPress the scene button briefly.

Actuators switching to the saved scene.

Changing scene

oPress the scene button briefly.

Actuators switching to the saved scene.

oSetting a new scene.

oPress scene button for longer than 4 seconds.

Actuators first switching to the old scene and save the new scene after 4 seconds.

Save switch-on brightness

With dimmer actuators a brightness value can be saved to which the dimmer actuator switches

after a short button press.

The buttons of a channel are set as channel buttons.

oSet required switch-on brightness.

32579222 10864957 24.04.2017

3/10

Wireless wall transmitter, 1-gang with inscription space, Wireless wall

transmitter, 3-gang with inscription space

Produktspecifikationer

Varumärke:	Gira
Kategori:	Smarth hem
Modell:	5333100
Inbyggd display:	Nej
LED-indikatorer:	Ja
Gränssnitt:	RF Trådlös
Modell:	Väggmonterad
Antal kanaler:	3 kanaler
Driftspänning:	3 V
Sändningseffekt:	20 mW
Stora knappar:	Ja
Batteriteknik:	Litium
Batterityp:	CR 2450N
Antal batterier:	1
Produktens färg:	Vit
Temperatur vid drift:	-5 - 45 ° C
Internationellt skydd (IP) kod:	IP20
Anslutningsteknologi:	Trådlös
Batterier medföljer:	Ja
Arbetsfrekvens:	868.3 MHz
