Sida 1/8

Wireless remote control, 2-gang

Order No. : 5352 10

Wireless remote control, 4-gang

Order No. : 5354 10

Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled

persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Keep button cells out of reach of children! If button cells are swallowed, get medical help

immediately.

Risk of explosion! Do not throw batteries into fire.

Risk of explosion! Do not recharge batteries.

The radio communication takes place via a non-exclusively available transmission path,

and is therefore not suitable for safety-related applications, such as emergency stop and

emergency call.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

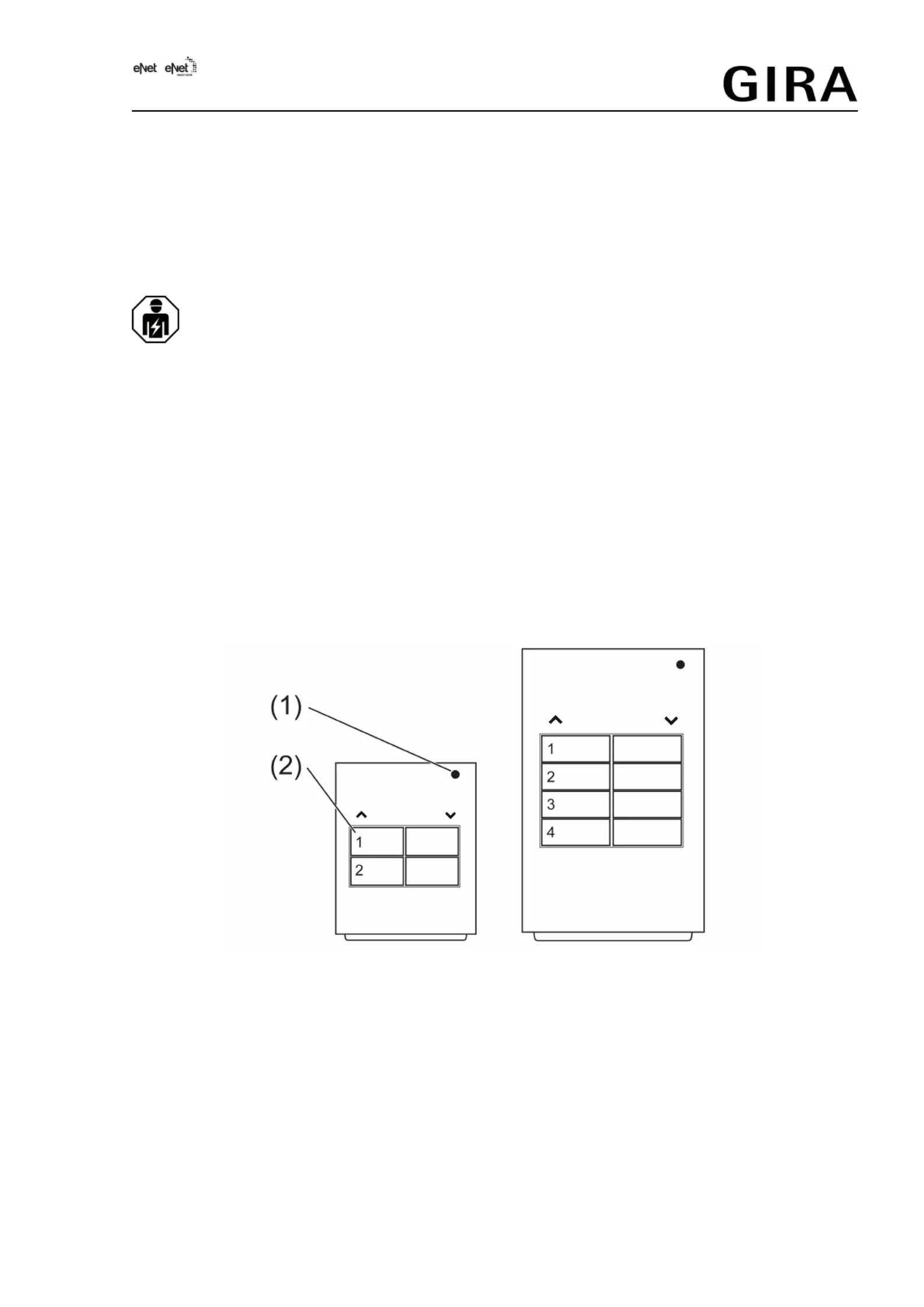

Figure 1: Radio hand transmitter 2-gang and 4-gang

(1) Status LED

(2) Buttons

3 Function

Intended use

- Hand transmitter for radio transmission of switching, dimming, blind movement and scene

commands

- Operation with radio actuators from the eNet system

Product characteristics

- Two adjacent buttons each belong to one channel

1/7

32582422 25.04.2017

Wireless remote control, 2-gang, Wireless remote control, 4-gang

10864952

- Status indication with LED

- Switch-on brightness of dimmer actuators can be saved.

- Battery-powered device

- Scenes, radio hand transmitter, 2x: All Off, three individual scenes.

- Scenes, radio hand transmitter, 4x: All Off, seven individual scenes.

- Signalling of transmission errors can be switched off

Can be set with eNet server:

- Scene All On

- Operation locks

Supplementary functions with eNet Server

- Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0

- Update of the device software

- Reading of error memory

4 Operation

iWhen operating with the eNet Server, operation and signalling could vary from what is

described here.

One channel of a radio hand transmitter consists of two buttons. These can be used in two

different ways.

- As channel buttons for switching, dimming, Venetian blind operation

- As scene buttons to recall set scenes

Function of status LED in operation

As soon as a button is pressed or released, the status LED (1) first signals radio transmission

- LED turns red for 3 seconds

and then the actuator status/group status

- LED turns green for 3 seconds:

At least one actuator is switched on, or one Venetian blind is not in the top end position

- LED remains off:

All the actuators are switched off or the blinds are all in the upper end position

or - if there is no status message from an actuator - a transmission error.

- The LED rapidly flashes red for 5 seconds:

The status message of at least one actuator is missing

Operating light

oSwitching: Press button for less than 0.4 seconds.

oDimming: Press the button for longer than 0.4 seconds. The dimming process ends when

the button is released.

oSwitching on dimmer actuators at minimum brightness: Press the right button for longer

than 0.4 seconds.

oSwitching on dimmer actuators at minimum brightness and dimming to maximum

brightness: Press the left button for longer than 0.4 seconds.

Operating blind

oMoving the Venetian blind: Press the button for longer than 1 second.

oStopping or adjusting the Venetian blind: Press the button for less than 1 second.

Operating push-button actuator

oPress the button. The load is switched on for the duration of the button-press.

iThe maximum actuation length is 60 seconds.

Recalling scenes

oPress the scene button briefly.

Actuators switching to the saved scene.

32582422 10864952 25.04.2017

2/7

Wireless remote control, 2-gang, Wireless remote control, 4-gang

Changing scene

oPress the scene button briefly.

Actuators switching to the saved scene.

oSetting a new scene.

oPress scene button for longer than 4 seconds.

Actuators first switching to the old scene and save the new scene after 4 seconds.

Save switch-on brightness

With dimmer actuators a brightness value can be saved to which the dimmer actuator switches

after a short button press.

The buttons of a channel are set as channel buttons.

oSet required switch-on brightness.

oPress both buttons of a channel simultaneously for longer than 4 seconds.

The light is briefly switched off and switched on again to the switch-on brightness. Switch-

on brightness is saved.

Polling sum status

The buttons of a channel are set as channel buttons.

oPress both buttons of a channel simultaneously for 1 to 4 seconds.

Signalling of radio transmission and group status (see function of the status LED in

operation)

5 Information for electrically skilled persons

5.1 Commissioning

DANGER!

Electrical shock when live parts are touched.

Electrical shocks can be fatal.

During commissioning, cover the parts carrying voltage on radio transmitters

and actuators and in their surrounding area.

Insert battery

WARNING!

Risk of chemical burns.

Batteries can burst and leak.

Replace batteries only with an identical or equivalent type.

oOpen battery compartment on the rear side of the hand-held transmitter.

iKeep contacts of batteries and device free of grease.

oApply battery to the positive contact of the battery holder. Observe polarity: the positive

pole of the battery must be at the top.

oPress gently on battery to snap it in.

oClose battery compartment.

Hand-held transmitter is ready for operation.

32582422 10864952 25.04.2017

3/7

Wireless remote control, 2-gang, Wireless remote control, 4-gang

Produktspecifikationer

Varumärke:	Gira
Kategori:	Smarth hem
Modell:	535210
Inbyggd display:	Nej
Bredd:	40.5 mm
Djup:	15 mm
Höjd:	55 mm
LED-indikatorer:	Ja
Gränssnitt:	RF Trådlös
Modell:	Handhållen
Antal kanaler:	2 kanaler
Driftspänning:	3 V
Sändningseffekt:	20 mW
Stora knappar:	Ja
Batteriteknik:	Litium
Batterityp:	CR 2450N
Programmerbar:	Ja
Antal batterier:	1
Produktens färg:	Antracit
Temperatur vid drift:	-5 - 45 ° C
Internationellt skydd (IP) kod:	IP10
Anslutningsteknologi:	Trådlös
Batterier medföljer:	Ja
Arbetsfrekvens:	868.3 MHz
