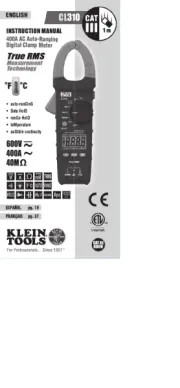

Sida 1/27

INSTRUCTION MANUAL

ENGLISH

400A AC/DC Auto-Ranging

Digital Clamp Meter

True RMS

Measurement

Technology

600V

400A

40M

CL390

-40° –

1832°F

-40° –

1000°C

FRANÇAIS pg. 37

ESPAÑOL pg. 19

400A AC/DC Auto-Ranging

Digital Clamp Meter

True RMS

Measurement

Digital Clamp Meter

True RMS

Measurement

CAT III

600V

• AC/DC CURRENT

• HIGH VISIBILITY

DISPLAY

• NON-CONTACT

VOLTAGE TESTING

• DC MICRO-AMPS

• AUTO-RANGING

• DATA & RANGE HOLD

• TEMPERATURE

2 3

GENERAL SPECIFICATIONS

Klein Tools CL390 is an automatically ranging true root mean

square (TRMS) digital clamp meter that measures AC/DC current

via the clamp, AC/DC voltage, DC microamps, resistance, continuity,

frequency, capacitance, tests diodes via test-leads, and temperature

via a thermocouple probe. It features a high visibility, reverse contrast

LCD display that optimizes viewability both in dark or bright ambient

lighting.

• Operating Altitude: 6562 ft. (2000m)

• Relative Humidity: <95% non-condensing

• Operating Temp: 32° to 122°F (0° to 50°C)

• Storage Temp: 14° to 122°F (-10° to 50°C)

• Accuracy: Values stated at 65° to 83°F (18° to 28°C)

• Temp Coefcient: 0.1 x (Quoted Accuracy) per °C above

28°C or below 18°C, corrections are required when ambient

working temp is outside of Accuracy Temp range

• Dimensions: 8.46" x 3.54" x 1.50" (215 x 90 x 38 mm)

• Weight: 10.26 oz. (291 g) including batteries

• Calibration: Accurate for one year

• Auto Power-Off (APO): After approx. 5 minutes of inactivity

• Standards: IEC EN 61010-1, 61010-2-032, 61010-2-033.

IEC EN 61326-1, 61326-2-2.

Conforms to UL STD.61010-1,

61010-2-032,61010-2-033;

Certified to CSA STD.C22.2 NO. 61010-1,

61010-2-032,61010-2-033.

• Pollution degree: 2

• Accuracy: ± (% of reading + # of least significant digits)

• Drop Protection: 6.6 ft. (2m)

• Safety Rating: CATIII 600V, Class 2, Double insulation

CAT III: Measurement category III is applicable to test and

measuring circuits connected to the distribution part of the

building’s low-voltage MAINS installation.

• Electromagnetic Environment: IEC EN 61326-1. This

equipment meets requirements for use in basic and controlled

electromagnetic environments like residential properties,

business premises, and light-industrial locations.

Specifications subject to change.

ELECTRICAL SPECIFICATIONS

Function Range Resolution Accuracy

AC Voltage

(V AC)

400.0mV 0.1mV ±(1.8% + 5 digits)

4.000V 0.001V ±(1.5% + 5 digits)

40.00V 0.01V

±(1.2% + 5 digits)

400.0V 0.1V

600V 1V ±(1.5% + 5 digits)

DC Voltage

(V DC)

400.0mV 0.1mV ±(1.0% + 8 digits)

4.000V 0.001V

±(0.8% + 3 digits)40.00V 0.01V

400.0V 0.1V

600V 1V ±(1.0% + 3 digits)

Input Impedance: ~10MΩ

Frequency Range: 45 to 400Hz

Maximum Input: 600V AC RMS or 600V DC

AC Current

(A AC)

40.00A 0.01A

±(2.0% + 9 digits)

400.0A 0.1A

DC Current

(A DC)

40.00A 0.01A

±(2.0% + 9 digits)

400.0A 0.1A

Frequency Range: 50 to 60Hz

Minimum Current Measurable: 0.3A AC or DC

Microamps

(DC µ)

200µA 0.1µA ±(1.0% + 5 digits)

Maximum Input: 600V AC RMS or 600V DC

Resistance

400.0Ω 0.1Ω ±(1.2% + 5 digits)

4.000kΩ 0.001kΩ

±(1.2% + 3 digits)

40.00kΩ 0.01kΩ

400.0kΩ 0.1kΩ

4.000MΩ 0.001MΩ

40.00MΩ 0.01MΩ ±(2.0% + 5 digits)

Maximum Input: 600V AC RMS or 600V DC

ENGLISH

Produktspecifikationer

Varumärke:	Klein Tools
Kategori:	mätning
Modell:	CL390
Produkttyp:	Digital multimeter
Vikt:	314 g
Bredd:	89 mm
Djup:	215 mm
Höjd:	38 mm
Automatisk avstängning:	Ja
Batterityp:	AAA
Upplösning (växelström):	200 pA
Antal batterier:	3
Produktens färg:	Black, Orange
väska:	Ja
DC-spänningsområde:	0 - 600 V
AC-spänningsområde:	0 - 600 V
Placeringar som kan användas:	Handhållen multimeter
Batterier medföljer:	Ja
Displaytyp:	LCD
Strömkälla:	Batteri
Mätningskategori:	CAT III 600V
Intervall för temperaturmätning:	-40 - 1000 ° C
Testkablar:	Ja
