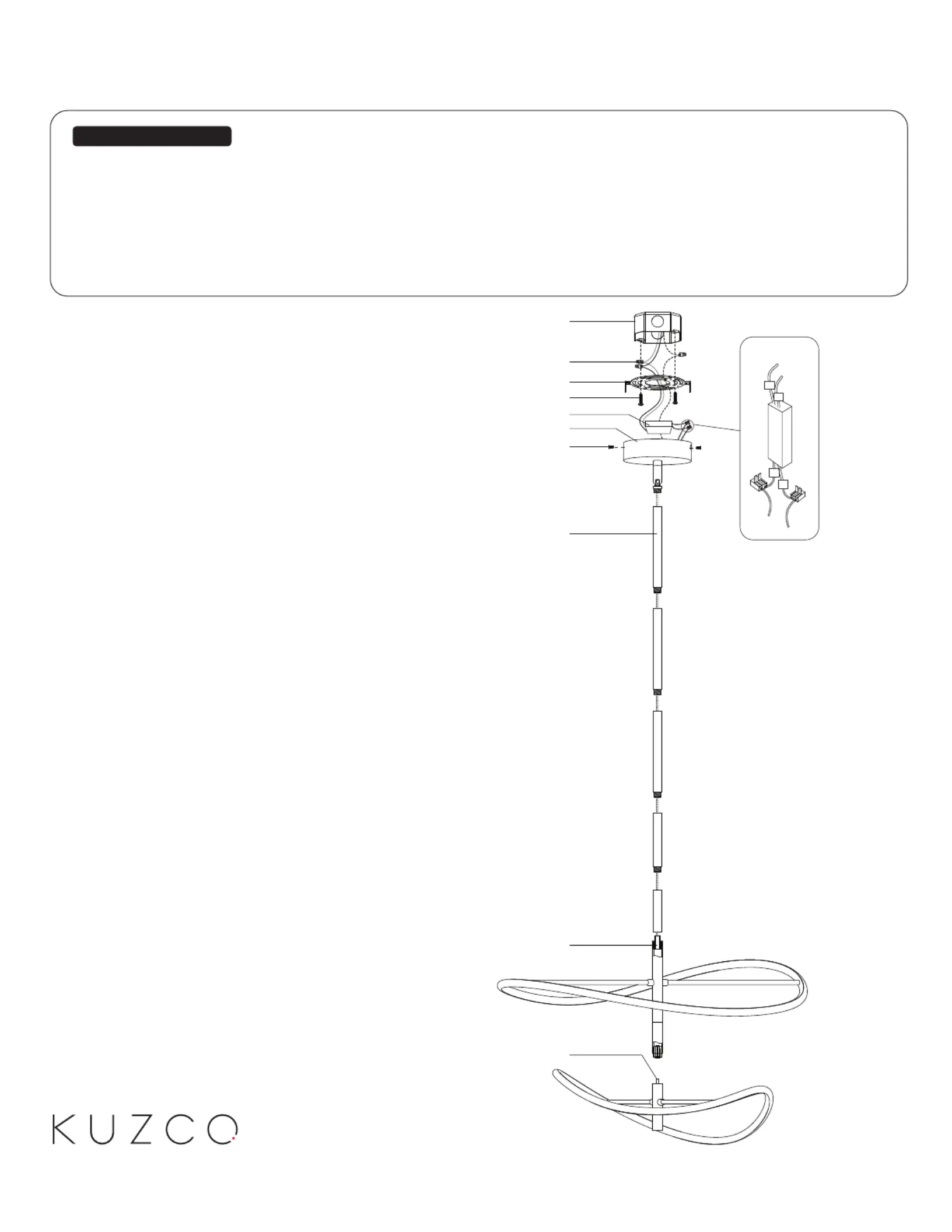

INSTALLATION SHEET
PD96424
Ceiling LED Pendant
19054 28th Avenue Surrey, BC Canada V3Z 6M3
T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196
W: kuzcolighting.com
20230109
START FROM HERE
• Make sure is POWERCOMPLETELY OFF at the fuse box
• Have your fixture installed by a qualified licensed electrician
• Prepare everything in a clear area
• Wear gloves at all time during this installation
• Read instructions carefully before you start assembly
• Keep this installation sheet for future reference
Technical Support: 1-855-855-8926
Please Note:
• This Kuzco LED fixture comes with pre-wired LED module(s)
• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary
contact with the module could cause permanent damage
• Use ELV (Electronic Low Voltage) or TRIAC type of dimmer for dimming application
• 120V input
1.
2.
3.
4.
5.
6.
7.
8.
9.
Remove fixture from its original package
Separate mounting plate from canopy by (1c)(2a)
removing canopy screws (2b)
Attach mounting plate to electrical junction box (1c)
(1a)(1e) using junction box screws provided in
hardware package
Determine hanging height of fixture by securing rods
(2d) (2a) to canopy and top fixture body (3a) after
feeding fixture wires (LED+ and LED-) through rods
Make proper electrical connections between LED and
DC driver, LED- Negative, LED+ Positive using quick
connector provided (See Illustration 1 and refer to
diagram on driver)
Make proper electrical connections ( to “L”, blackhot
whiteground“GND”) to “N”, neutral to with wire
nuts (1b) provided in hardware package and then
place driver inside canopy (4a)(2a)
Attach canopy to mounting plate with canopy (2a)(1c)
screws (2b)
Attach bottom fixture body to top fixture body (3b)(3a)
by threading clockwise
Rotate top fixture body to desired position(3a)
2d.
3a.
3b.
2b.
1a.
1b.
1c.
1e.
2a.
4a.
DC
Driver
N
L
-
+
Illustration 1
Low Voltage
