Sida 1/8
McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 www.mcintoshlabs.com
MHA200
Tube Headphone Amplier
Owner’s Manual
2
Important Safety Information is supplied in a separate document “Important Additional Operation Information Guide ”
Copyright 2020 © by McIntosh Laboratory, Inc.
Inside the Box
Besides all the protective packaging you should nd:
• A literature pack including this manual
• An AC Power Cord
• An MHA200 Headphone Amplier
Taking it out of the Box
The easiest way to remove the MHA200 from its
shipping carton is to:
• Open the top of the box
• Remove and read this manual
• Gently turn the box over with the aps
extended outward
• Lift the box upward to reveal the foam
encased MHA200
• Carefully remove the MHA200 from the
packaging
Where to Put it
Place the MHA200 upright on a sturdy at surface
that can support its weight with adequate open space.
Cool operation ensures the longest possible operating
life for any electronic instrument. Always allow air to
ow through the ventilation holes on the bottom of the
amplier and space for the warm air to escape at the
top.
Allow at least 19 inches (48.3cm) above the top; 4
inches (10.2cm) for the Rear and Sides; allow 1/2 inch
(1.3cm) below the Power Amplier so the airow is
not obstucted. Do not remove the feet.
For dimensions see “Dimensions” on page 6.
DO THIS FIRST
Removal of Foam Inserts over Vacuum
Tubes
IMPORTANT!
REMOVE THE FOAM INSERTS OVER THE
VACUUM TUBES PRIOR TO CONNECTING
THE A.C. POWER SUPPLY CORD.
• To prevent damage to the Tubes during
shipping, there are special foam inserts
surrounding the Tubes of the Power Amplier
• The Foam Inserts must be removed from
the MHA200 before connecting the AC Power
Supply Cord to the Power Amplier
• Failure to do so has the potential of a
Fire Hazard, resulting in damage to the
MHA200 and the surrounding environment
• Follow these instructions for removal of
the packing foam before connecting the AC
Power Supply Cord to the MHA200
To remove the protective foam, it is necessary to
temporarily remove the two Tube Covers. To remove
each Tube Cover:
• Use a Phillips Head #2 screw driver to remove
the two screws that hold the Tube Cover (see
Figure 01)
• Pull the Tube Cover upward o of the Tube
Cover Retaining Posts (see Figure 02)
• Pull the protective foam straight up o the
Vacuum Tubes (see Figure 02)
• Replace the Tube Cover
• Replace the two screws to secure the cover to
the Tube Cover Retaining Posts (see Figure
01)
Save the protective foam and warning label for
possible future use.
4
AN Y /ST ON
1
LOAD RANGE
STER EOR
HEAD PHONE OUTPUT S
STER EO
L
INPUTS
120V 50 60Hz/
50 WATT S
McINTO SH LABORATORY, INC., BINGHAMTO N, NY
HANDCRA FTED IN USA WIT H US AND IMPORTE D PARTS
MHA 200 TUBE HEAD PHON E A MPLI FIER
POWER
CONTROLL R
L
R
BALANCEDUNBALANCED
IN
OUT
Screws

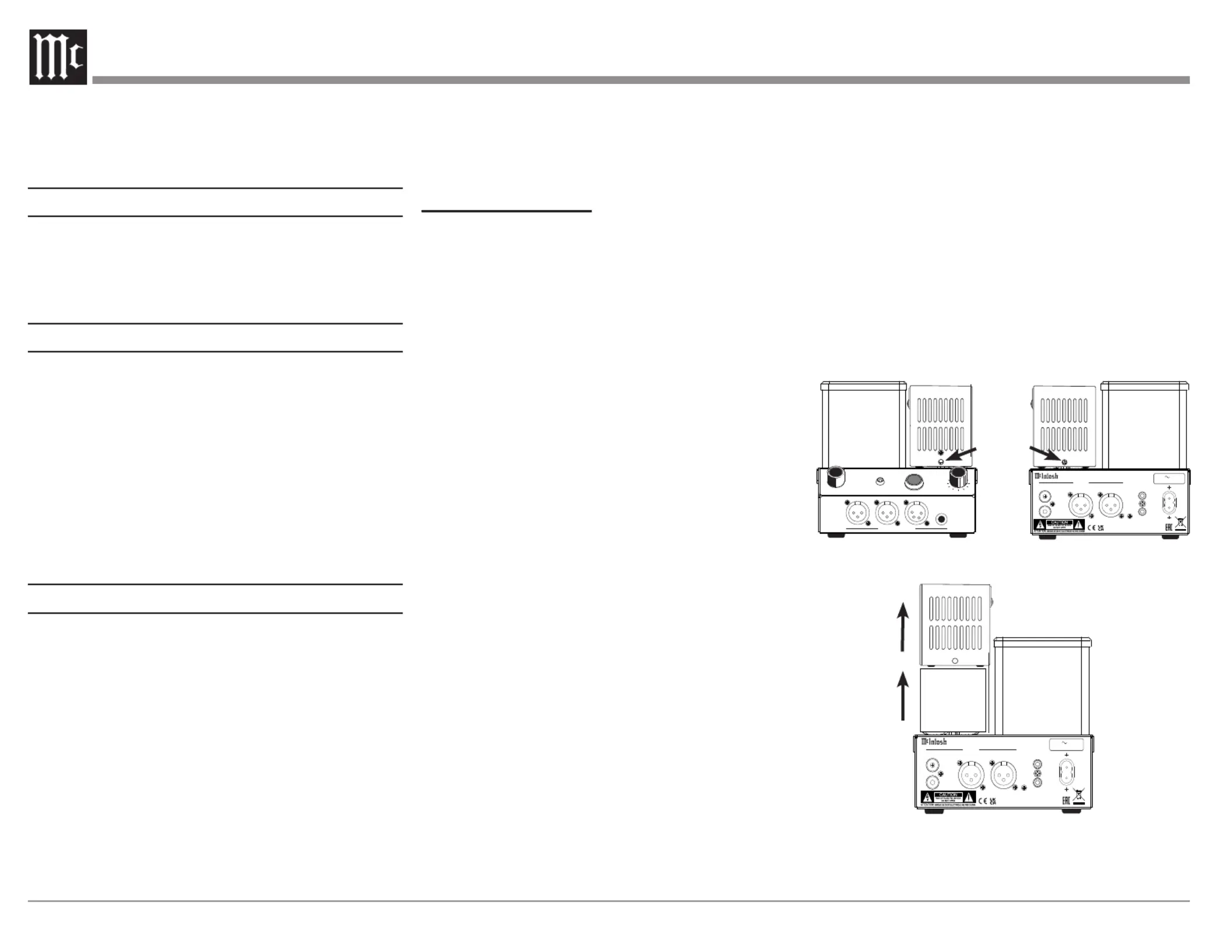

Figure 01– Tube cover screws
INPUTS
120V 50 60Hz/
50 WATTS
McI NTOS H LAB ORATORY, I NC., B INGHA MTON, NY
HANDCRAFTED IN USA WITH US AND IMPORTED PARTS
MHA 200 TUBE HEADP HONE AMPL IFIE R
POWER
CONTROLL R
L
R
BALAN CEDUNBALANCED
IN
OUT
Figure 02– Lift Tube Cover and foam up
3
Thank you from all of us at McIntosh
You have invested in a precision instrument that will
provide you with many years of enjoyment. Please
take a few moments to familiarize yourself with
the features and instructions to get the maximum
performance from your equipment.
If you need further technical assistance, please contact
your dealer who may be more familiar with your
particular setup including other brands. You can also
contact McIntosh with additional questions or in the
unlikely event of needing service.
McIntosh Laboratory, Inc.
2 Chambers Street
Binghamton, New York 13903
Technical Assistance: (607) 723-3512
Customer Service: (607) 723-3515
Fax: (607) 724-0549
Email: support@mcintoshlabs.com
Website: mcintoshlabs.com
Make a Note
For future reference, you can jot down your serial
number and purchase information here. We can
identify your purchase from this information if the
occasion should arise.
Serial Number:
Purchase Date:
Dealer Name:
List of Figures
Figure 01– Tube cover screws 2 ...............................
Figure 02– Lift Tube Cover and foam up 2 .............
Figure 03– Rear Panel 4 ..........................................
Figure 04– XLR cable 4 .........................................
Figure 05– RCA Cable 4 .........................................
Figure 06– Power control (trigger) mini plug 4 .......
Figure 07– Front View 5 ..........................................
Figure 08– 3-pin XLR wiring 5 ..............................
Figure 09– 4-pin XLR wiring 5 ..............................
Figure 10– Tube locations..................................... 5
The MHA200 is a McIntosh Vacuum Tube
Amplifier designed and crafted for one
purpose- to power your headphones with
the best possible sound.
• Output stage is a Push-Pull pure
Class-A triode
• Only Headphone Amplifier with Unity
Coupled Output Transformers and
Proprietary Push-pull configuration
technology
• Guaranteed 500mW power for ALL
loads from 32 to 600 Ohm
Table of Contents
Inside the Box 2 ........................................................
Taking it out of the Box 2 .........................................
Where to Put it 2 .......................................................
Removal of Foam Inserts over Vacuum Tubes 2 ......
Thank you from all of us at McIntosh 3 ...................
Make a Note ........................................................... 3
Making Connections ............................................. 4
The Inputs on the Back 4 .....................................
Balanced or Unbalanced Input .......................... 4
Power Control (Trigger) Input 4 ..........................
Power Control (Trigger) Output 4 .......................
The Knobs on the Front 4 .........................................
The Left Knob (Load) 4 ......................................
The Right Knob (Volume) 4 ................................
Connecting Headphones ................................... 5
The Power Button and Standby LED ............... 5
Dimensions ............................................................ 6
Re-packing the MHA200 6 ......................................
Technical Specifications 7 .......................................
