Sida 1/5

CCR1009-7G-1C-1S+

CCR1009-7G-1C-1S+CCR1009-7G-1C-1S+

CCR1009-7G-1C-1S+

1U rackmount, 7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1.2 GHz CPU, 2GB RAM, LCD panel, Dual Power

supplies, SmartCard slot, RouterOS L6.

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing

accidents.

Ultimate disposal of this product should be handled according to all national laws and regulations.

The Installation of the equipment must comply with local and national electrical codes.

This unit is intended to be installed in the rackmount. Please read the mounting instructions carefully before beginning installation. Failure to use the

correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.

This product is intended to be installed indoors. Keep this product away from water, fire, humidity or hot environments.

Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.

Read the installation instructions before connecting the system to the power source.

We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your

own risk!

In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.

It is the customer's responsibility to follow local country regulations. All Mikrotik devices must be professionally installed.

This is a Class A product. In a domestic environment, this product might cause radio interference in which case the user might be required to take

adequate measures.

Quick start

Mount unit or place on the flat surface, please see paragraph for instructions.Mounting

Connect two powering units to the AC source using provided power cords.

The Initial connection has to be done via the Ethernet cable, using the MikroTik Winbox utility.

Use Winbox to connect to the default IP address of 192.168.88.1 from any port,

user name: admin, and there is no password (or, for some models, check user and wireless passwords on the sticker).

We recommend clicking the "Check for updates" button and updating your system software to the latest version to ensure the best performance

and stability.Detailed info on how to upgrade the device ;https://mt.lv/upgrade

Set up your password to secure the device.

Mounting

The device is designed to use indoors and it can be mounted in a rackmount enclosure using provided rack mounts, or it can be placed on the desktop.

Please attach rubber pegs on the bottom of the router if the desired placement is on the flat surface or use a Phillips screwdriver to attach rackmount ears

on both sides of the device if designated use is for rackmount enclosure:

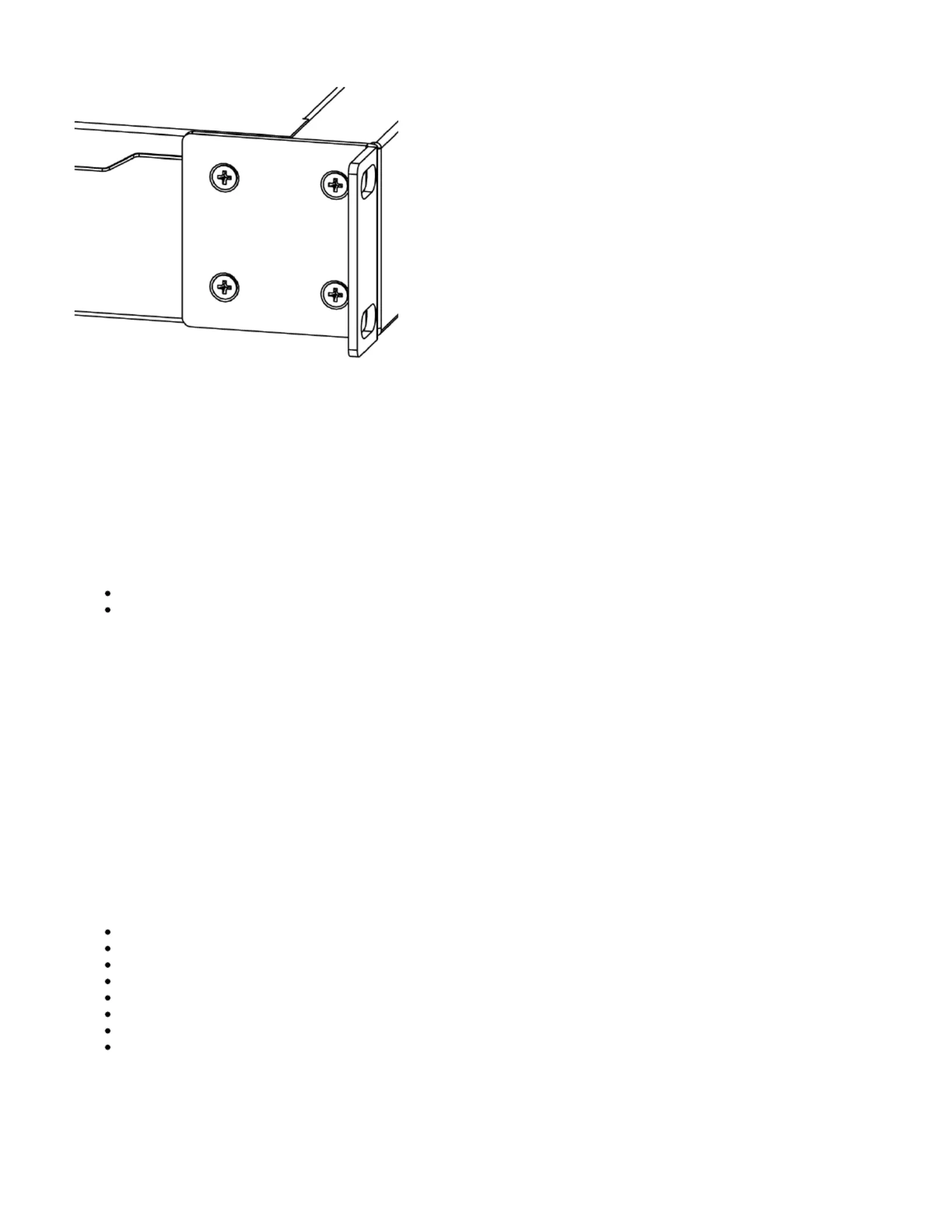

Attach rack ears to both sides of the device and tighten four screws to secure them in place, as shown in the picture.

Place the device in a rackmount enclosure and align with the holes so that the device fits conveniently.

Tighten screws to secure it in place.

The device has no protection from water contamination, please ensure the placement of the device in a dry and ventilated environment.

We recommend

shielded Cat5/6 cables for our devices. Mounting and configuration of this device should be done by a qualified person.

Powering

The device accepts powering in the following ways:

Dual power supplies for redundancy, 110-240 V AC two inputs, IEC connectors.

PoE input on Ether7 (labeled PoE/Boot), 15-57 V passive PoE only. For alternative use only.

Maximum power consumption 34 W. With attachments 39 W.

Connecting to a POE Adapter:

Connecting to a POE Adapter:Connecting to a POE Adapter:

Connect the Ethernet cable from the device Eth7 to the POE out port of the POE adapter.

Connect an Ethernet cable from your LAN to the POE adapter.

Connect the power cord to the adapter, and then plug the power cord into a power outlet.

Resetting the device

In case you wish to return the device to its original configuration, you can use the RESET button. Hold this button during boot time until LED lights start

flashing, then release the button to reset RouterOS configuration. You can use this procedure if you have forgotten the password to access the device, or

simply wish to return the unit to its default configuration state.

Extension Slots and Ports

MicroSD card slot.

MicroUSB type AB.

1x SFP cage in the combo group with 1x 10/100/1000 Ethernet port (software selectable which one will be active).

7x 10/100/1000 Ethernet ports.

RS232 serial console port (115200bit/s, 8 data bits, 1 stop bit, no parity).

1x SFP+ cage.

Two cooling fans.

Smart card slot.

Configuration

Once logged in, we recommend clicking the "Check for updates" button in the QuickSet menu, as updating your RouterOS software to the latest version

ensures the best performance and stability. For wireless models, please make sure you have selected the country where the device will be used, to

conform with local regulations.

RouterOS includes many configuration options in addition to what is described in this document. We suggest starting here to get yourself accustomed to

the possibilities: . In case IP connection is not available, the Winbox tool ( ) can be used to connect to the MAC address https://mt.lv/help https://mt.lv/winbox

of the device from the LAN side (all access is blocked from the Internet port by default).

For recovery purposes, it is possible to boot the device for reinstallation, see a section Reset button.

Reset button

The RouterBOOT reset button has the following functions. Press the button and apply the power, then:

Release the button when the green LED starts flashing, to reset RouterOS configuration to defaults.

Release the button when the LED turns solid green to clear all configuration and defaults.

Release the button after LED is no longer lit (~20 seconds) to cause the device to look for Netinstall servers (required for reinstalling RouterOS

over the network).

Regardless of the above option used, the system will load the backup RouterBOOT loader if the button is pressed before power is applied to the device.

Useful for RouterBOOT debugging and recovery.

Accessories

Package includes the following accessories that come with the device:

Two EU/US AC power cords, D03+QT3 H05VV-F 3x0.75 mm 2 1.83 m RoHS.

Fastening set for rackmount case K-10.

Two Rackmount Case Side Brackets.

USB A Female to Micro B cable.

Please visit wiki pages for MikroTik SFP module compatibility table: https://wiki.mikrotik.com/wiki/MikroTik_SFP_module_compatibility_table

Specifications

For more information about this product, specification and pictures please visit our web page: https://mikrotik.com/product/CCR1009-7G-1C-1Splus

Operating system support

The device supports RouterOS software version 6. The specific factory-installed version number is indicated in the RouterOS menu /system resource.

Other operating systems have not been tested.

Safety Notice

Electric shock hazard. This equipment is to be serviced by trained personnel only.

Federal Communication Commission Interference Statement

To avoid pollution of the environment, please separate the device from household waste and dispose of it in a safe manner, such as in

designated waste disposal sites. Familiarize yourself with the procedures for the proper transportation of the equipment to the designated

disposal sites in your area.

Produktspecifikationer

Varumärke:	Mikrotik
Kategori:	Router
Modell:	CCR1009-7G-1C-1S+
Vikt:	- g
Bredd:	444 mm
Djup:	175 mm
Höjd:	47 mm
Processorfrekvens:	1200 MHz
Internminne:	2048 MB
RS-232 port:	1
SIM-kortplats:	Ja
Rackmontering:	Ja
Ethernet WAN:	Ja
Flashminne:	128 MB
Rackkapacitet:	1U
Produktens färg:	Vit
Antal USB-portar:	1
Inbyggd processor:	Ja
Installerat operativsystem:	RouterOS
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Antal LAN (RJ-45) anslutningar:	8
Strömförbrukning (vanlig):	34 W
Temperatur vid drift:	-20 - 60 ° C
Typ av internminne:	DRAM
AC-inspänning:	100 - 240 V
Nätverksansluten (Ethernet):	Ja
Strömkälla av typen:	AC
Processorkärnor:	9
Lagringsmedia:	Flash
Antal installerade SFP+-moduler:	1
