Sida 1/5

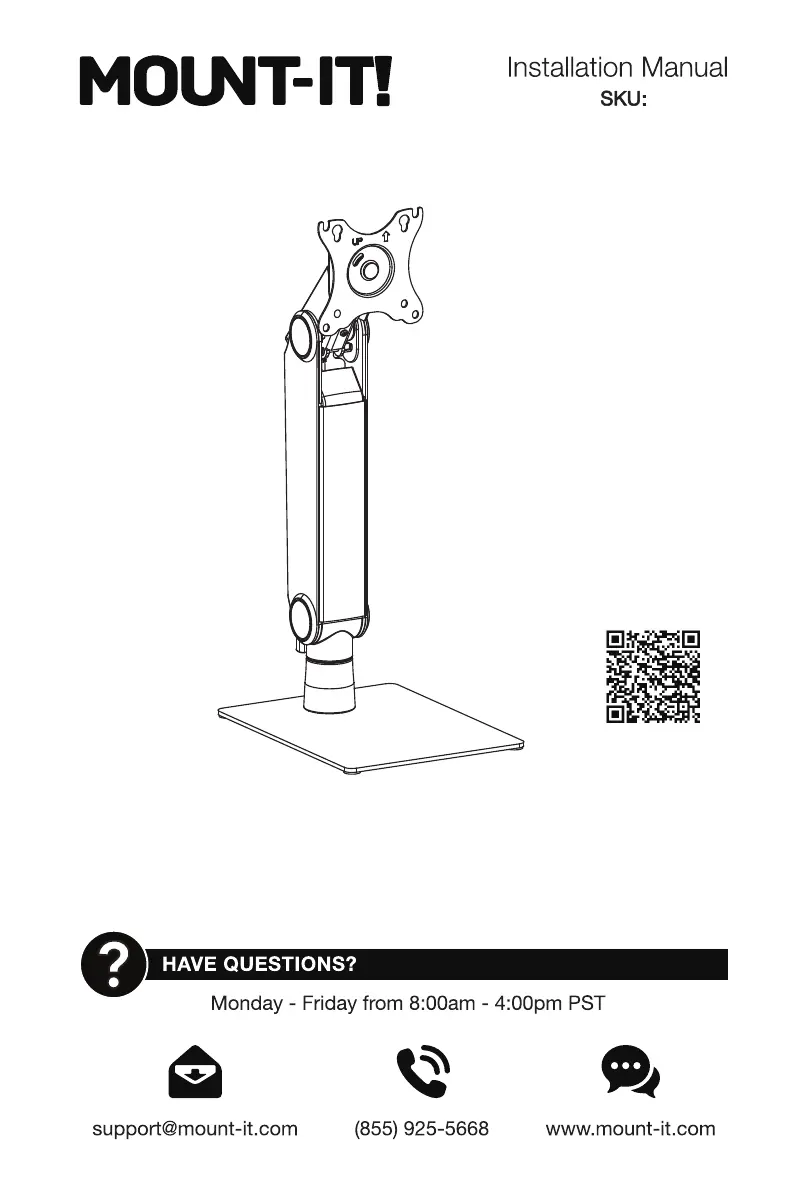

FREESTANDING MONITOR ARM
WITH HEIGHT ADJUSTMENT
MI-2757
Scan this QR code for
product information, videos,
and assembly assistance.
Thank you for choosing Mount-It
2
3
Mount-It!
Mount-It!
Mount and Accessories
Mounting Hardware
Stand Arm
Stand Base
Bolt Hex Wrench Hex Wrench
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
CHOKING HAZARD. Package includes small parts.
Not for children under 3 years. Adult supervision is required.
Check carefully to make sure there are no missing or defective parts. Some hardware provided may not
be used. Use the correct mounting hardware suitable for your installation.
DIMENSIONS & WEIGHT CAPACITY
Rated weight capacity is 17.6lbs.
Caution:
Ensure all mounting surfaces are
capable of holding the weight of
your mount.
DO NOT EXCEED MAXIMUM
LISTED WEIGHT CAPACITY.
SERIOUS INJURY OR PROPERTY
DAMAGE MAY OCCUR!
4.6”
4.5”
3.9”
min12.4”~max18.3”
11.2”
0.2”
3”
3.9”
3”
min5.5”~max7.2”
7.9”
10.2”
5
4
• Connect the Stand Base (#B) to the bottom of the Stand Arm (#A) using the Bolts (#C) and tighten until
secure using the 4mm Hex Wrench (#D)
Connect the Base and Arm
Step 1
• Hang the monitor onto the top of the VESA Plate as shown here, then secure the monitor to the bottom
2 bolt holes and tighten all bolts until secure.
• Monitor cables can be routed through the cable clip on the back of the arm.
Attach the Monitor
Step 3
• Select the appropriate size mounting bolt (#M-A or M-B) and washer (#M-C) for your monitors mounting
holes and verify the length of the VESA bolt is not too long. If you are unsure of the correct bolt size for
your display refer to your monitor user manual or contact the monitor manufacturer for sizing information.
• Partially install the top 2 VESA bolts, leaving a gap of approximately 0.1” between the monitor and the
back of the bolt head.
Attach the Monitor
Step 2
