AUDI-09 EXT MMi
NTV-KIT187
Overview
The AUDI-09 EXT MMi Kit allows the user to add up to 3 video inputs and a backup camera
input to the factory media screen in select Audi vehicles with the external MMi media system
(MMi controls on console, not the radio face) Audio integraon requires that the vehicle have .
a factory audio input.
Kit Contents
BHM
02/14/14
NTV-DOC165
rB2
Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for :
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
2 | P a g e
Interface Connectors
Dip Switch Sengs* Congure prior to installaon
Dip SW:
1
2
3
4
5
6
7
8
UP
Enables
RGB
Enables
V1
Enables
V2
Enables
V3
6.5”
Monitor
Year
2011+
Factory or no
Rev-Cam
N.C.
DOWN
Skips
RGB
Skips
V1
Skips
V2
Skips
V3
7”
Monitor
2010 and
down
Aermarket
R-CAM
N.C.
AV IN/OUT
Power/CAN
Dip Switches
Status LEDs
*Note: If the dip switches are not congured prior to
installaon you must remove power to the unit prior to
making adjustments to the dip switches.
LCD IN/OUT ( -Sub
Board Cable)
Touch
OUT
Camera power
Sub-Board Cable (from main
LCD-IN (from OEM cable)
LCD OUT (To monitor)
BHM
02/14/14
NTV-DOC165
rB2
Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for :
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
3 | P a g e

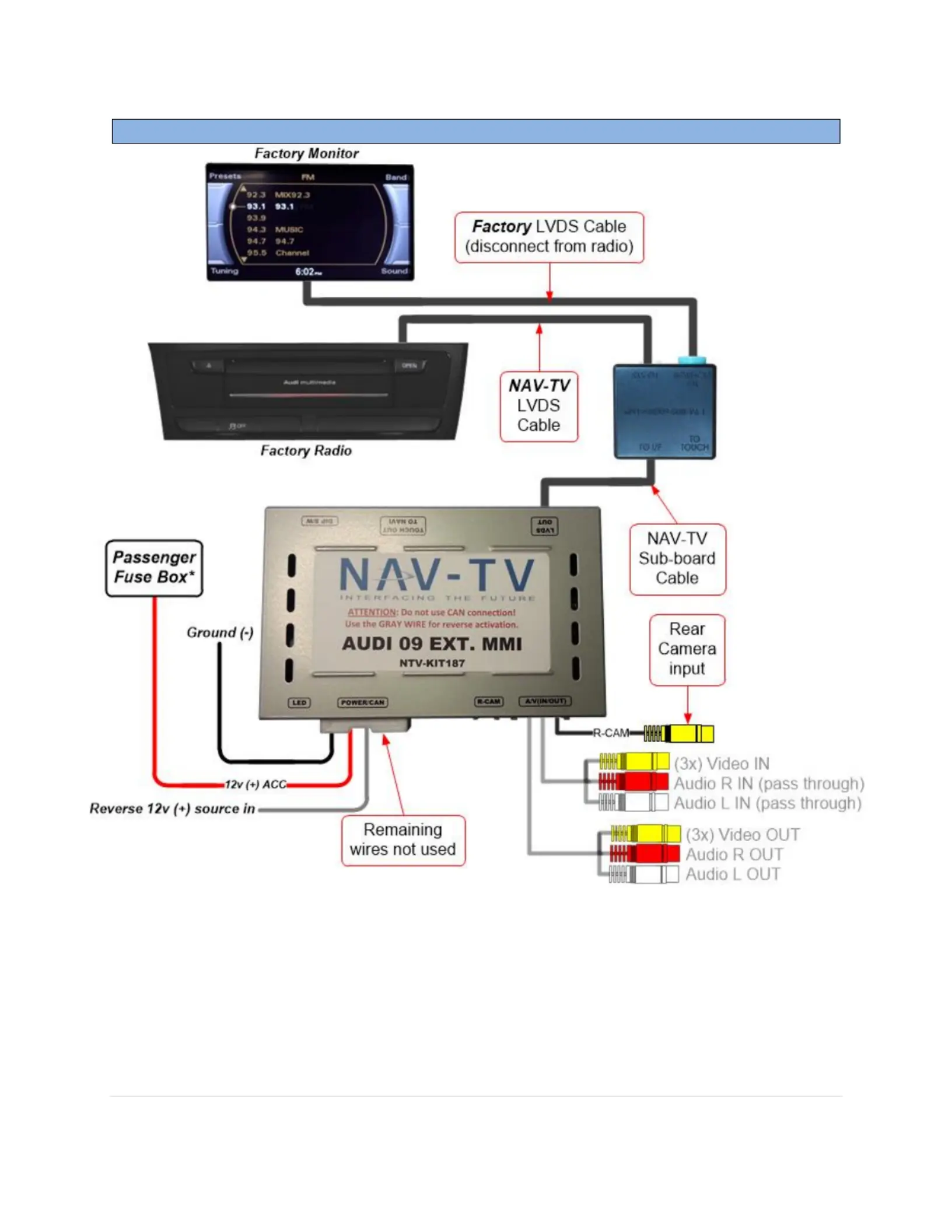

Quick Connecon Guide
Video cable Installaon happens behind the radio (MMi), no need to remove screen
*Accessory can be found at the passenger fuse box, typically or black/white black/blue
Drop the glove box for easiest install
Navigaon equipped cars: | Non-navigaon equipped cars: Gray LVDS Pink LVDS
Use reverse light to trigger relay for reverse to Gray wire, otherwise intermient
reverse acvaon may result!
