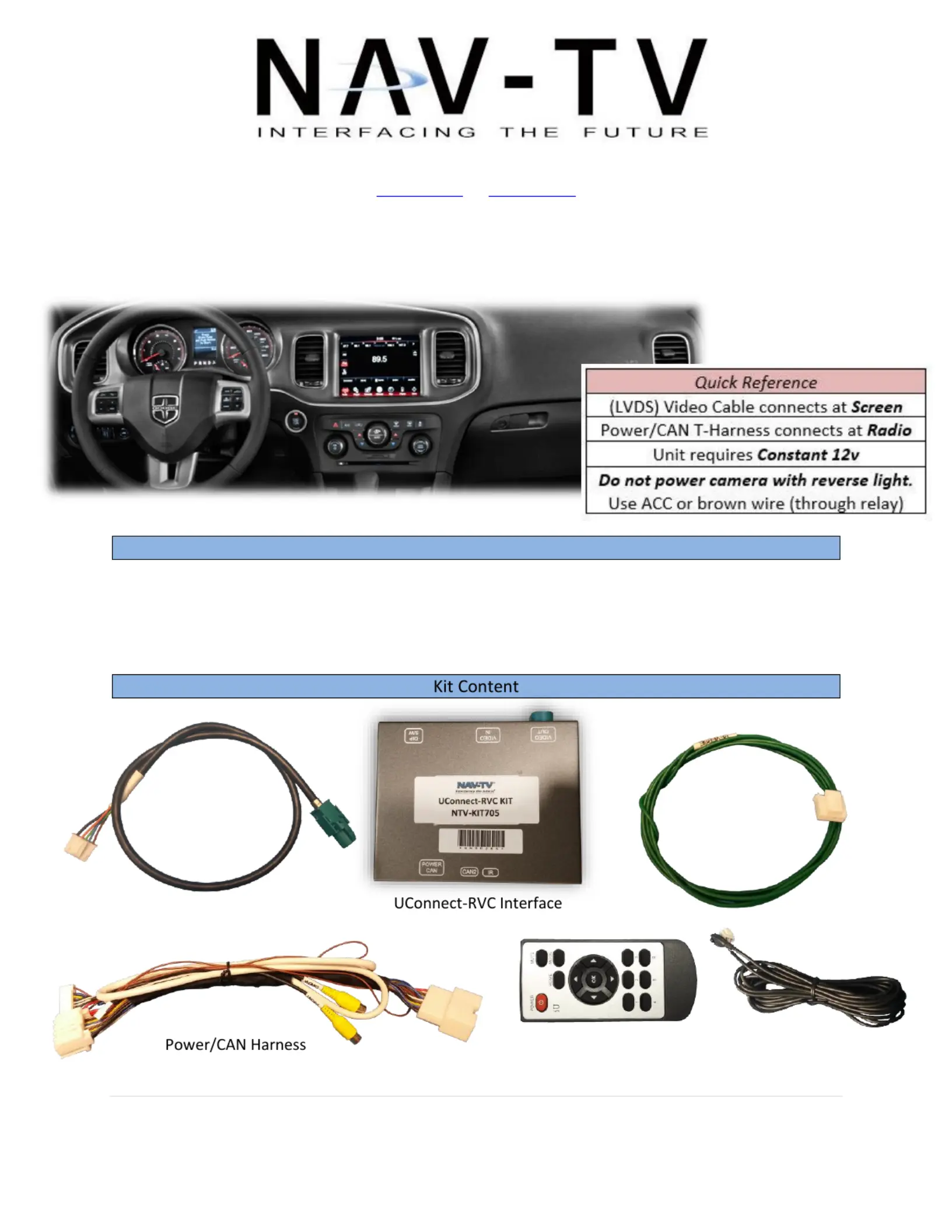

UConnect- RVC
NTV-KIT705
Overview
The UConnect-RVC interfaces a backup camera (with dynamic guidelines) and one optional
front camera input to select Chrysler or Dodge vehicles equipped with the UConnect 8.4” or
4.3” infotainment screens (RB5, RE2: 8.4”, REB, RHA: 4.3”) .
Kit Content
Power/CAN Harness
B-Type
LVDS- IN
Cable
UConnect-RVC Interface
OSD Menu
Remote
IR-Eye
Cable
Optional
Reverse
Trigger
Input
BHM
10 17/ /18
NTV-DOC248
Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for :
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
2 | P a g e

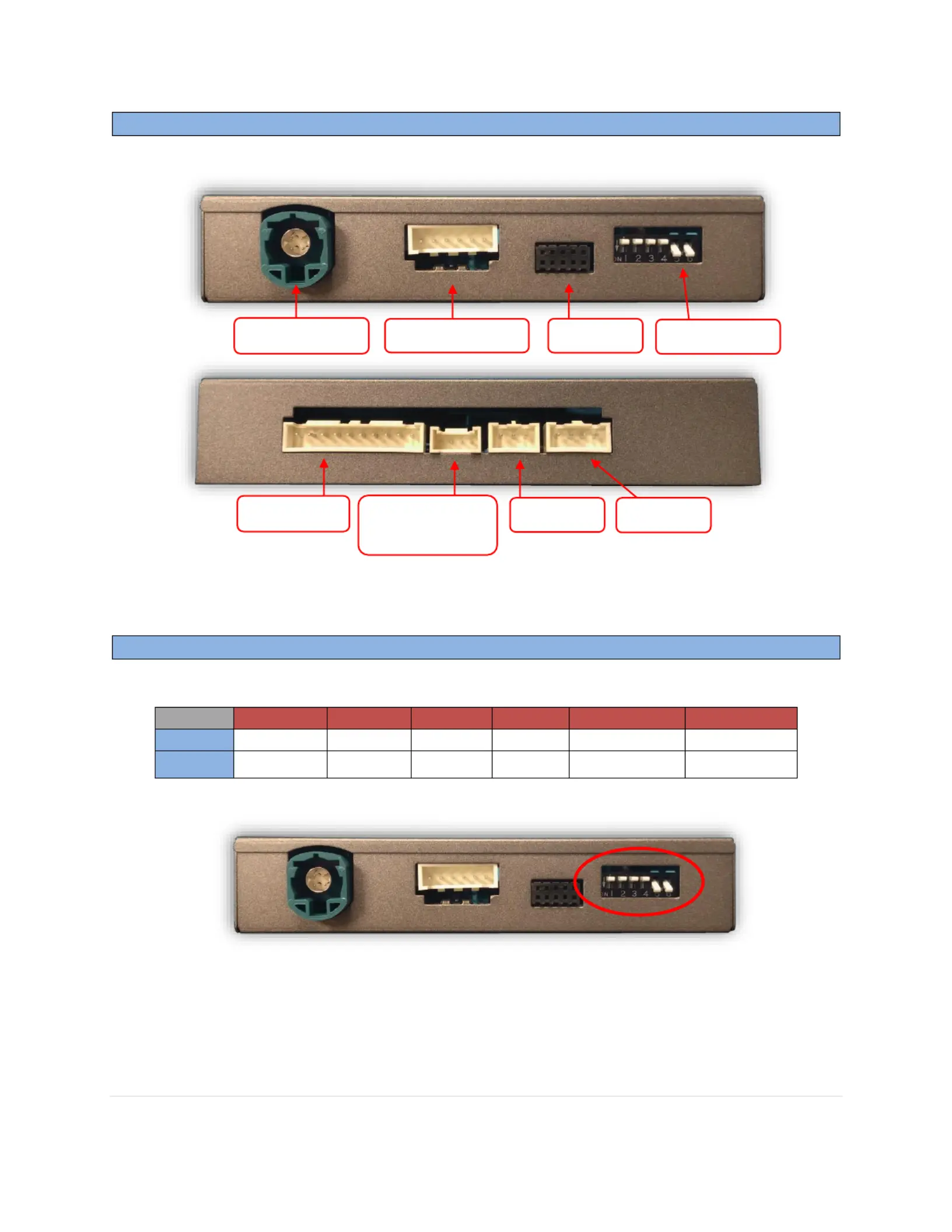

Interface Connectors
Dip Switch Settings
Dip SW:
DYN LINES
2
3
4
5
6
UP
NORMAL
Keep UP
Keep UP
Keep UP
8.4” Screen
Keep DOWN
DOWN
REVERSED
Keep UP
Keep UP
Keep UP
4.3” Screen
Keep DOWN
Note: remove power to the unit prior to making
adjustments to the dip switches.
Not Used
LVDS Video IN
Not Used
LVDS Video OUT
Power/CAN
IR Input
Reverse Trigger
INPUT
Dip Switches
BHM
10 17/ /18
NTV-DOC248
Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for :
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
3 | P a g e

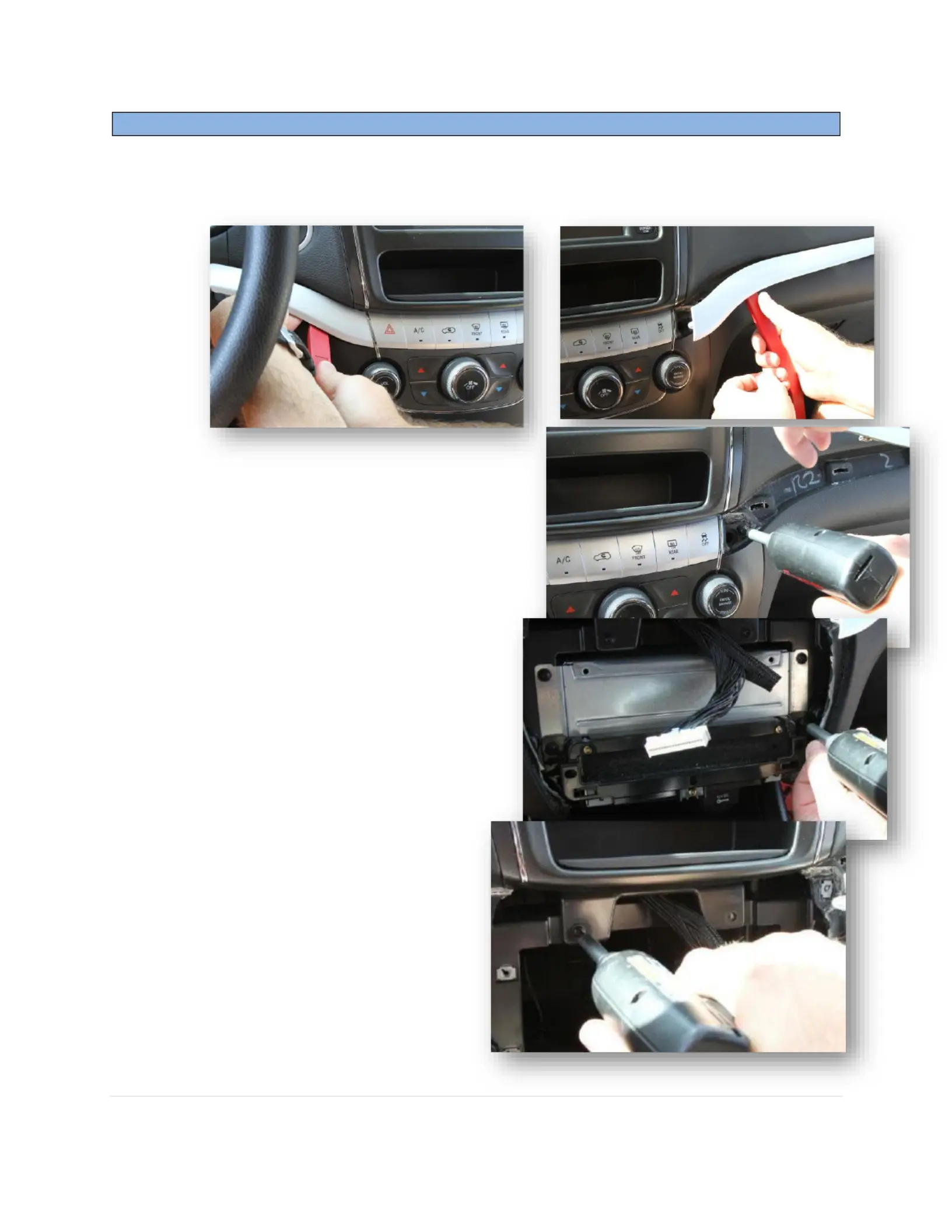

Dash Disassembly (Journey )
1. Use a plastic pry tool to pry up the plastic trim on the passenger side. driver’s side and
Pry up just enough to gain access to the T-20 TORX.
2. Remove (2x) Torx 20 screws that secure the
HVAC control panel. Remove the HVAC
control panel, disconnect all harnesses and
set it to the side.
3. Remove (4x) Torx 20 screws which secure
the radio stack into the sub-dash. Remove
radio, disconnect all harnesses and set it
aside.
4. Remove (2x) Torx 20 screws which
secure the infotainment screen bezel
to the dashboard. Remove all
connectors and set the screen aside.
