CREP5930BK
MANUAL (p. 2)
VGA over UTP extender
MODE D’EMPLOI (p. 8)
Extension VGA sur UTP
MANUALE (p. 15)
Estensione VGA con cavo UTP
BRUKSANVISNING (s. 28)
VGA-kontakt UTP
MANUAL DE UTILIZARE (p. 34)
VGA prin extender UTP
BRUGERVEJLEDNING (p. 40)
VGA over UTP forlænger
HASZNÁLATI ÚTMUTATÓ (o. 22.)
UTP kábeles VGA hosszabbító
KÄYTTÖOHJE (s. 25)
VGA / UTP -laajennin
GEBRUIKSAANWIJZING (p. 12)
VGA over UTP-extender
ANLEITUNG (s. 5)
VGA-über-UTP-Erweiterung
MANUAL DE USO (p. 18)
Extensor VGA sobre UTP
NÁVOD K POUŽITÍ (s. 31)
Extender VGA přes UTP
ΕΓΧΕΙΡΙΔΙΟ XPHΣHΣ (σελ. 37)
VGA extender μέσω UTP
VEILEDNING (p. 43)
VGA over UTP-forlenger
CREP5930BK_MAN_COMP_0519.indd 1 7-5-2019 08:17:05
2
ENGLISH
Introduction
This VGA UTP extender 1X 1 splitter with audio is an ideal device for local displaying and remote
viewing. It combines split function and extension function. It distributes the input of the VGA signal
and audio signal into the local and remote outputs simultaneously. Receiver by Cat5x 1 works with the
sender as a full functional module by receiving the distributed signal from the sender and transmitting
to display. Only by the most inexpensive UTP cable with cross stand inside, the full functional module
extend the VGA display maximum up to 300 metres.
Features
This device has many features that enable it to perform in a superior manner. Among these features
you will nd:
• Extend VGA video and stereo audio signal to maximum 300 meters over one UTP cable with cross
stand inside.
• Adjusting GAIN and PEAK to adapt for the different length of UTP cable.
GAIN: Brightness adjustment.
PEAK: Skew adjustment.
• Supports a maximum resolution of 1920x1200.
• Dual output at local unit: 1x VGA output for local site, plus 1x UTP output for remote site.
Specications
Input /Output connector
Input connector VGA (Female 15pin), stereo audio
Output connector VGA (Female 15pin),
stereo audio, 1x RJ45
Operating Frequency
Vertical frequency range 60/75/85Hz
Resolutions (pc)
640X480
800X600
1024X768
1280X720
1280X768
1280X960
1280X1024
1600X900
1600X1200
1920X1080
1920X1200
Mechanical
Size of VGA UTP extender 1X 1 splitter 100×65×25.5 mm
Weight of VGA UTP extender 1X 1 splitter 208 g
Size of receiver (L-W-H) 81.5×43×23 mm
Weight of receiver (Net) 108 g
CREP5930BK_MAN_COMP_0519.indd 2 7-5-2019 08:17:05
3
Environmental
Operating temperature 0 ºC to + 70 ºC
Operating humidity 10% to 85 % RH (no condensation)
Storage temperature -10 ºC to +80 ºC
Storage humidity 5% to 90 % RH (no condensation)
Power requirement
Power supply for VGA UTP extender 1X 1 splitter 5 V @ 2 A, max 5 W
Power supply for receiver 5 V @ 2 A, max 5 W
Regulatory approvals
Converter unit FCC, CE, UL
Power supply UL, CE, FCC
Note: specications are subject to change without notice.
Package Contents
Before attempting to use this unit, please check the packaging and make sure the following items are
contained in the shipping carton:
• VGA UTP extender 1X 1 splitter
• User’s manual
• One receiver
• Two pieces of 5 V @ 2 A DC power supply

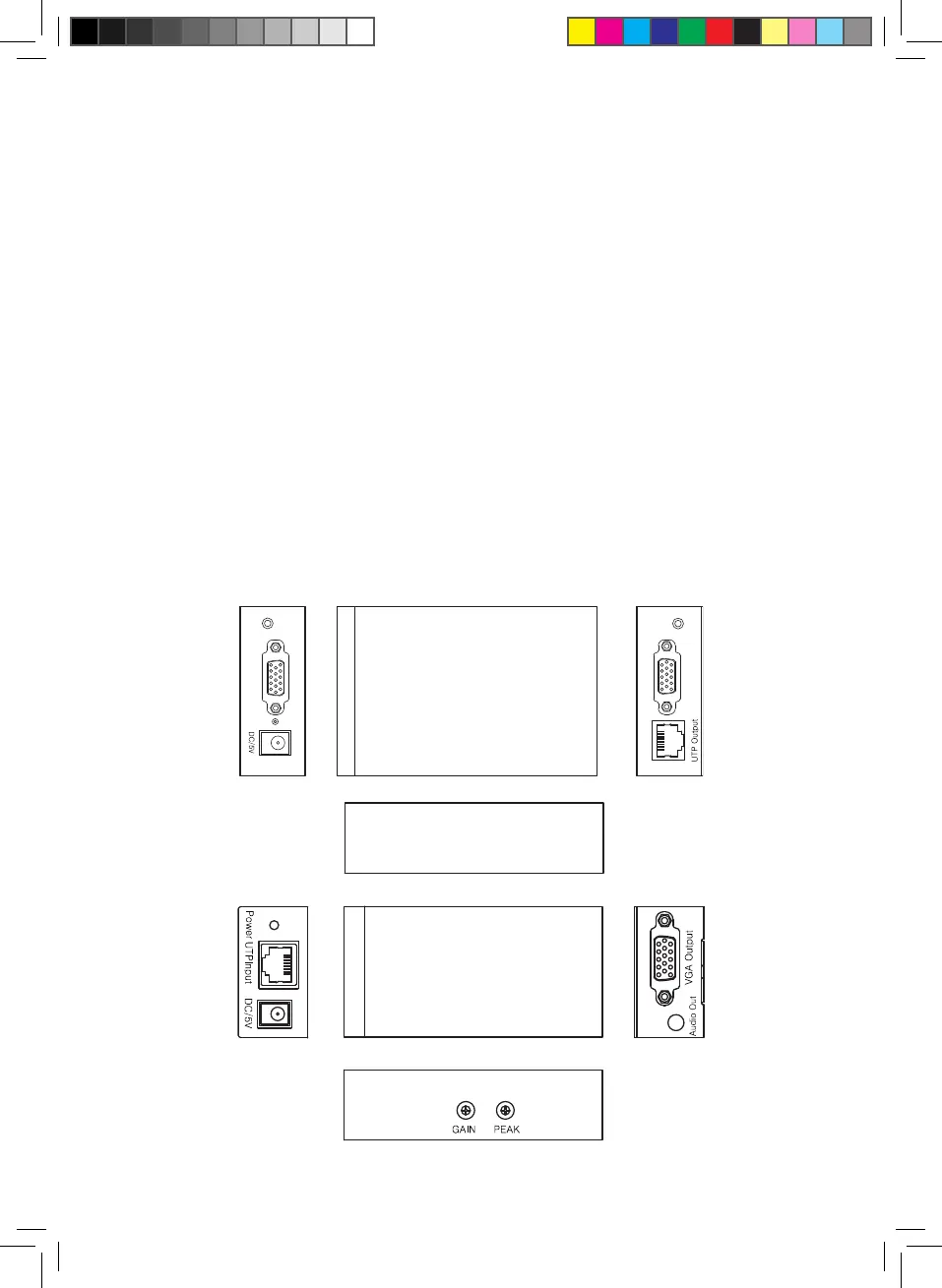

Panel descriptions
Sender
VGA Output
1
6
11
5
10
15
15
10
5
11
61
VGA Input
VGA UTP Extender
1X1 With Audio
Sender
Receiver
VGA UTP Extender
With Audio
Receiver
