Basic Manual

Hookup

Step1: Choose your Speaker Layout .......................................3

Step2: Connect the Speakers ..................................................9

Step3: Connect the TV ..........................................................11

Step4: Connect the AV Components .....................................13

Step5: Connect Other Cables ................................................17

Setup

Step6: Power On & Initial Setup ............................................18

HDMI Setup ...........................................................................19

Playback

Basic Playback ......................................................................20

Network Functions .................................................................21

Others ....................................................................................23

Part Names

Front Panel ............................................................................25

Rear Panel ............................................................................26

Remote Controller .................................................................27

Display ...................................................................................27

The Basic Manual includes information needed when starting up and

also instructions for frequently used operations. The Advanced Manual

has more detailed information and advanced settings.

AV RECEIVER

TX-NR555

> Before start > Hookup > Setup > Playback > Part Names > Advanced Manual

Troubleshooting | Appendix

> Before start > Hookup > Setup > Playback > Part Names > Advanced Manual

Troubleshooting | Appendix

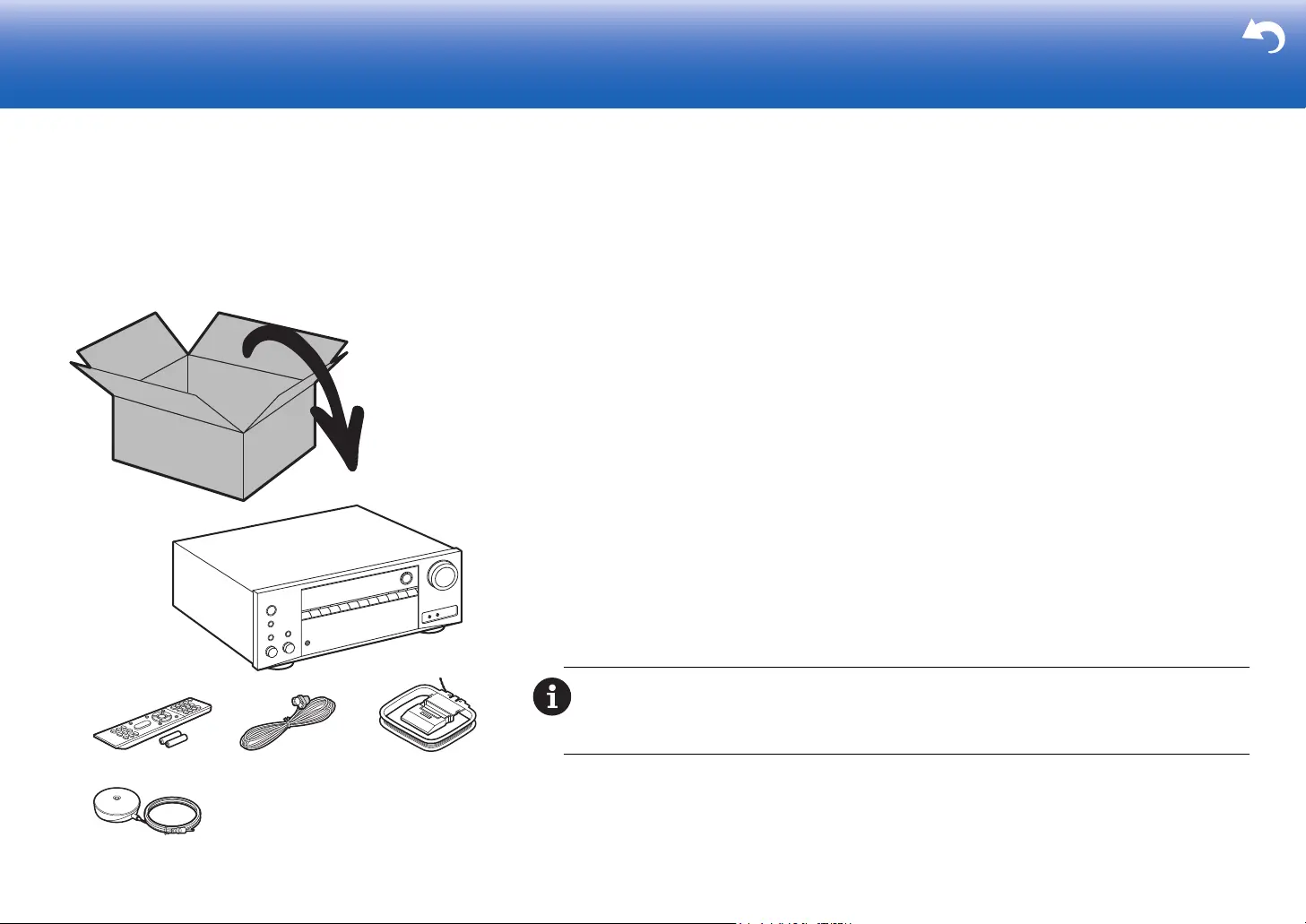

What's in the box

1. Main unit 2. Remote controller (RC-911R)

×1, Batteries (AAA/R03) ×2

3. Indoor FM antenna ×1 4. AM loop antenna ×1 5. Speaker setup microphone ×1

Main features

This unit is connected between your TV and your AV components. To play, select the source with the input

selector. You can connect 7.1ch of speakers to this unit, with 7ch at 140 W (6 ohms, 1 kHz, 0.9%THD) (North

American models) / 130 W (6 ohms, 1 kHz, 1%THD) (European, Australian and Asian models) per channel plus a

powered subwoofer pre out jack.

$ Supports playback in Dolby Atmos format which provides 360e sound placement

$ The HDMI jack supports 4K video input and output. Jacks IN1 to 3 and OUT support HDCP2.2

$ HDMI CEC functionality: Control features such as linking input switching with the input selector and players

conforming to the CEC standard, switching audio output and volume using the remote controller of a CEC-

compliant TV, and automatically switching this unit to standby when the TV is turned off

$ HDMI Standby Through: Video and audio signals from AV components can be transmitted to the TV even if this

unit is in standby

$ ARC: Connection with an ARC-compatible TV is complete with one HDMI cable

$ Easy Initial Setup using onscreen guidance and On-Screen Display (OSD) showing operations on the TV

$ Internet radio and Airplay via wired LAN or Wi-Fi (wireless LAN) and network features such as Music Server

that enables PC music file playback, USB playback, plus other playback features such as AM/FM radio and

BLUETOOTH

play

$ Playback formats supported by Music Server and USB include WAV, FLAC and DSD high-res source

$ Multi-zone Connection which allows you to play in the main room and listen in a separate room (ZONE 2)

$ We plan to provide support for the DTS:X audio format through a firmware update for this unit. Refer to our

homepage for more information.

CAUTION: Connect speakers with 6 Ω to 16 Ω impedance. The power cord must be connected only after

all other cable connections are completed.

0 We will not accept responsibility for damage arising from the connection of equipment manufactured by

other companies.

Produktspecifikationer

Varumärke:	Onkyo
Kategori:	mottagare
Modell:	TX-NR555
Vikt:	12500 g
Bredd:	435 mm
Djup:	378 mm
Höjd:	173.5 mm
Förpackningens vikt:	12.5 kg
Wi-Fi:	Ja
Bluetooth-version:	2.1+EDR
Bluetooth-profiler:	A2DP, AVRCP
Frekvensband:	AM, FM
Hörlursutgångar:	1
Ljudutgångskanaler:	7.2 kanaler
Internetradio:	Ja
FM-antenn:	Ja
Total harmonisk distorsion (THD):	0.08 %
Antal HDMI-utgångar:	1
Fjärrkontroll ingår:	Ja
AirPlay:	Ja
Pre-out anslutning:	Ja
Produktens färg:	Svart
Antal USB-portar:	1
bruksanvisning:	Ja
Hörlursanslutning:	3,5 mm
Vikt inkl. förpackning:	12500 g
Inbyggd kortläsare:	Nej
Antal LAN (RJ-45) anslutningar:	1
Strömförbrukning (vanlig):	460 W
AC-inspänning:	120 V
3D kompatibilitet:	Ja
Frekvensområde:	20 - 20000 hz
Anslutningsteknologi:	Kabel & Trådlös
Nätverksansluten (Ethernet):	Ja
Effekt per kanal (20-20KHz @ 8 ohm):	140 W
Mottagartyp:	Surround
Optisk enhet ingår:	Nej
Växelström Frekvens:	60 hz
Batterier medföljer:	Ja
Strömförbrukning i vänteläge:	0.1 W
Bluetooth:	Ja
Förpackningsstorlek (B x D x H):	570 x 468 x 288 mm
Ingående kompositvideo:	2
Komponentvideo in (YPbPr / YCbCr):	2
Ljudingång (vänster och höger):	8
Inbyggd ljuddekoder:	DTS-HD Master Audio, Dolby Digital, Dolby TrueHD
Ljudreturkanal (ARC):	Ja
Antalet förinställda stationer:	40
Internetradio tjänster som stöds:	Pandora, Spotify, TuneIn
Digital audio optisk, ingående:	2
Digital koaxialingång för ljud:	1
FM band:	87.5 - 107.9 MHz
AM band:	530 - 1710 kHz
HDMI-in:	6
Dynamisk effekt per kanal (8 ohm):	85 W
Dynamisk effekt per kanal (4 Ohm):	125 W
x.v. färgstöd:	Ja
Stöd för Deep Color:	Ja
Synkronisering av ljud och läppar:	Ja
Effekt per kanal (1KHz @ 6 ohm):	140 W
AM-antenn:	Ja
Dynamisk effekt per kanal (3 ohm):	160 W
