INSTRUCTIONS FOR USE
Pro-Ject Amp Box S2
© Pro-Ject Audio Systems · Pro-Ject Amp Box S2 · Revision 9.03. 201 20
2
Dear music lover,
thank you for purchasing a P -Ject Audio amplifier. ro
In order to achieve maximum performance and reliability you should study these instructions for use carefully.
Warning of a hazard for the user, the unit or possible misuse.
Important notice.
Safety instructions
AC outlet voltages vary from country to country. Before connecting to the mains, make sure that the
voltage in your area meets the voltage requirements printed on the power supply. The power cord is
used to disconnect the unit from the mains. Make sure that the power cord is easily accessible at all times.
Never handle the device, the power cord/power supply while your hands are wet or damp.
Avoid letting liquids enter the device or the power supply. Never place any item containing liquid, such
as a flower vase on or near the device. Never spill any liquid on the device or the power supply. Never
place any naked flame sources, such as lighted candles on or near the device. The product shall not be used
in damp or wet locations, next to a bathtub, sink, swimming pool or any other similar conditions.
Connectors
Make all connections whilst the amplifier is disconnected from the power supply.
Take care to connect the left and right channels correctly. The right channel is usually marked red, the
left channel black or white.
The red speaker terminals carry the positive signal (+), the black speaker terminals the negative
signal ( ). Make sure the polarity of the connection is correct at each end of the cables. –
Only connect one loudspeaker with an impedance not less than 4 ohms per channel.
Never use any other power supply than the one supplied with the unit.

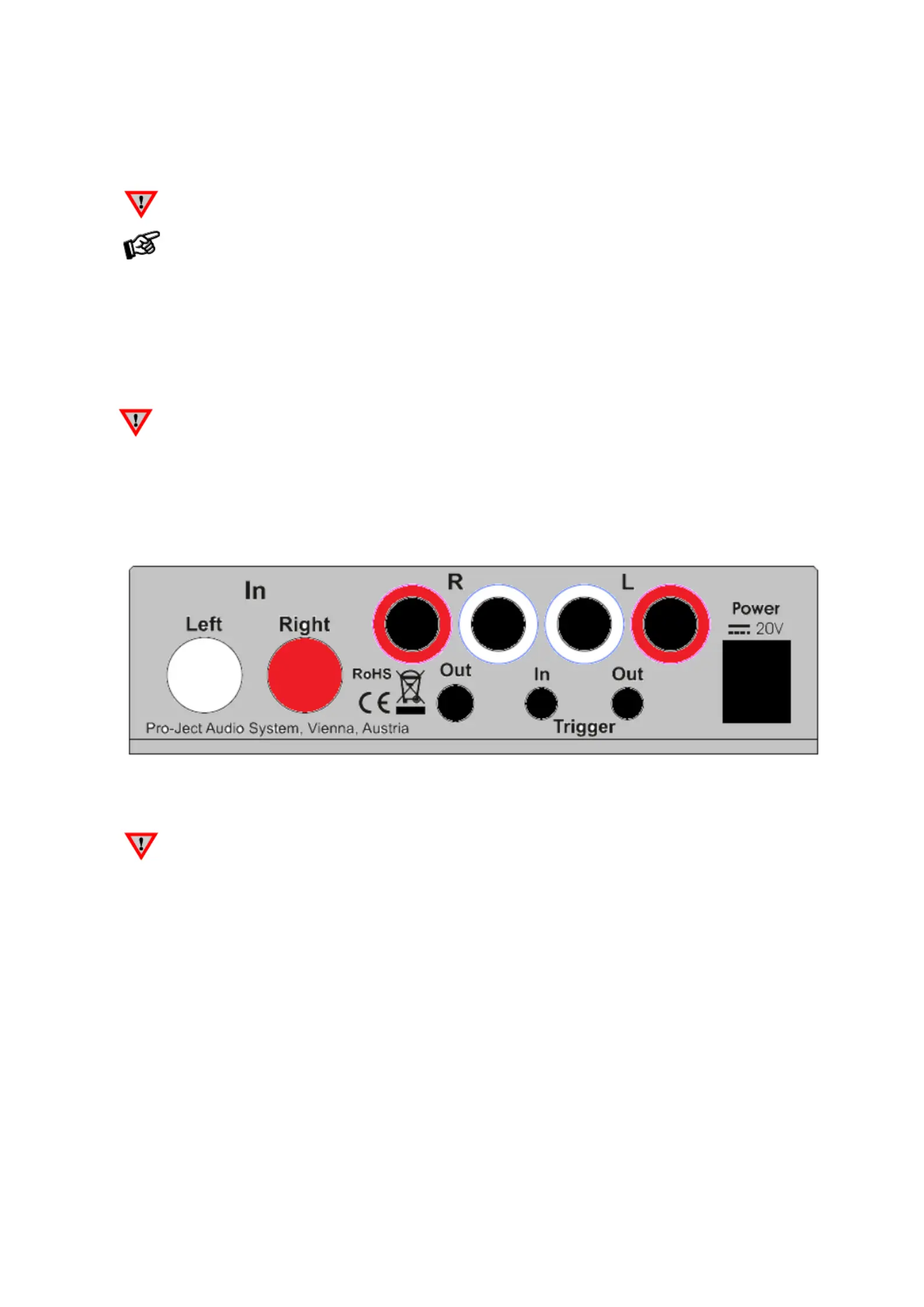

Connection to the preamplifier
The Input sockets marked Left
Left
Left
LeftLeft
R
R
R
R Righ
igh
igh
ighight
t
t
tt/ are for connecting the cables from your pre-amp or AV processor. Signal
can be relayed further via Jack socket 3.5mm marked
O
O
O
OOut
ut
ut
utut
Connection to the speakers
The output terminals accept loudspeaker cables terminated with 4mm Banana plugs, spades connectors or
naked wire.
©Pro-Ject Audio Systems · Pro-Ject Amp Box S · Revision 9.03.201 20
3
Mains power connection
Connect the low voltage plug from the power supply to the Powe
Powe
Powe
PowePower
r
r
r r DC
DC
DC
DCDC
2
2
2
220V
0V
0V
0V0V socket of the amplifier before
connecting the power supply to the mains.
Remote power on
The amplifier can be switched on & off via a special connection from the Pro-Ject Pre Box via the 2,5mm
socket marked Trigg
Trigg
Trigg
TriggTrigger
er
er
erer I
I
I
I In
n
n
nn.
Cables are available as accessories. The remote power-on signal can be relayed to further units via the Tr
Tr
Tr
TrTrig
ig
ig
igigge
ge
ge
geger
r
r
r r
Out
Out
Out
OutOut socket.
To switch on from standby or to standby
The push button on the front panel of the unit alternately turns the power on or returns it to standby mode. The
blue LED above the stand-by push button shows that the unit is switched on.
Technical specifications Pro-Ject Amp Box S2
Power output: 2 x 23W/35W at 8 ohms/4 ohms (both channels driven)
Frequency response: 5Hz - 20kHz (-0,2 - 2 dB, 0, dB)
Channel separation: >- dB at 10kHz 55
Noise floor: >-100dB (A weighted)
THD : <0, % at 10W +N 18
Gain: 31dB
Pre in: 1 pair RCA/phono sockets
Bypass Output: Jack socket 3,5mm stereo
Input sensitivity: mV 330
Input impedance: kohms 20
Speaker connectors: 4mm banana plugs, spades connectors or naked wire
Trigger: 12V DC switching voltage, 2-pole co-axial 2,5mm -axial jack co
Outboard power supply: 20V/3A DC (peak 7A DC), suitable for your country's mains supply
Power consumption: 3A DC, <1W in standby
Dimensions W x H x D (D with sockets): 103 x 37 x 1 )mm 18 (136
Weight: without power supply 385g
Service
Should you encounter a problem which you are not able to alleviate or identify, please contact your dealer for
further advice. Only when the problem cannot be resolved there should the unit be sent to the responsible
distributor in your country.
Warranty
The manufacturer accepts no responsibility for damage caused by not adhering to these instructions
for use. Modification or change to any part of the product by unauthorized persons release the
manufacturer from any liability over and above the lawful rights of the customer.
Copyright
P -Ject is a Registered Trademark of H. Lichtenegger. ro
This guide was produced by Pro-Ject Audio Systems
Copyright
©
7. All rights reserved.201
The information was correct at the time of going to
press. The manufacturer reserves the right to make
changes to the technical specification without prior
notice as deemed necessary to uphold the ongoing
process of technical development.
