Introduction

The SQ610RF Quantum is a ZigBee temperature controller for wireless control of iT600 series devices, such as

the KL08RF wiring centre, mini TRV head, RX10RF boiler control module.

In order to control SQ610RF over the Internet or via the SALUS Smart Home mobile app (ONLINE mode),

it must be installed together with the UGE600 Internet gateway (sold separately). From the application level,

it is possible to pair SQ610RF with other system elements, e.g. Smart Plug SPE600, Smart Relay SR600 or

window/door sensor OS600/SW600.

SQ610RF can be used locally without an Internet connection (OFFLINE mode), however, it’s communication

with other devices must be done using the CO10RF coordinator (sold separately).

Full manual in PDF format is available at www.salus-controls.eu site.

Use in accordance to national and EU regulations. Use the device as intended, keeping it in dry condition. Product for

indoor use only. Installation must be carried out by a qualied person in accordance to national and EU regulations.

Disconnect your equipment before cleaning it with a dry cloth.

Product Compliance

Safety Information

This product complies with the essential requirements and other relevant provisions of Directives 2014/30/ EU,

2014/35/EU, 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the

following internet address: www.saluslegal.com.

Package Content:

1) SQ610RF Quantum Thermostat

2) Wall mounting plate

3) Self-adhesive mounting tape

4) Mounting screws

5) Manual instruction

Français Deutsch

Nederlands

English

Before you start:

Charging to full battery level may take up to

24h maximum.

New SQ610RF Quantum Thermostat is partially

charged, however, we recommend you to fully

charge the battery before use.

Connect charger to micro-USB Port which is at

the bottom of SQ610RF Quantum Thermostat to

charge the device.

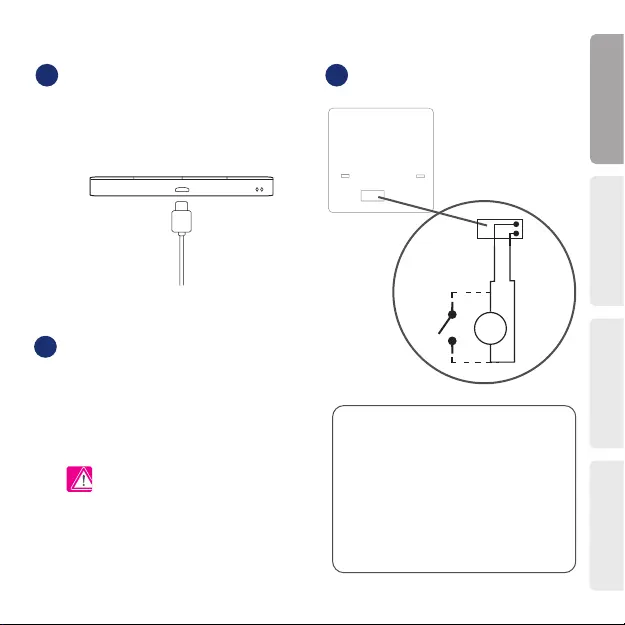

Wiring diagram (S1, S2 Input)

Symbols explanation:

S – volt-free contact

T – temperature sensor

S1,S2 Terminals:

- air or oor temperature sensor

- external volt-free contact to connect any

ON/OFF switch or occupancy sensor (Hotel card)

Mounting: to mount thermostat you can use

included accesories (mounting screws or

self-adhesive tape). Remove back cover

to mount the plate to the wall. After this just

attach thermostat to the plate (it has built-in

magnet).

Please note:

The ideal position to thermostat mounting is about

1,5m under oor level far from heating or cooling

sources. Thermostat can’t be exposed to sunlight

or any extreme conditions like for example draft.

1 2
