A15RF -- In-Line Interference Attenuator
General Description
The Shure Model A15RF In-Line RF Attenuator
provides all types of balanced audio systems
with greatly improved immunity to radio frequen
cy interference (RFI). It is especially useful in ap
plications where balanced audio devices near
strong RFI sources, such as AM radio stations,
are connected by long cable runs.
The A15RF will not degrade system sound quality
or alter system frequency response. In cases
where interference is present but not audible, the
A15RF can improve perceived sound quality by
removing low level interference components
from the audio signal path. It passes phantom
power and is transparent to differential audio sig
nals ranging from DC to 2 GHz.
The A15RF is a passive device and will not dam
age other equipment. It does not present any ad
ditional load to the signal sources, and can be
used with phantompowered miclevel or linelev
el devices.
Shure Incorporated
2/3
Installation
For best results, connect an A15RF between the cable and the affected device. If interference remains audible, in
stall the A15RF at the other end of the cable, or place one A15RF at each end of the cable. In extremely severe
cases, connect two or more A15R attenuators in series. If the problem persists, replace the cable and check for
faulty or unbalanced connections.
Specifications
Attenuation
Common Mode Attenuation 50 In/Out Ω
Differential Mode Attenuation 50 In/Out Ω
Maximum Operating DC Current Rating
20 maximum mA
Impedance
0.4 Ω
Operating Temperature Range
-40° to +85° C (-40° to 185° F)
Housing
Full magnetic shield; steel with black chrome plating
Dimensions
19 (.75 in.) diameter; 69.85 (2.75 in.) long mm mm
Shure Incorporated
3/3

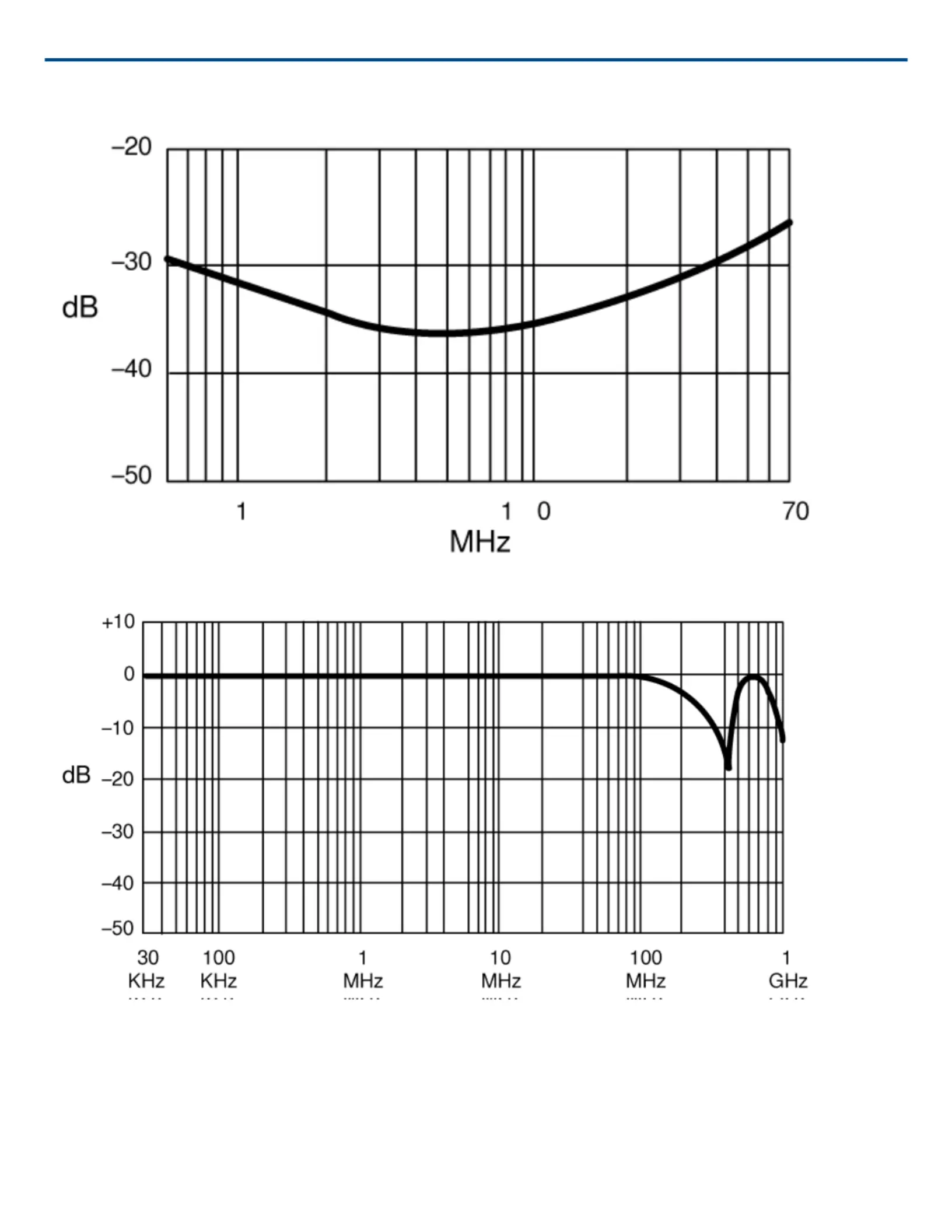

RFI Attenuation
Common Mode Attenuation
Differential Mode Attenuation
