A96F -- Line Matching Transformer
General Description
This transformer connects microphones with an
XLR-type connector to the 3.5 mm (1/8 in.) inputs
found on camcorders and other recording de
vices. It increases the signal level from the micro
phone, provides a balanced input, and prevents
distortion due to the d.c. bias typically found in
camcorder microphone inputs.
Impedance Selection
The A96F can be modified for microphones rated at 150 . This modification is only necessary if the output level Ω
from the A96F is insufficient for your recording device. Use the following steps:
1. Access the wiring in the XLR plug element of the A96F by loosening the screw and sliding the plug from the
case.
2. UnsoldertheREDleadfrompin2.InsulatethebarewireattheendoftheleadwiththeinsulatorfromtheYEL
LOW lead.
3. Solder the YELLOW lead to pin 2.
4. Rotate the plug element three turns to twist the leads and replace the element in the housing. Replace the
screw.
Troubleshooting
1. Unscrew the housing from the miniature plug on the A96F to expose the wires inside the connector.
2. Use wire clippers to cut and remove the wire between the tip and ring leads (see figure below). Make sure to
remove the wire completely from between the leads so that there is no contact between the tip and ring.
3. Reassemble the plug.
Shure Incorporated
2/3
If the microphone still does not work, contact Shure Application Engineering at 1-800-516-2525. Please have the
camcorder user's guide available.

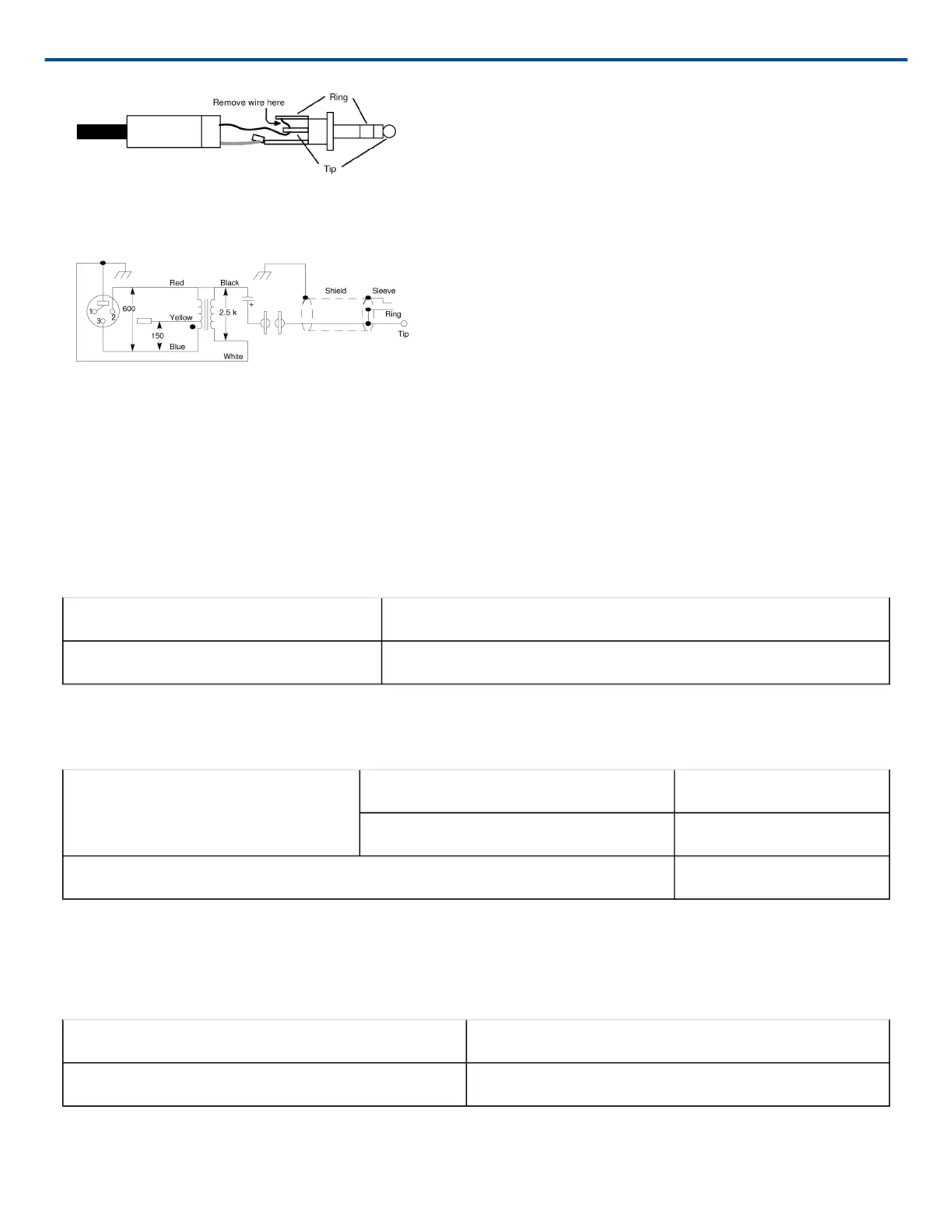

Wiring Diagram
Frequency Response
20 to 20,000 ± 2Hz dB
Impedance
Low Impedance 600 (supplied) or 150 Ω Ω
Medium impedance 2,500 Ω
DC Resistance
Low Impedance 600 winding 56 Ω Ω
150 winding 28 Ω Ω
Medium impedance Open circuit
Voltage Ratio
Low Impedance to Medium impedance
600 +6Ω dB
150 +12Ω dB
Shure Incorporated
3/3
Maximum Input Level
Housing
Full magnetic shield, steel with gray enamel finish
Dimensions
19 (3/4 in.) diameter; 89 (3.5 in.) longmm mm
Produktspecifikationer
| Varumärke: | Shure |
| Kategori: | ej kategoriserat |
| Modell: | A96F |
| Produkttyp: | Mikrofonadapter |
| XLR ut: | 1 |
| 3,5 mm in: | Ja |
| Produktens färg: | Svart, silver |
| Antal: | 1 |
