Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: August 12, 2019

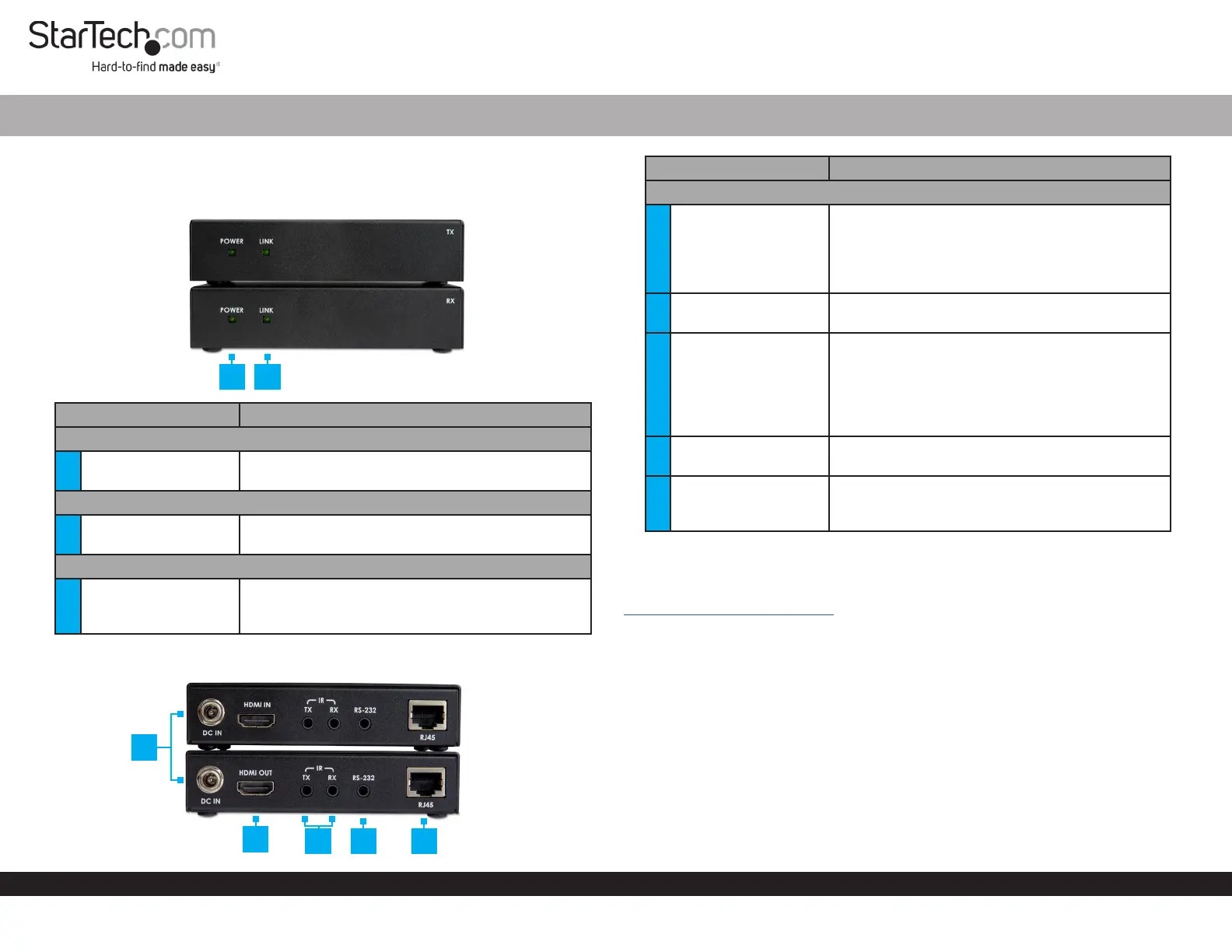

Product Diagram (ST121HD20L)

Transmitter and Receiver Front View

ComponentFunction

Transmitter and Receiver

1Power LED Indicator

• Solid green when the Universal Power Adapter

is connected

Transmitter

2Link LED Indicator

• Solid green when the HDMI Source Device is

connected

Receiver

2Link LED Indicator

• Solid green when the CAT6 Cable is connected

and the HDMI Source Device Video Signal is

active

Transmitter and Receiver Rear View

HDMI over CAT6 Extender | 4K 60Hz

PortFunction

Transmitter and Receiver

3DC IN Ports

• Power the Transmitter and Receiver

• Secure the Universal Power Adapters into the

DC IN Ports by inserting the Barrel Connectors

on the Universal Power Adapters and turning

the Screw Locks clockwise

4

HDMI IN and OUT

Ports

• Connect an HDMI Source and HDMI Display

Device

5IR TX and RX Ports

• Connect the IR (Infrared) Blasters and

Receivers to control the HDMI Source and

HDMI Display Device from the Transmitter or

Receiver

• Bi-directional to support dierent IR

congurations

6

RS-232 Extension

Ports

• Connect any Serial Device to extend the signal

over CAT6 Cable

7RJ45 Ports

• Connect the CAT6 Cable to extend the signal

from the Source Device to the HDMI Display

Device

Requirements

For the latest requirements and to view the full User Manual, please visit

www.startech.com/ST121HD20L.

• HDMI Source Device x 1

• HDMI Display Device x 1

• CAT6 Cable x 1

• (Optional) Surface for Mounting x 1

Installation

Installing the HDMI Transmitter and Receiver

1. Position the Transmitter near the HDMI Source Device.

2. Connect an HDMI Cable to the HDMI Source Device andto the HDMI IN Port on

the back of the HDMI Transmitter.

4

5

67

12

3
