Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: May 6, 2024

For additional self-service support options and community forums, please visit: www.StarTech.com/support

Product ID

UNISLDSHF19

Product Information

For the latest manuals, product information, technical specications, and declarations of

conformance, please visit: www.StarTech.com/UNISLDSHF19

Requirements

• Phillips Head Screwdriver

• (Optional) Cage Nut Tool

Package Contents

• Sliding Shelf x 1

• M6 Screws x 8

• M6 Cage Nuts x 8

• Quick-Start Guide x1

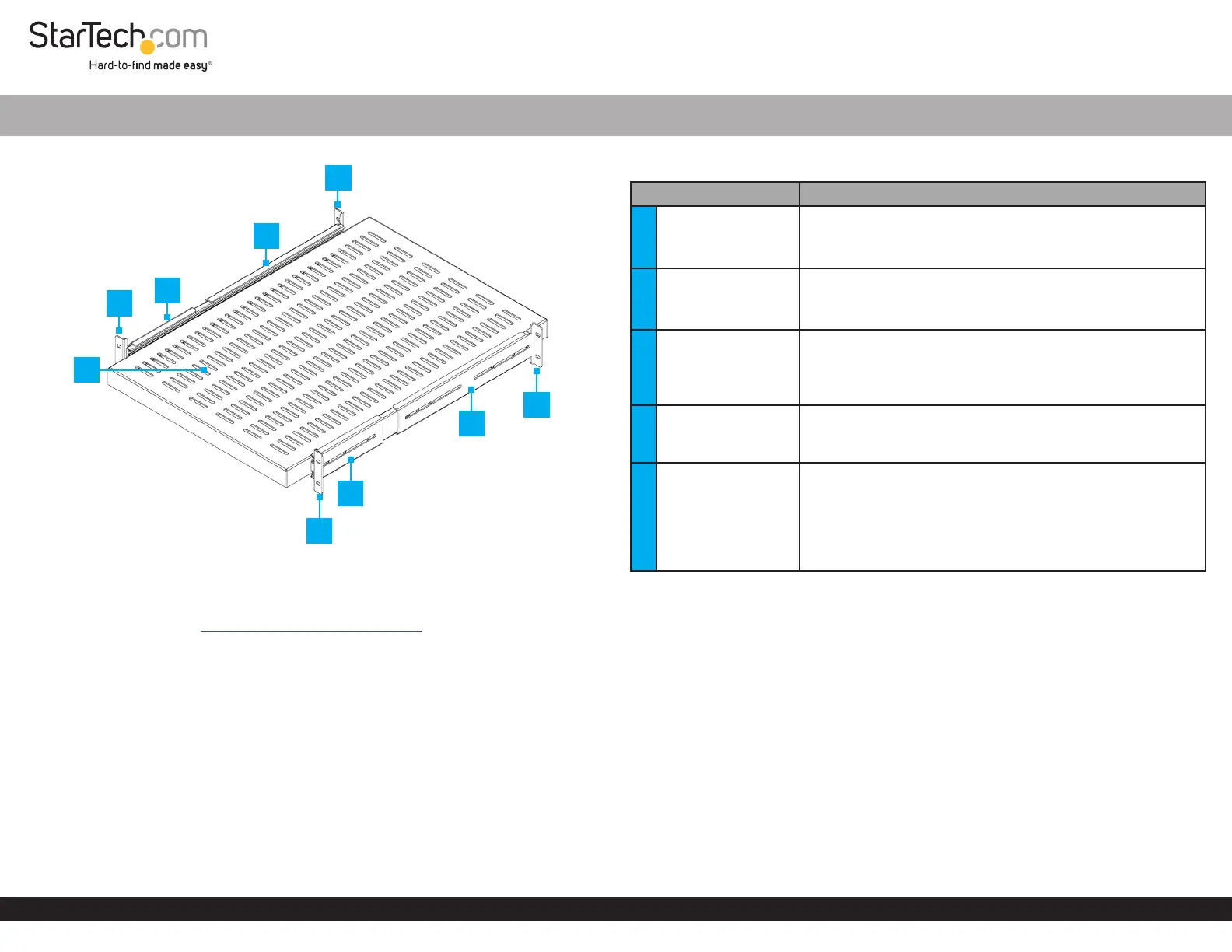

2U Universal Sliding Server Rack Shelf

ComponentFunction

1

Rail Assembly

Mounting Holes

• Mount the Sliding Shelf to the 4-Post Rack

2Rear Brackets x 2

• Used to attach the Sliding Shelf onto the Rear Mounting

Posts of a Rack

3Front Brackets x 2

• Used to attach the Sliding Shelf onto the Front

Mounting Posts of a Rack

4Shelf Surface• Place Rack Equipment

5

Release Levers x 2

(Not Shown)

• Located on both sides of the Sliding Shelf

• Allow to release the locking mechanism to retract or

remove the Sliding Shelf from the Rails

• The Release Levers operate in opposite directions. One

moves Down and the other Up

• See Figure 2 in Installation

Warnings!

Read the entire Quick-Start Guide and ensure the instructions are fully understood

before assembling and using this product.

Before adding equipment to this product, ensure this product has been properly

mounted.

Do not attempt to operate or install this product if parts are missing or damaged.

Ensure the weight of the equipment does not exceed the weight capacity of this

product. If the weight capacity is exceeded, personal injury or damage to the

equipment is possible. This product can support the following weight: up to 50 lb

(22.7 kg).

All four mounting points must be properly secured to each of the posts on a four-post

rack.

Never exceed the maximum mounting depth specication for this shelf: 29.3in

(744mm).

4

3

3

2

2

1

1

1

1
