MBI-6128R-T2

MBI-6128R-T2X

MicroBlade Module

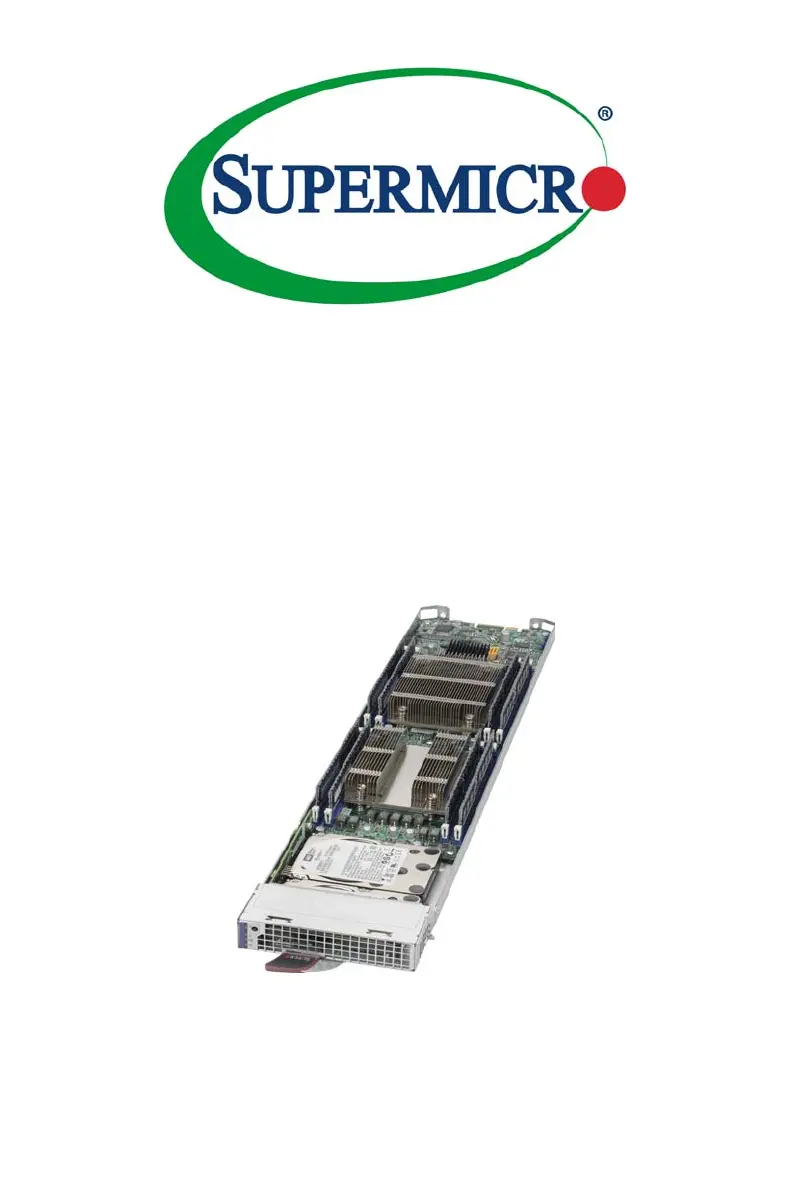

User’s Manual

Revison 1.0b

MBI-6128R-T2/T2X Blade Server Module User’s Manual

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The

vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no

commitment to update or to keep current the information in this manual, or to notify any person or

organization of the updates. Please Note: For the most up-to-date version of this manual, please see

our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described

in this manual at any time and without notice. This product, including software and documentation, is the

property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction

of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,

SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE

THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY HARDWARE,

SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF

REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE,

SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara

County in the State of California, USA. The State of California, County of Santa Clara shall be the

exclusive venue for the resolution of any such disputes. Super Micro's total liability for all claims will not

exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital

device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the manufacturer’s instruction manual, may cause harmful interference with radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference,

in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning

applies only to products containing CR (Manganese Dioxide) Lithium coin cells. Perchlorate

Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate for further

details.

WARNING: HANDLING OF LEAD SOLDER MATERIALS USED IN THIS PRODUCT MAY

EXPOSE YOU TO LEAD, A CHEMICAL KNOWN TO THE STATE OF CALIFORNIA TO

CAUSE BIRTH DEFECTS AND OTHER REPRODUCTIVE HARM.

Manual Revison 1.0b

Release Date: March 31, 2016

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy

any part of this document.

Information in this document is subject to change without notice. Other products and companies referred

to herein are trademarks or registered trademarks of their respective companies or mark holders.

Printed in the United States of America

Produktspecifikationer

Varumärke:	Supermicro
Kategori:	moderkort
Modell:	MBI-6128R-T2X
Vikt:	1540 g
Bredd:	125.48 mm
Djup:	529.28 mm
Höjd:	30.48 mm
LED-indikatorer:	Fault, HDD, Network, Power
Minneskapacitet:	72 bit
Maximalt internminne:	256 GB
Säkerhet:	EN60950-1, CE, TUV
Minnesspänning:	1.2 V
Antal processorer som stöds:	2
Intel® Xeon-serien:	E5-2600
Antal lagringsenheter som stöds:	2
Minnestyper som stöds:	DDR4-SDRAM
BIOS-typ:	EEPROM
ACPI-version:	5.0
Produktens färg:	Grey, Silver
Vikt inkl. förpackning:	2590 g
Typ av ethernet-gränssnitt:	10 Gigabit Ethernet
Datahastighet för Ethernet-LAN:	10000 Mbit/s
Antal LAN (RJ-45) anslutningar:	2
Temperatur vid drift:	10 - 35 ° C
Temperaturintervall (förvaring):	-40 - 70 ° C
Intervall för relativ operativ luftfuktighet:	8 - 90 %
Fuktighet (förvaring):	5 - 95 %
processorsockel:	LGA 2011 (Socket R)
Nätverksansluten (Ethernet):	Ja
BIOS-funktioner:	Plug & Play, SMBIOS 2.7.1, UEFI
RAID-nivåer:	0, 1
BIOS minnesstorlek:	128 mbit
Moderkortets chipset:	Intel® C612
Mus inkluderad:	Nej
Tangentbord inkluderat:	Nej
Storlekar som stöds på lagringsenhet:	2.5 "
Lagringsenhetsgränssnitt som stöds:	Serial ATA III
ECC:	Ja
Antalet DIMM-platser:	8
Minnets formfaktor:	288-pin DIMM
Maximalt RDIMM minne:	256 GB
Stöd för RDIMM klockfrekvenser:	1066,1600,2133,2400 MHz
