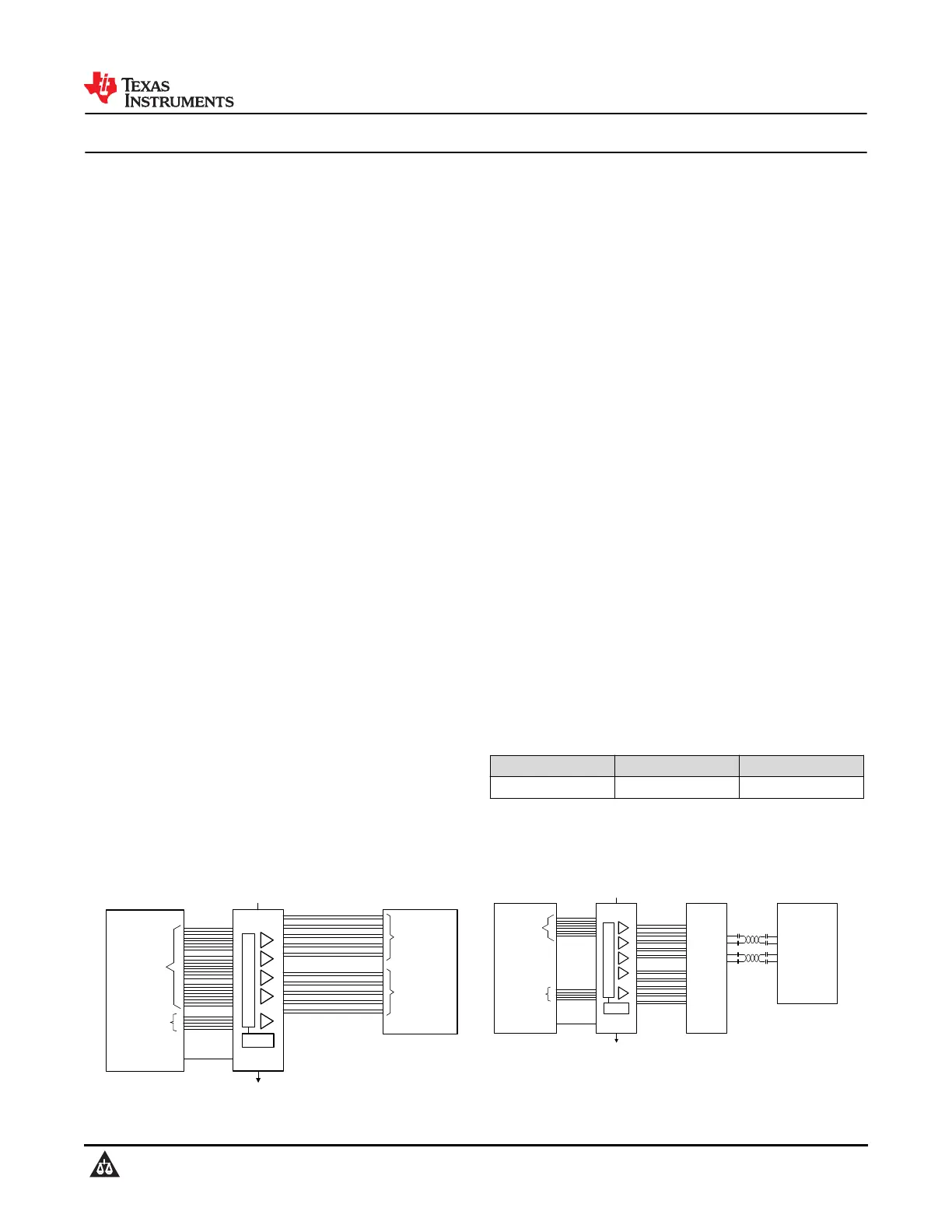

DS90C189-Q1 Low Power, 1.8-V RGB-to-Open LDI (LVDS) Bridge

1 Features

•AEC-Q100 Qualified for Automotive Applications

with the Following Specifications:

–Device Temperature Grade 2: –40°C to +105°C

Ambient Operating Temperature

–Device HBM ESD Classification Level ±8 kV

–Device CDM ESD Classification Level ±750 V

•150 mW Typical Power Consumption at 185 MHz

(SIDO Mode)

•Drives QXGA and WQXGA Class Displays

•Two Operating Modes:

–Single Pixel In, Single Pixel Out (SISO): 105

MHz Maximum

–Single Pixel In, Dual Pixel Out (SIDO): 185

MHz Maximum

•Supports 24-Bit RGB

•Supports 3D+C, 4D+C, 6D+C, 6D+2C, 8D+C, and

8D+2C LVDS Configurations

•Compatible With FPD-Link Devices

•Operates Off a Single 1.8-V Supply

•Interfaces Directly With 1.8-V LVCMOS

•Less Than 10 mW Power Consumption in Sleep

Mode

•Spread Spectrum Clock Compatible

•Small 9 mm × 9 mm × 0.9 mm 64-Pin VQFN

Package

2 Applications

•Camera Monitor Systems (CMS)

•Automotive Head Units

•Smart Mirrors

•Cluster

3 Description

The DS90C189-Q1 is a low power bridge for

automotive applications that reduces the size of the

RGB interface between the host GPU and the Display.

The DS90C189-Q1 Bridge is designed to support

single pixel data transmission between a Host and a

Flat Panel Display at resolutions of up to QXGA

(2048x1536) at 60 Hz. The transmitter converts up to

24 bits (Single Pixel 24-bit color) of 1.8-V LVCMOS

data into two channels of 4 data + clock (4D+C)

reduced width interface LVDS compatible data

streams.

DS90C189-Q1 supports 2 modes of operation.

•In single pixel mode in/out mode, the device can

drive up to SXGA+ (1400x1050) at 60 Hz. In this

mode, the device converts one bank of 24-bit RGB

data to a one channel 4D+C LVDS data stream.

•In single pixel in / dual pixel out mode, the device

can drive up to WUXGA+ (1920x1440) at 60 Hz. In

this configuration, the device provides single-to-

dual pixel conversion and converts one bank of 24-

bit RGB data into two channels of 4D+C LVDS

streams at half the pixel clock rate.

For all the modes, the device supports 24bpp color.

The DS90C189-Q1 is offered in a small 64 pin QFN

package and features single 1.8 V supply for minimal

power dissipation.

Device Information

(1)

PART NUMBERPACKAGEBODY SIZE (NOM)

DS90C189-Q1VQFN (64)9.00 mm × 9.00 mm

(1)For all available packages, see the order addendum at the

end of the data sheet.

4 Typical Application Diagrams

DS90C189-

Q1

1.8 V

L

A

T

C

H

&

P

2

S

PLL

Single Pixel

R[7:0] G[7:0]

B[7:0]

HS

VS

DE

GPO/CNTL (L/R)

PCLK

PDB

LVDS

4D+C

(odd pixel)

LVDS

4D+C

(even pixel)

Display (TCON)

GPU

1.8 V LVCMOS

(24 bit RGB + HS/VS/DE)

2 Channels FPD-Link (LVDS)

(4 Data + Clock)

Copyright © 2017, Texas Instruments Incorporated

DS90C189-

Q1

1.8 V

L

A

T

C

H

&

P

2

S

PLL

Single Pixel

R[7:0] G[7:0]

B[7:0]

HS

VS

DE

GPO/CNTL (L/R)

PCLK

PDB

FPD-Link III

Interface

Display (TCON)

GPU ± Jacinto 6

1.8 V LVCMOS

(24 bit RGB + HS/VS/DE)

2 Channels OLDI (LVDS)

(4 Data + Clock)

Copyright © 2017, Texas Instruments Incorporated

DS90UB947

-Q1 SER

2 Lanes FPD-Link III

DOUT0+

DOUT0-

DOUT1+

DOUT1-

RIN0+

RIN0-

RIN1+

RIN1-

www.ti.com

DS90C189-Q1

SNLS584B – JUNE 2018 – REVISED SEPTEMBER 2020

Copyright ©2020 Texas Instruments Incorporated

Submit Document Feedback

1

DS90C189-Q1

SNLS584B – JUNE 2018 – REVISED SEPTEMBER 2020

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
